• Model NO.：TB-8x1-M16x1.5
• Colour：Yellow
• Use：Truck Air Brake Line
• Transport Package：Carton
• Specification：SAE J2044
• Trademark：Standards
• Origin：Zhejiang Province, China
• HS Code：3917400000
• Production Capacity：3000PCS,Day

Basic Info.

Model NO. TB-8x1-M16x1.5 Colour Yellow Use Truck Air Brake Line Transport Package Carton Specification SAE J2044 Trademark Standards Origin Zhejiang Province, China HS Code 3917400000 Production Capacity 3000PCS/Day

Product Description

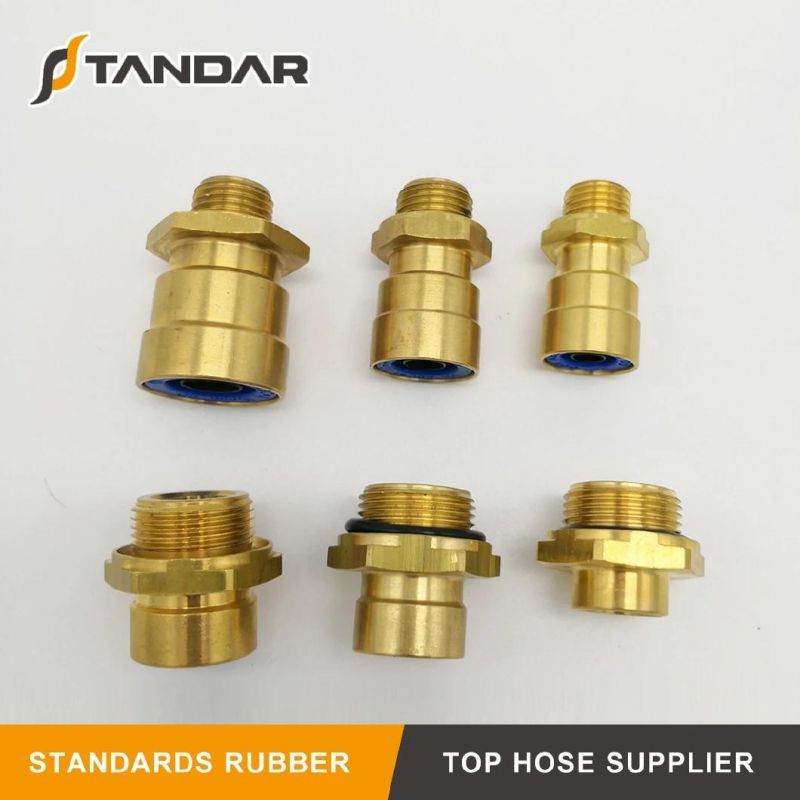

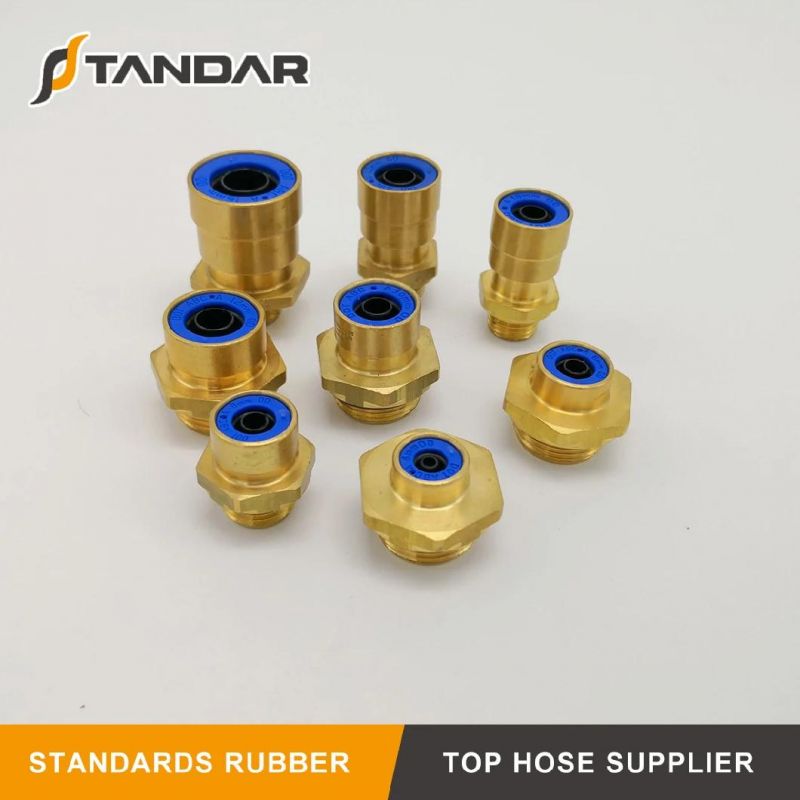

 Push In Coupling Pneumatic Fittings For Truck Air Brake 901 08 012

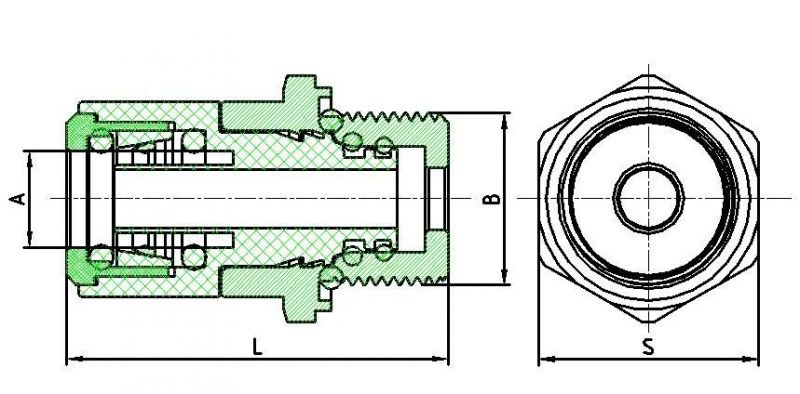

Serial number	Type	TUBE SIZE	A	B	L	S	OEM
1	TB-6x1-1/8"	6x1-1/8"	Φ6	1/8"	47	18	901-06-049
2	TB-6x1-M12x1.5	6x1- M12x1.5	Φ6	M12x1.5	47	18	901-06-012
3	TB-8x1-1/8"	8x1-1/8"	Φ8	1/8"	47	18	901-08-059
4	TB-8x1-M12x1.5	8x1- M12x1.5	Φ8	M12x1.5	47	18	901-08-012
5	TB-8x1-M14x1.5	8x1- M14x1.5	Φ8	M14x1.5	47	18	901-08-014
6	TB-8x1-M16x1.5	8x1- M16x1.5	Φ8	M16x1.5	47	22	901-08-016
7	TB-8x1-M18x1.5	8x1- M18x1.5	Φ8	M18x1.5	47	24	901-08-018
8	TB-8x1-M22x1.5	8x1- M22x1.5	Φ8	M22x1.5	47	28	901-08-022
9	TB-10x1.25-M14x1.5	10x1.25- M14x1.5	Φ10	M14x1.5	47	18	901-10-014
10	TB-10x1.25-M16x1.5	10x1.25- M16x1.5	Φ10	M16x1.5	47	22	901-10-016
11	TB-10x1.25-3/8"	10x1.25-3/8"	Φ10	3/8"	47	22	901-10-051
12	TB-10x1.25-M18x1.5	10x1.25- M18x1.5	Φ10	M18x1.5	47	24	901-10-018
13	TB-10x1.25-M22x1.5	10x1.25- M22x1.5	Φ10	M22x1.5	47	28	901-10-122
14	TB-12x1.5-M16x1.5	12x1.5- M16x1.5	Φ12	M16x1.5	47	22	901-12-016
15	TB-12x1.5-M18x1.5	12x1.5- M18x1.5	Φ12	M18x1.5	47	24	901-12-018
16	TB-12x1.5-3/8"	112x1.5-3/8"	Φ12	3/8"	47	22	901-12-051
17	TB-12x1.5-M22x1.5	12x1.5- M22x1.5	Φ12	M22x1.5	47	28	901-12-022
18	TB-14x1.5-M16x1.5	14x1.5- M16x1.5	Φ14	M16x1.5	47	22	901-14-016
19	TB-14x1.5-M18x1.5	14x1.5- M18x1.5	Φ14	M18x1.5	47	24	901-14-018
20	TB-14x1.5-M22x1.5	14x1.5- M22x1.5	Φ14	M22x1.5	47	28	901-14-022
21	TB-16x2-M18x1.5	16x2- M18x1.5	Φ16	M18x1.5	47	24	901-16-018
22	TB-16x2-M22x1.5	16x2- M22x1.5	Φ16	M22x1.5	47	28	901-16-022
23	FT-16x2-M16x1.5	16x2- M16x1.5	Φ16	M16x1.5	47	24	901-16-016

 Automotive Pneumatic System Coupling
  Standards rubber has, in cooperation with leading commercial vehicle manufacturers, developed and produced an air coupling system based on composite material and brass.  pneumatic system coupling system is de- veloped for use with Polyamide and Hytrel tubing for the compressed air circuits on commercial vehicles, and is fulfilling all global requirements.

1.The carefully developed, matured and thoughtful  pneumatic system couplings sys- tem consists of the following elements:
• Push-in couplings
•Swivels copper
•Bulkhead couplings
• Building Blocks
•Rotolock
•Test Points
•Hose nipples,hose connector
•Accessories

2.This new generation of couplings, based on composite materials in combination with leading coupling technology. Brass components secure structural integrity in highly stressed areas.One global system, fulfilling different engineering philosophies within truck, bus, trailer, off-road applications.
Features & Benefits:
•Design flexibility
•Full releasability
•Integrated safety
•System cost reduction
•One global system
•Up to 83 % weight reduction

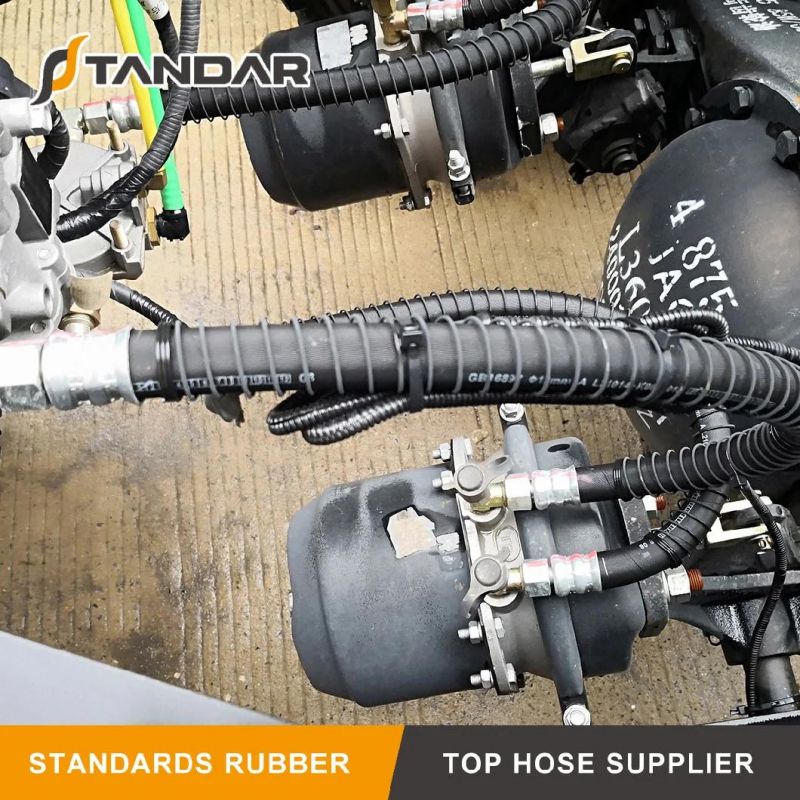

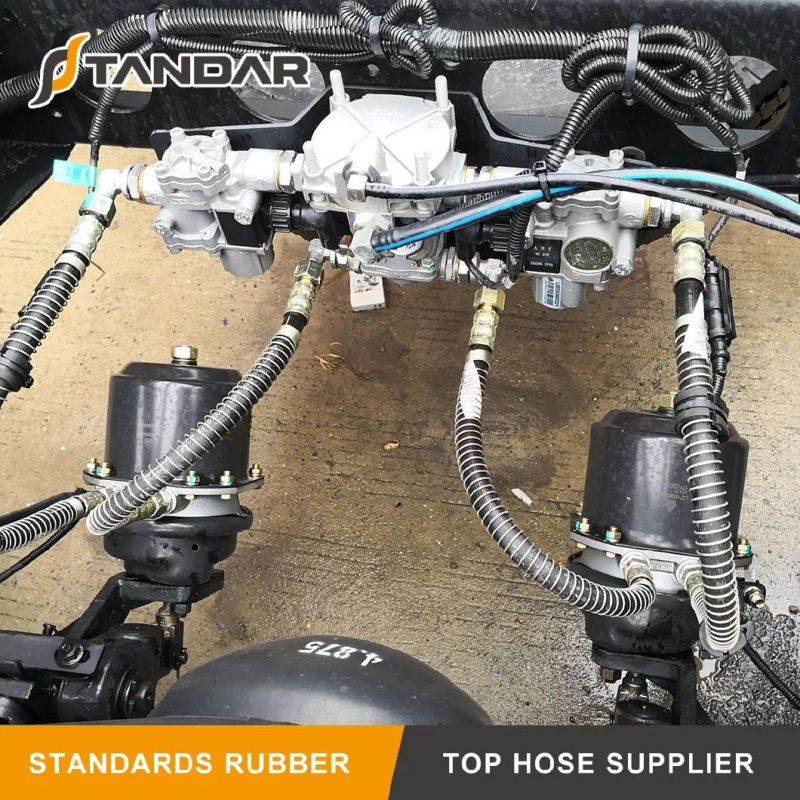

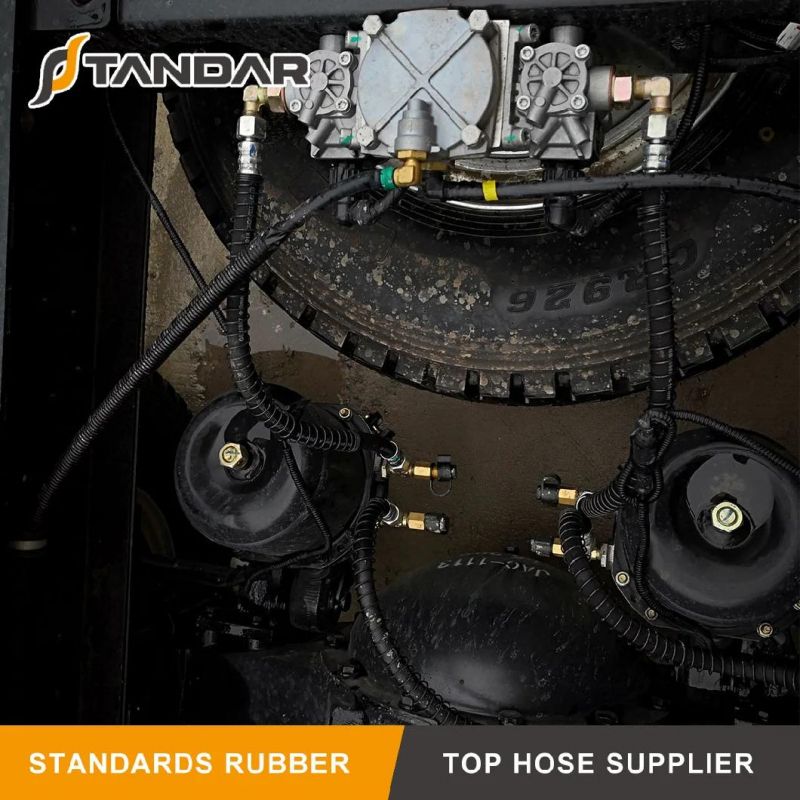

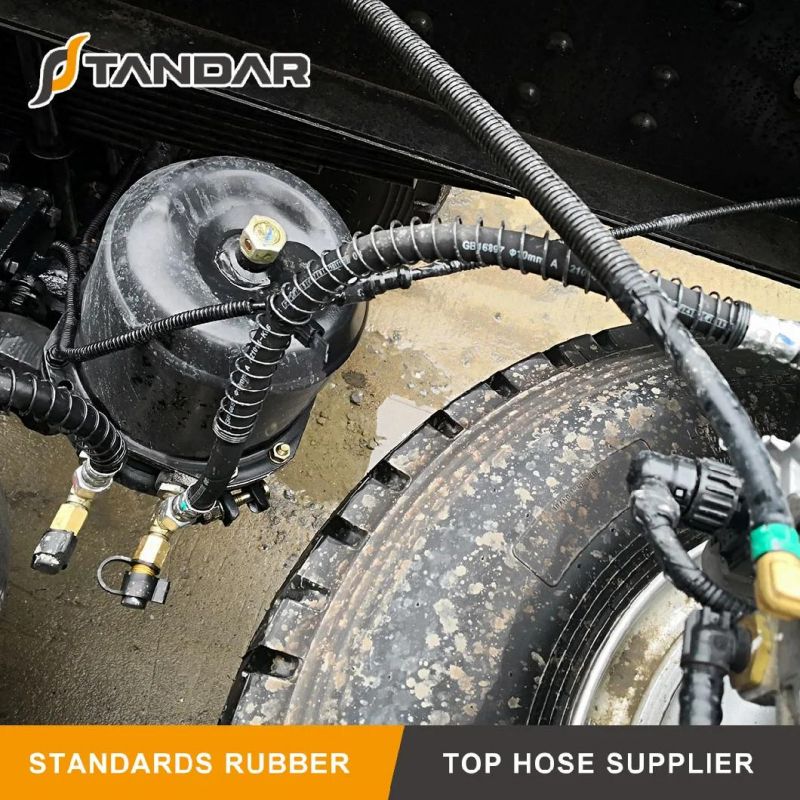

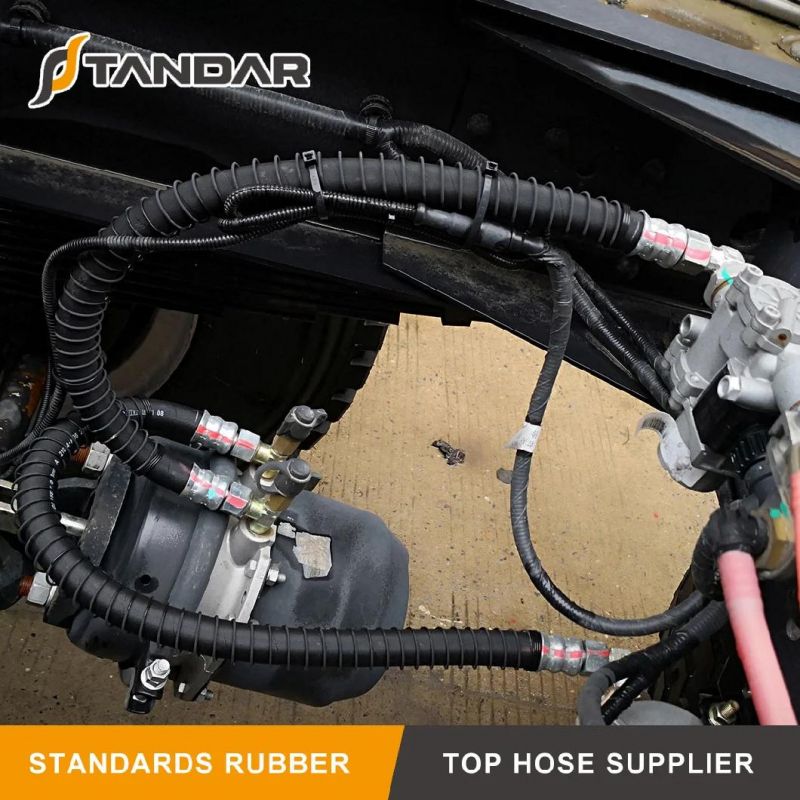

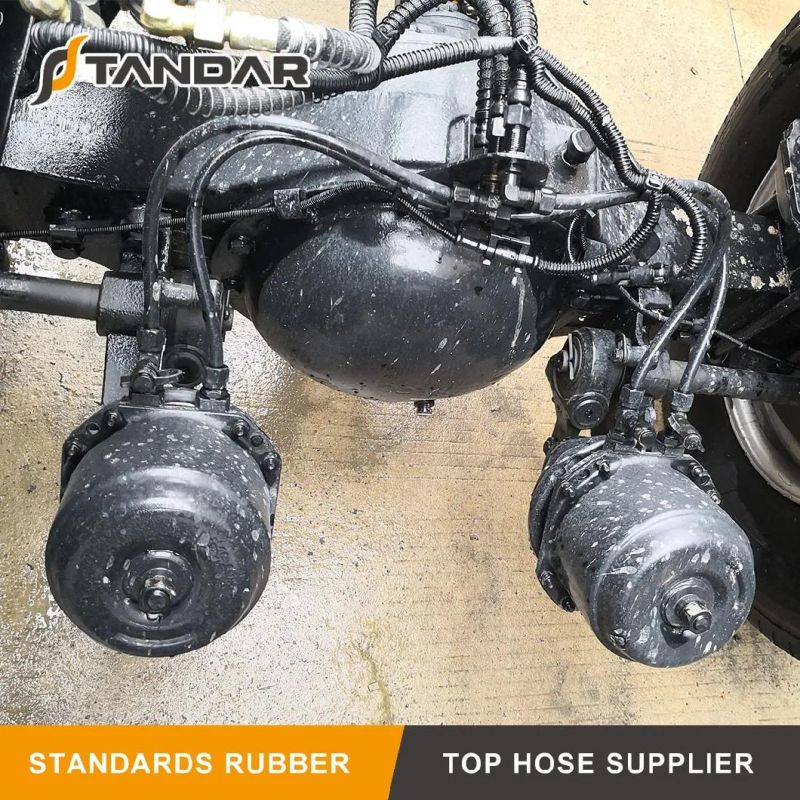

3.Application Field Photos Of Pneumatic System Coupling
