L Type One Way Leak off Connector for Fuel Injector Return Line Ford Transit
Shijiazhuang Standards Rubber Products Trading Co., Ltd.- Standard：SAE
- Material：Plastic
- Connection：Female
- Surface Treatment：Without Treatment
- Head Type：Round
- Use：Diesel Leak off Pipe
Base Info
- Model NO.：TB-H-001
- Colour：Black
- Transport Package：Carton
- Specification：SAE J2044
- Trademark：Standards
- Origin：Zhejiang, China
- HS Code：3917400000
- Production Capacity：3000PCS,Day
Description
Securing RingPA12 GF30 ARKEMA EVONIK Fuel,Steam,Urea,A/C , Power Steering System PA6/6T GF30 BASF HT Fuel PA66GF 30/35 BASF Fuel Steam O Ring FKM/FVMQ/
HNBR/AEM HUTCHINS ON GMORS Fuel,Steam,Urea,A/C Power Steering System
2.The design and production
Innovative, secure and quickit , Our quick connect fittings made of synthetic material are suitable for most media carrying lines . Be it fuel , oil vapor , water cooling and air carrying lines . We offer the idea means of connection . These quick connectors are specially suited to being matched up with the automotive pipe system
the design and productionof quick connector are strictly accord with SAE J2044-2009 Quick
connect coupling specification for liquid fuel and vapor or emissions systems . If the product does not meet customer needs , we can design and manufacture according to customers requirements . plug-in and sel-locking structure enables connect and disconnect more quick and easier . The space required for the operation is only the width of a finger on both sides . These features ensure quicker connecto can be high-density arrangement and an increase in customer design flexibility
3.Security of quick connector
Quick connector with double sealing rings radial sealing structure , modified rubber o-rings used , mainly for fluid The physics chemistry , custom , anti-aging , corrosion , and swelling ;
outer o-rings are separated by the intermediate spacer ring . Coresponding space on the two
sealing ring , rubber substrate bonding does not occur , the outer synthetic rubber o-rings used , Increased mechanical properties. preventing air aging . Sealing ring and spacer ring through the outer ring of elastic clamping device securely fastened in Shell will not result in phenomena such as ring falls of , and shift . Great seal security is guaranteed
4.Working environment of quick connector
Gasoline and diesel fuel delivery systems , Ethanol , methanol or natural gas delivery systems or their vapor venting or evaporative emission control systems
5.Quick Connector advantages
· Fast assembly without tool -> time and cost reduction
· robot assembly possible -> automated processes
· compact building method -> employment in extremely close installation conditions possible
· integrated seal - > optimal tightness
6.Quick Connector Applications in the automotive industry
Can be used to make both line-to-line or line-to-equipment connections.
· Fuel feed / return lines
· tank breathing
· Ventilation lines
· Oil cooler lines
· Vacuum control lines
7.The Type of Quick Connector

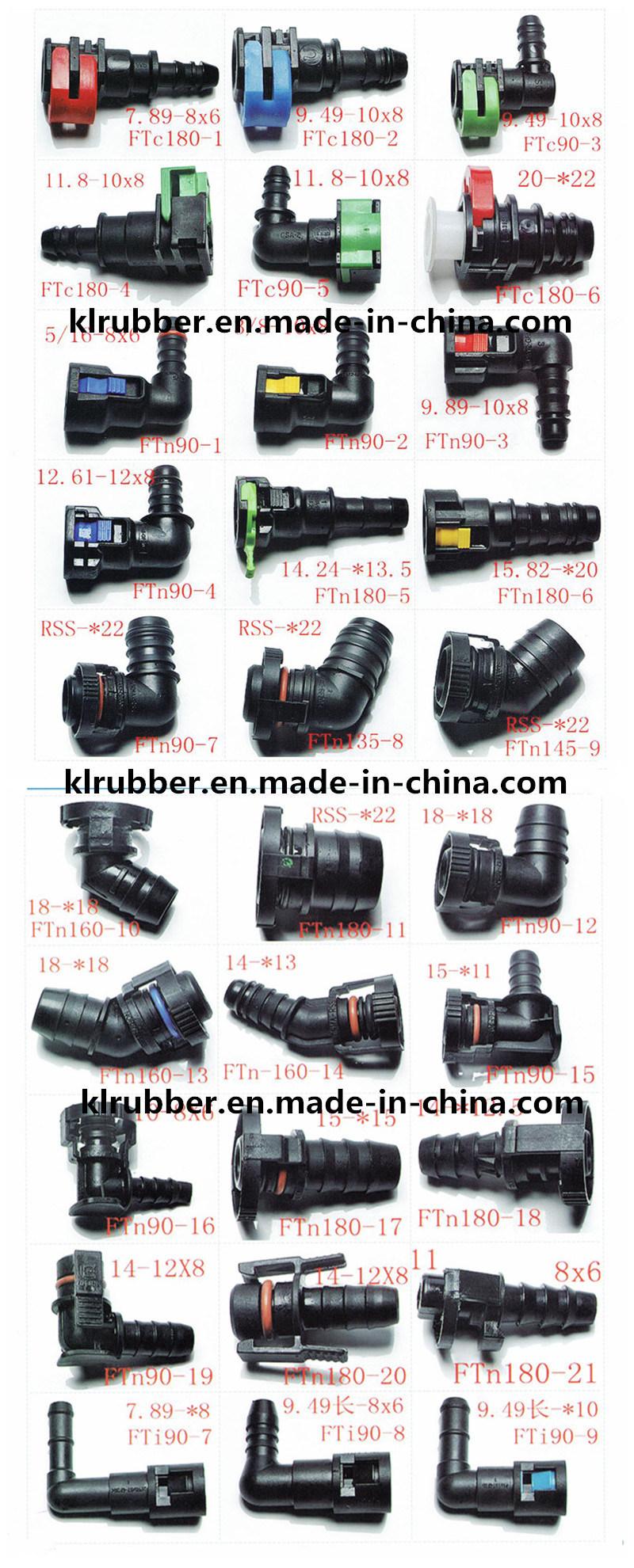

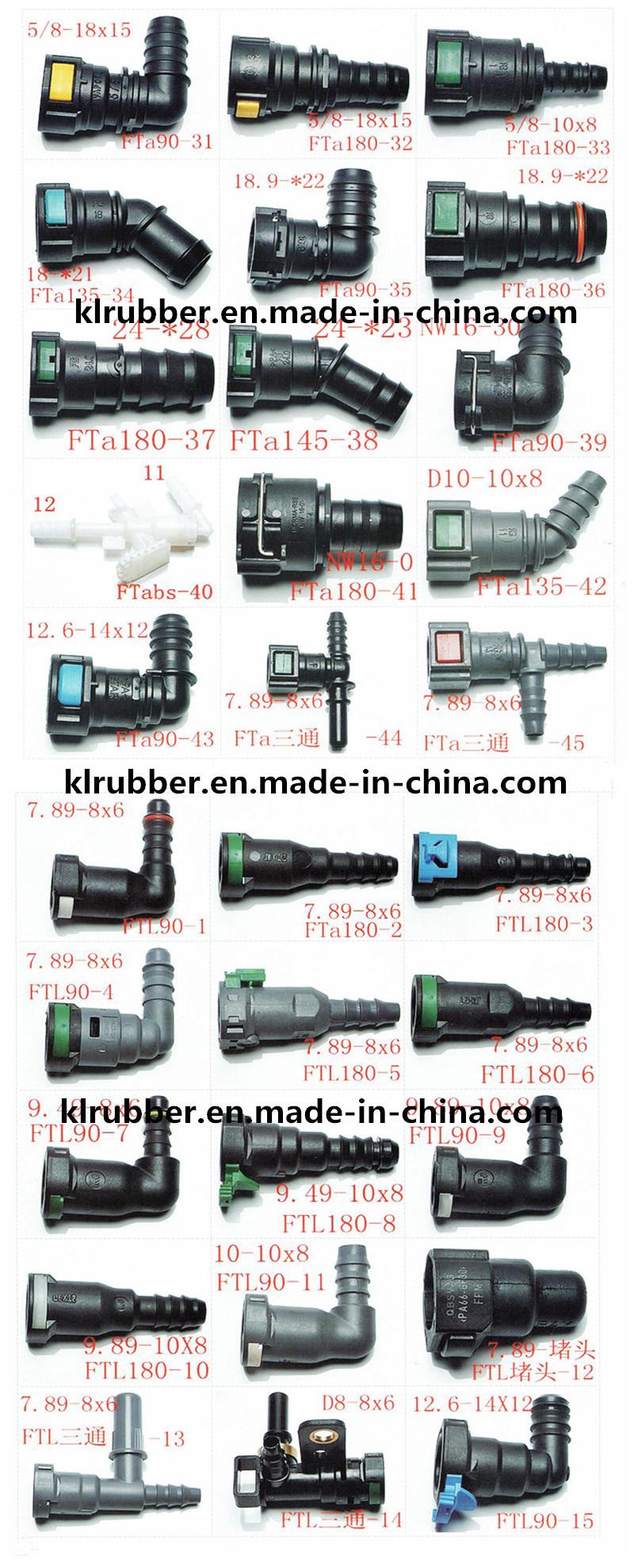

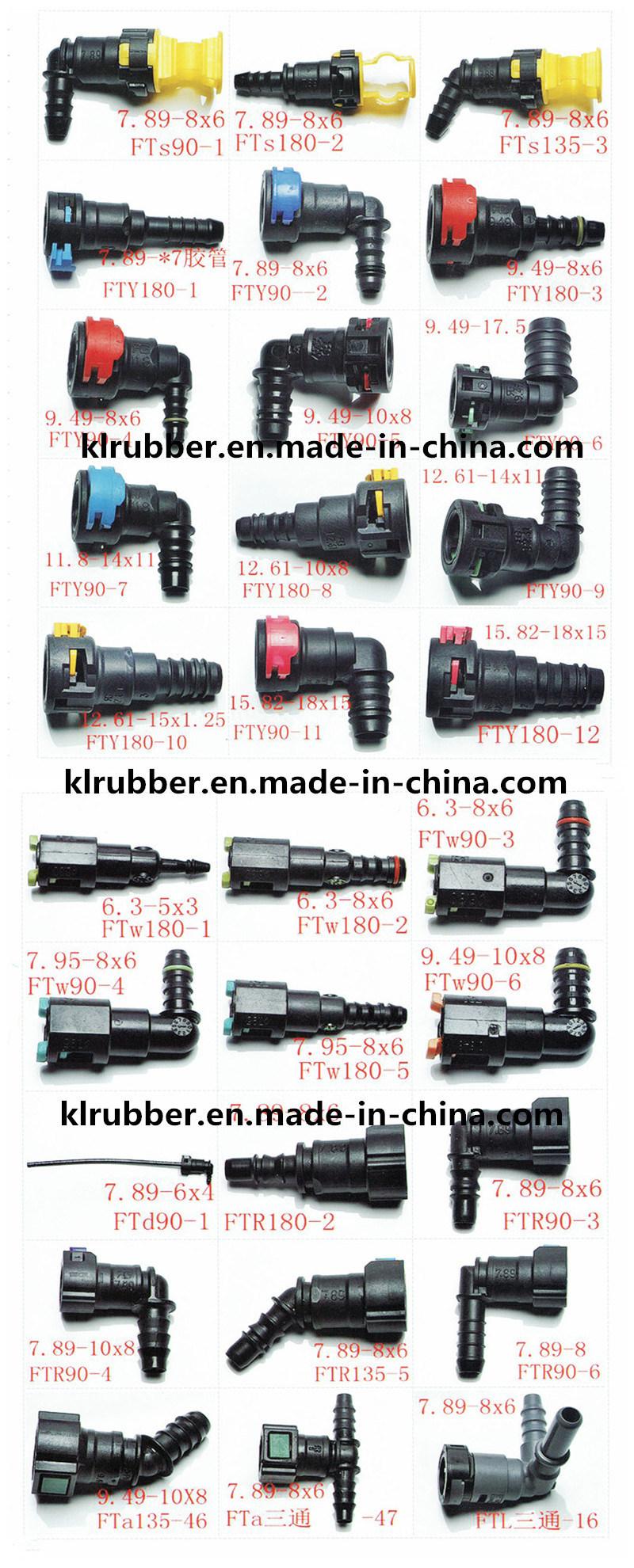

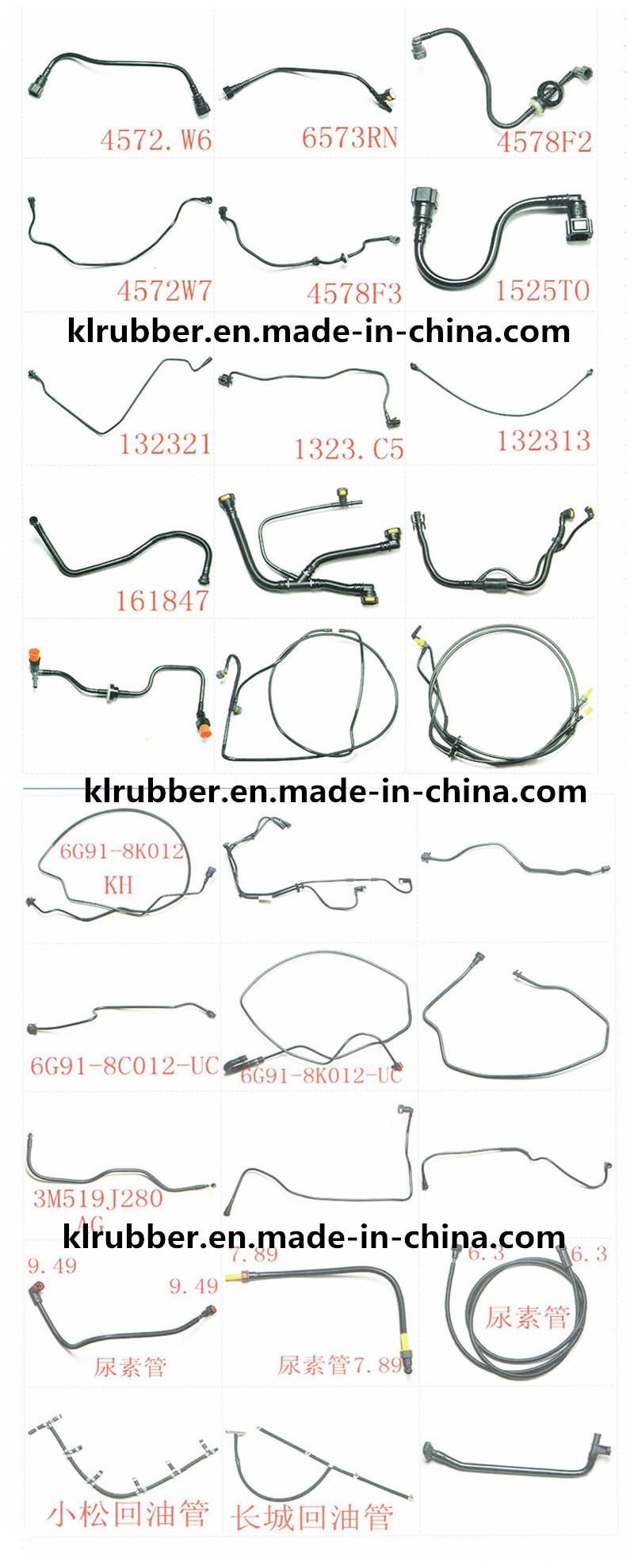

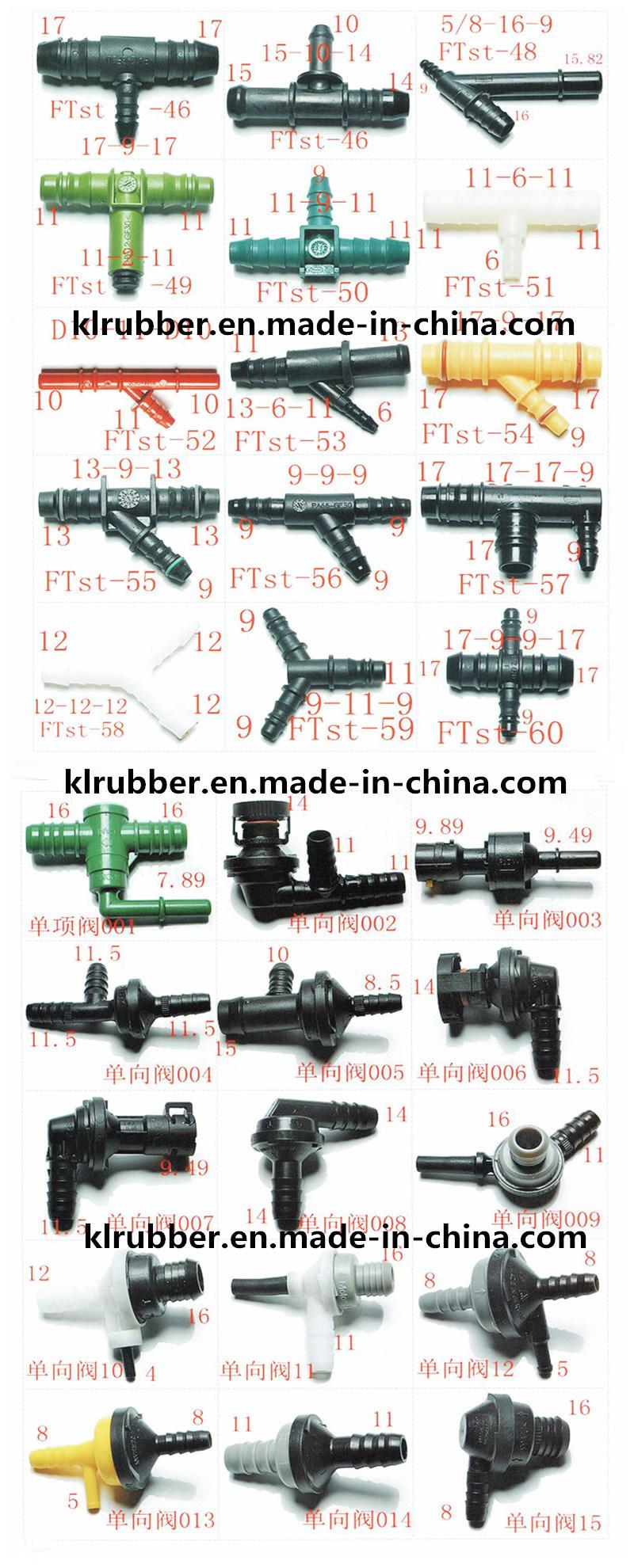

Our Fuel Line Quick Connector Catalog
Contact us:
Miss Vivien
Export Manager
If you are interested in our products or want to know more information about this,pls contact us,the article can be make specially according to your own specifications.
Including: Material, color, wall thickness, length, inner or outer dore diameter and your quantity.
We sincerely welcome partners all over the world to visit us for win-win cooperation!
Our website is : klrubber.en.made-in-china.com
