• Model NO.：KME03-00
• Trademark：SmartSolu
• Origin：China
• HS Code：84818040
• Production Capacity：300000PCS,Year

Basic Info.

Model NO. KME03-00 Trademark SmartSolu Origin China HS Code 84818040 Production Capacity 300000PCS/Year

Product Description

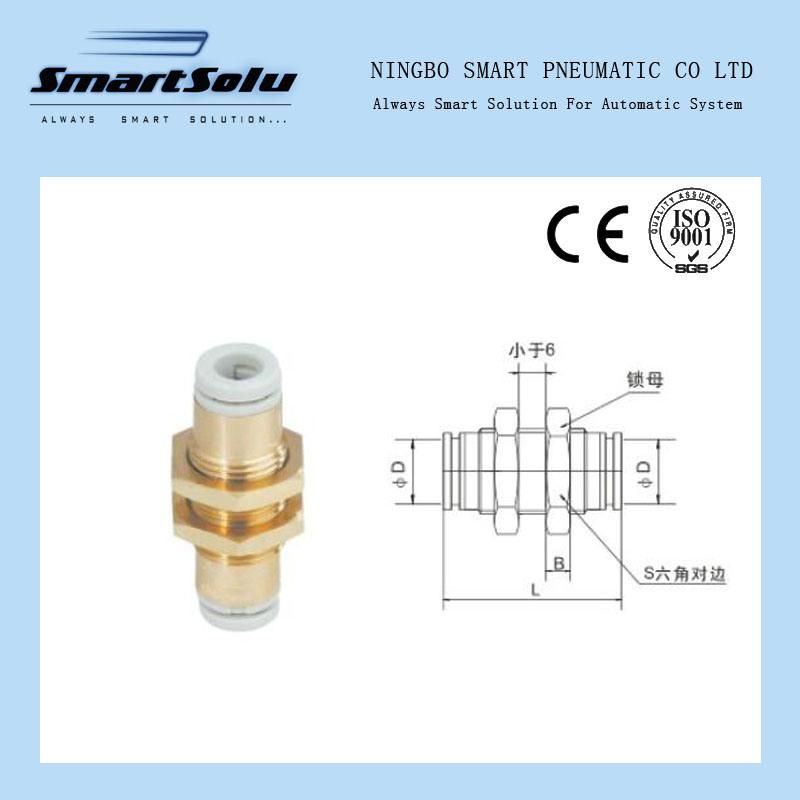

KME Series Pneumatic Straight Quick Connector
Product Description
High quality KME Series Miniature Pneumatic Quick Connector

Release button (Light gray)
Light force for removal
When the fitting is removed from the tubing, the chuck and collet are released, thus preventing
Them from biting into the tube to an unnecessary degree. Unique shape allows easy tube release.

Chuck
Suitable for use with nylon, soft nylon and urethane.
Large retaining force. Has large retaining force.

Seal
Can be used for a wide range of pressures from a low vacuum up to a pressure of 1.0 MPa
The use of a special profile ensures sealing and reduces resistance when the tube is inserted.

Effective when piping in a confined Space.
The body and the threaded portion can rotate (for positioning to some extent).
Stud is electroless nickel plated.
Standard with preapplied thread seal

Optimum piping in less space with 20% reduction of the outside diameter
Thread seal is standard.
Copper-free specifications (With electroless nickel plated. )
Possible to use in vacuum to 100 kPa

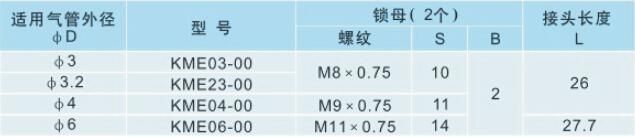

Specifications
Fluid Air/Water
Maximum operating pressure 1.0 MPa
Operating vacuum pressure 100 kPa
Proof pressure 3.0 MPa
Ambient and fluid temperature 5 to 60° C, Water: 0 to 40° C (No freezing)
Thread seal (Standard) With thread seal
Copper/Copper-free (Standard) Brass/Brass parts are all electroless nickel plated.

Principal Parts Material
Body Brass, Brass with electroless nickel plated
Stud C3604BD (Thread portion)
Chuck Stainless steel 304
Release buttonPOM
Seal, O-ring NBR
Gasket Stainless steel 304, NBR
