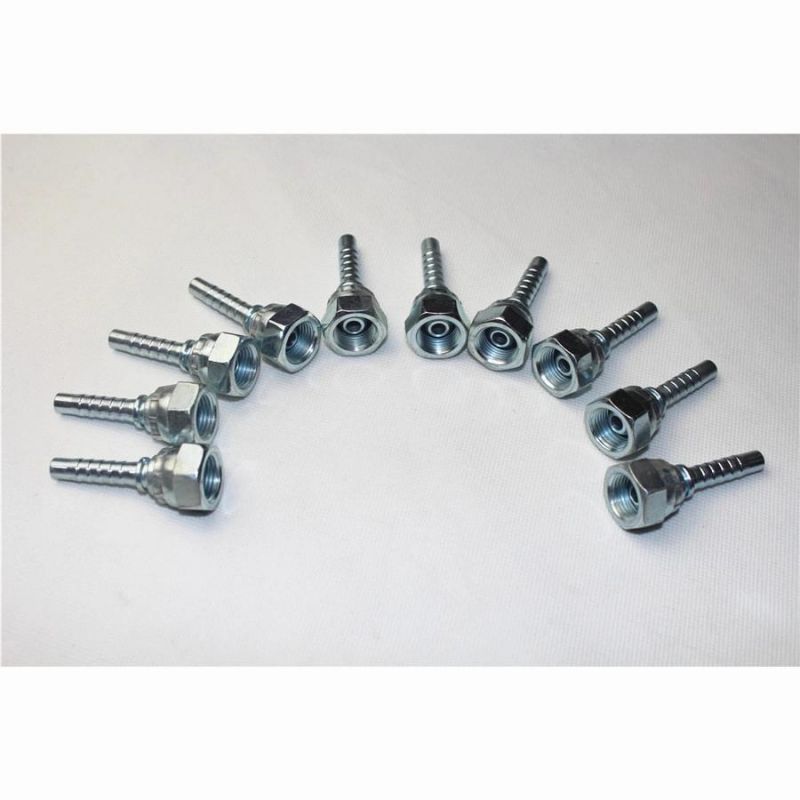

Metric Female Multiseal Female Tube Fittings
Hangzhou Paishun Rubber and Plastic Co., Ltd.- Standard：DIN
- Material：Medium Carbon Steel
- Connection：Female
- Surface Treatment：Galvanized Sheet
- Size：3,16" to 1"
- Color：Silver and Golden
Base Info
- Model NO.：20111
- Packaging：Cartons and Wooden Box
- Sample：Avaliable
- Transport Package：Well Packed by Cartons and Pallet
- Specification：3,16" to 2"
- Trademark：Passion or as per customer′s request
- Origin：Zhejiang
- HS Code：7307990000
- Production Capacity：5, 000 PCS,Day
Description
Part No.Thread E Hose Bore Dimensions DN DASH A C S2 20111-10-03 M10X1 5 03 18 2.5 14 20111-10-04 M10X1 6 04 18 2.5 14 20111-12-04 M12X1.5 6 04 18.5 4 17 20111-12-05 M12X1.5 8 06 18.5 4 17 20111-14-04 M14X1.5 6 04 19.5 4.5 19 20111-14-05 M14X1.5 8 05 19.5 4.5 19 20111-16-04 M16X1.5 6 04 19.5 4.5 22 20111-16-05 M16X1.5 8 05 20 4.5 22 20111-16-06 M16X1.5 10 06 20 4.5 22 20111-18-05T M18X1.5 8 05 21.5 4 22 20111-18-06 M18X1.5 10 06 21.5 4 24 20111-18-08 M18X1.5 12 08 22 4 24 20111-20-06T M20X1.5 10 06 20.5 5.5 24 20111-20-08 M20X1.5 12 08 23 5.5 27 20111-22-06T M22X1.5 10 06 23 5 27 20111-22-08 M22X1.5 12 08 23.5 5 27 20111-22-10 M22X1.5 16 10 24.5 5 27 20111-24-08T M24X1.5 12 08 22 5.5 30 20111-24-10 M24X1.5 16 08 26 5 30 20111-27-08DT M27X1.5 12 08 23 5.5 32 20111-27-10DT M27X1.5 16 10 26 5.5 32 20111-27-12D M27X1.5 20 12 26 5.5 32 20111-27-10T M27X2 16 10 26 7 32 20111-30-12D M30X1.5 20 12 26.5 6 36 20111-30-12 M30X2 20 12 26.5 7 36 20111-36-12T M36X2 20 12 26 7 41 20111-36-14T M36X2 22 14 26 7 41 20111-39-14T M39X2 22 14 28.5 7 46 20111-39-16T M39X2 25 16 30 8.5 50 20111-42-16T M42X2 25 16 29.5 7 46 20111-45-20T M45X2 32 20 31.5 8.5 55 20111-52-20T M52X2 32 20 33 9 60 20111-52-24T M52X2 40 24 33 9 60 20111-64-32T M64X2 50 32 35 14 75
Note: 1 for use with braided hoses, if use with spiral hoses, hose fitting series number is 20112-**-**.

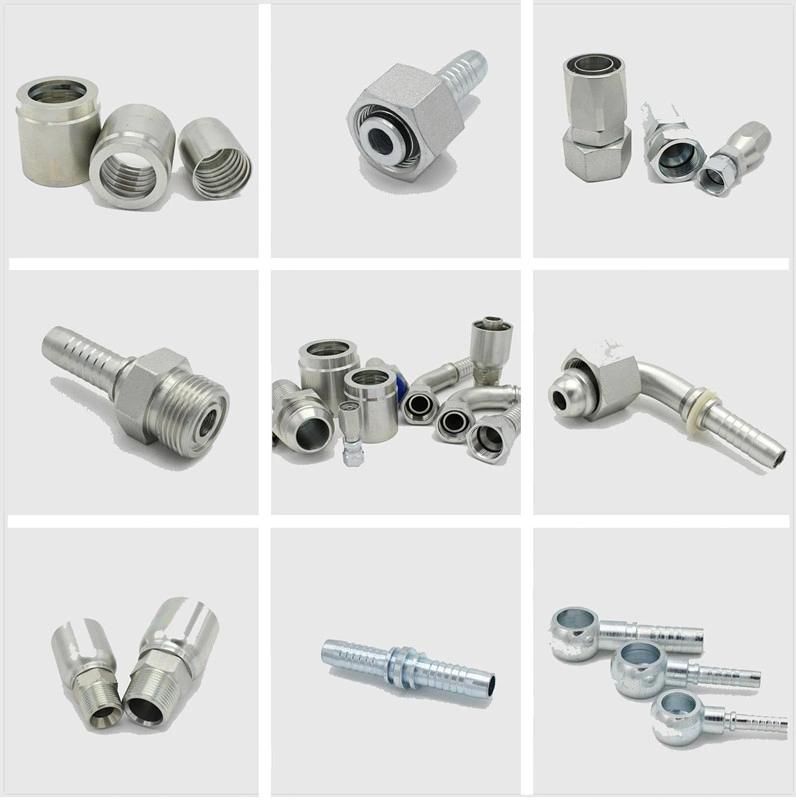

Other hydraulic fittings:

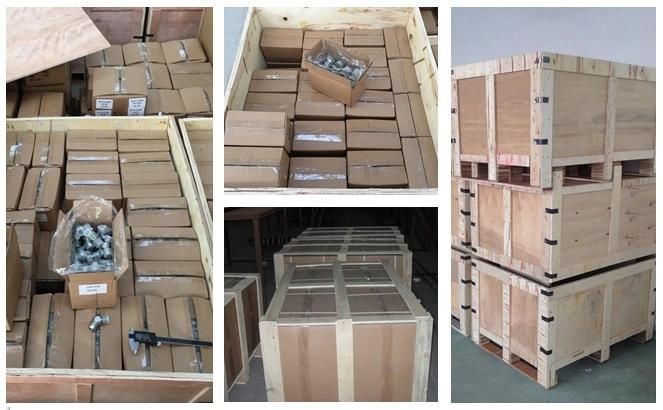

Packageing: Well packed by cartons and free fumigating wooden box.
Strong Packaging of Hydraulic Hose Fitting from PAISHUN

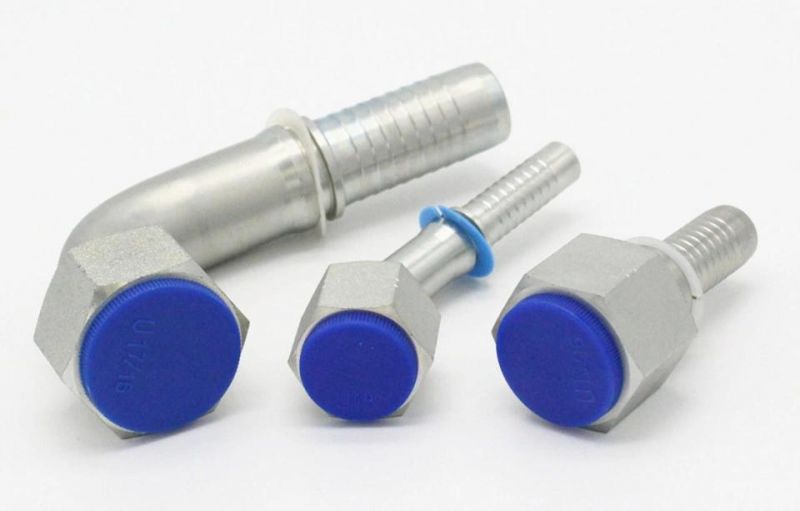

All fittings are with PVC plastic caps and plugs to protect against Dust.

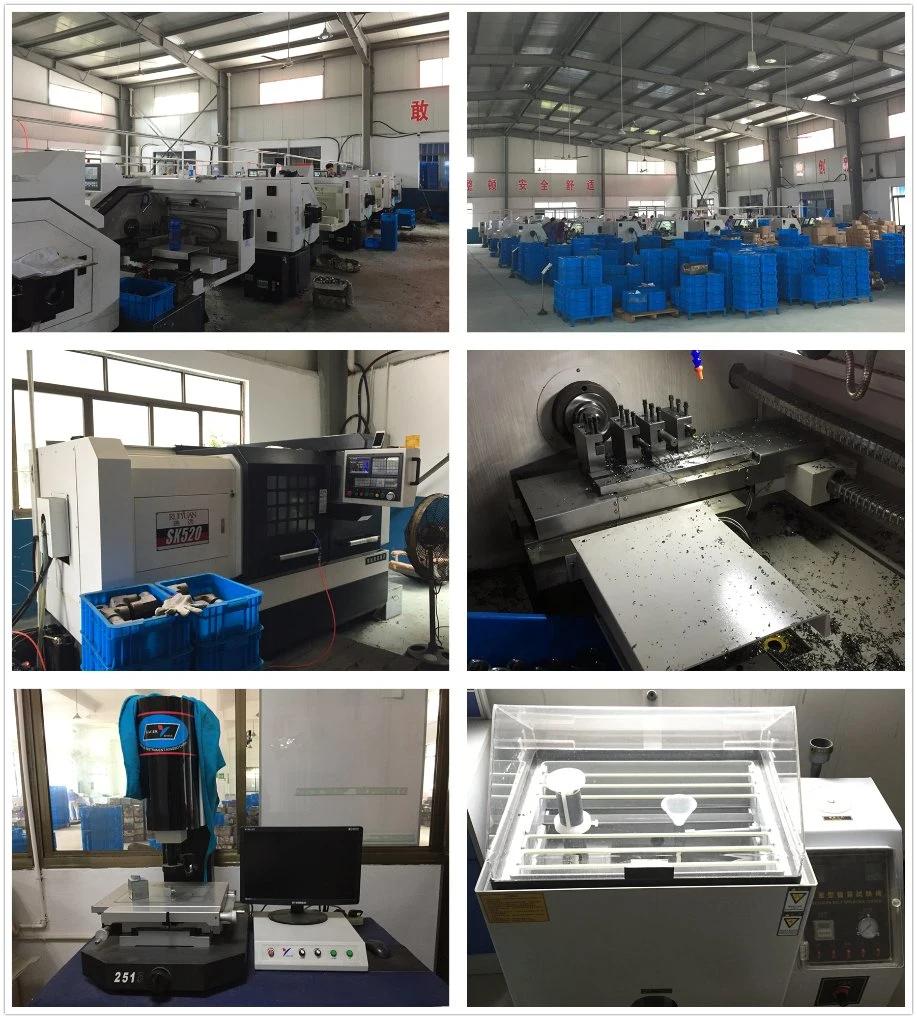

Workshop and Auto CNC Cutting Machine
Note: 1 for use with braided hoses, if use with spiral hoses, hose fitting series number is 20112-**-**.
Other hydraulic fittings:
Packageing: Well packed by cartons and free fumigating wooden box.
Strong Packaging of Hydraulic Hose Fitting from PAISHUN
All fittings are with PVC plastic caps and plugs to protect against Dust.
All fittings are packed in good quality strong cartons ( 5 layers corrugated) with a plastic sheet inside for protection.
In order to guarantee that even in worst sea / maritime weather/transport conditions, the fittings shall arrive at the final destination in perfect condition without corrosion caused by sea salt and humidity.
Normal Measure:
Carton:24cm X 24cm X 16cm
Wooden box: 110cm X 85cm X 75cm
Usually 42 cartons can be packed in a wooden box.
Surely we can be customized the measure according to your request.
