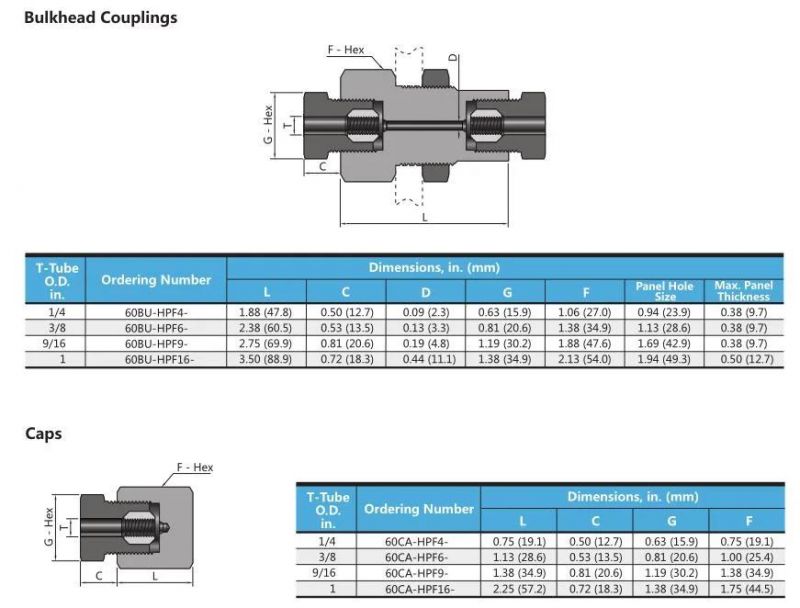

Hikelok 60000 Psig Ultrahigh Pressure Fittings Stainless Steel Bulkhead Couplings
Sailuoke Fluid Equipment Inc.- Standard：ANSI, GB, JIS
- Material：Stainless Steel
- Connection：Male
- Surface Treatment：Polishing
- Head Type：Hexagon
- Product Name：Ultrahigh Pressure Fitting Bulkhead Couplings
Base Info
- Model NO.：60BU
- Size：1,4′′ to 1′′
- Body Material：Stainless Steel
- OEM：Available
- MOQ：1 Piece
- Transport Package：Plastic Bag Inside, Carton Box Outside
- Specification：1,4′′ to 1′′
- Trademark：Hikelok
- Origin：China
- HS Code：7307290000
- Production Capacity：1000,Month
Description
Basic Info.
Model NO. 60BU Size 1/4′′ to 1′′ Body Material Stainless Steel OEM Available MOQ 1 Piece Transport Package Plastic Bag Inside, Carton Box Outside Specification 1/4′′ to 1′′ Trademark Hikelok Origin China HS Code 7307290000 Production Capacity 1000/MonthProduct Description

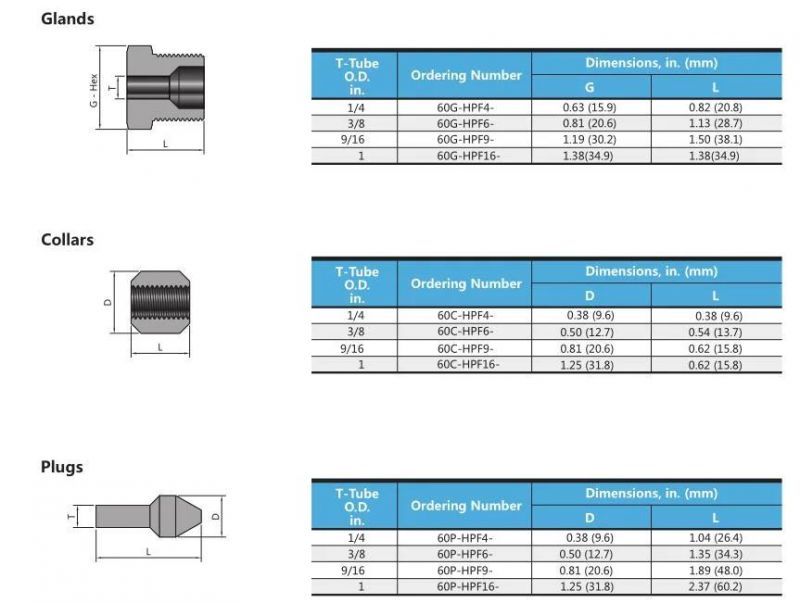

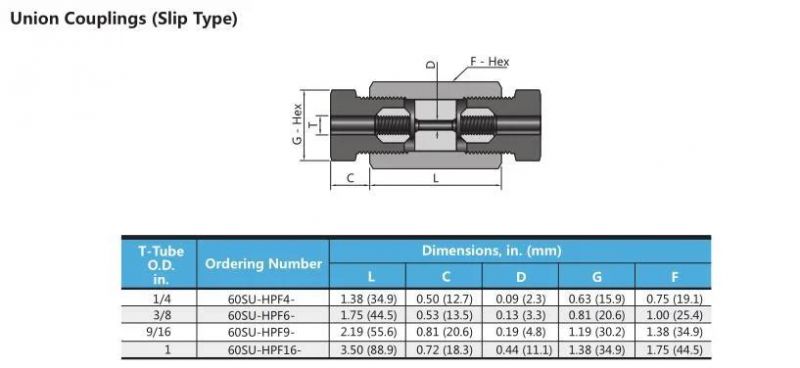

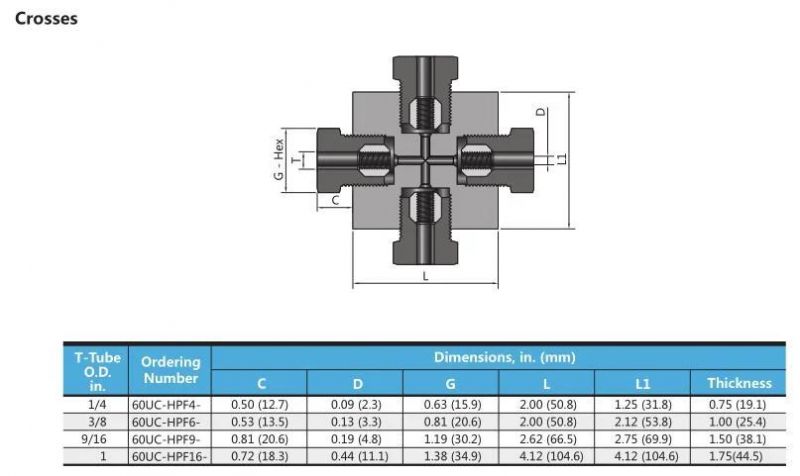

Hikelok Ultrahigh Pressure Fittings- 60 UT series
Features:
* Coned- and- Threaded Connection
* Available sizes are 1/4, 3/8, 9/16 and 1 in.
* Working pressure:
1/4, 3/8 and 9/16 in. : 60000 psi (4136 bar)
1 in.: 43000 psi (2964.7 bar)
* Working temperature from -423ºF to 1200ºF (-252ºC to 649ºC)
* Special 316 stainless steel and Alloy 826 material
* Anti- vibration connection compenents available
* Hikelok 60 series high pressure fittings are designed for use with 30 and 60 series high pressure valves
Ordering Information
* To order Hikelok 60 series high pressure fittings, add the material designator (316 or A825) to the ordering number
Certificates

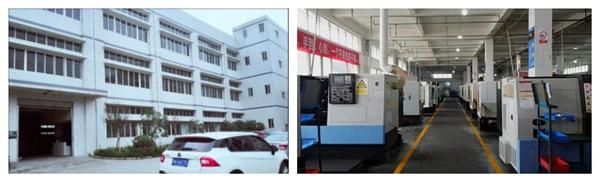

Factory
