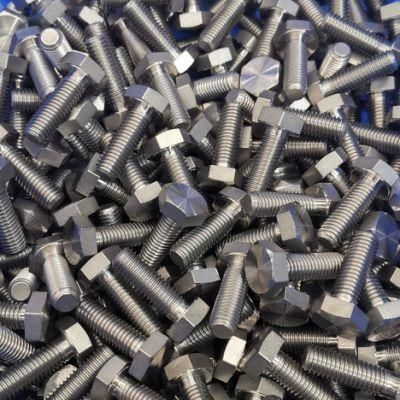

DIN933 Hex Bolts in Stainless Steel Fastener and Ti Screws M5*20 Ta10

SHAANXI RUIYANG IMPORT EXPORT CO., LTD.

Material：Stainless Steel
Type：Hexagon Head
Connection：Common Bolt
Head Style：Hexagonal
Standard：DIN, ANSI, GB, JIS, BSW, GOST
Grade：6.8

Base Info

Model NO.：M2-M100
Application：Machinery, Chemical Industry, Environmental, Building
Finish：Polishing
Steel：CS, Alloy
Stainless Steel：304, 316, 201, 310, 904L, 2507, 2205
Titanium：Gr1-Gr23
Nickle Alloy：N4, N6, C276
Transport Package：Carton Box
Specification：M2-100
Trademark：Ruiyang
Origin：China
HS Code：731815
Production Capacity：500tons Per Month

Description

Original,polished
Zinc(Yellow,White,Blue,Black),Hop Dip Galvanized(HDG),Black Oxide,
Geomet,Dacroment,anodization,Nickel plated,Zinc-Nickel platedProcesscold forging M2-M24m24-100 Machining cnc customed

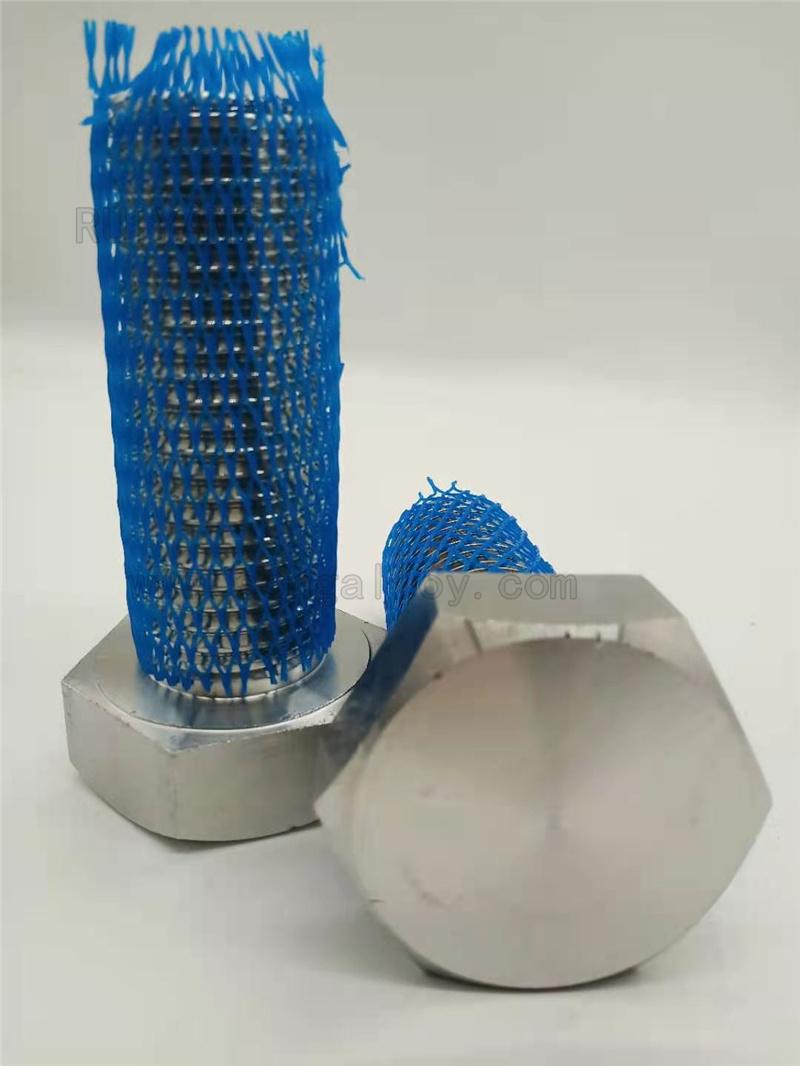

DIN933 Hex Bolts in Stainless Steel Fastener and Ti Screws M5*20 Ta10

DIN933 Hex Bolts in Stainless Steel Fastener and Ti Screws M5*20 Ta10

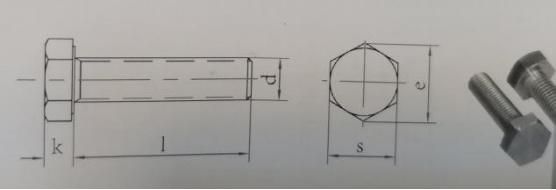

Size:

d	k	e	s
M3	2	6.01	5.5
M4	2.8	7.66	7
M5	3.5	8.79	8
M6	4	11.05	10
M8	5.3	14.38	13
M10	6.4	18.9	17
M12	7.5	21.1	19
M14	8.8	24.49	22
M16	10	26.75	24
M18	11.5	30.14	27
M20	12.5	33.53	30
M22	14	35.72	32
M24	15	39.98	36
M27	17	45.2	41
M30	18.7	50.85	46
M33	21	55.37	50
M36	22.5	60.79	55
M42	26	71.3	65
M48	30	82.6	75

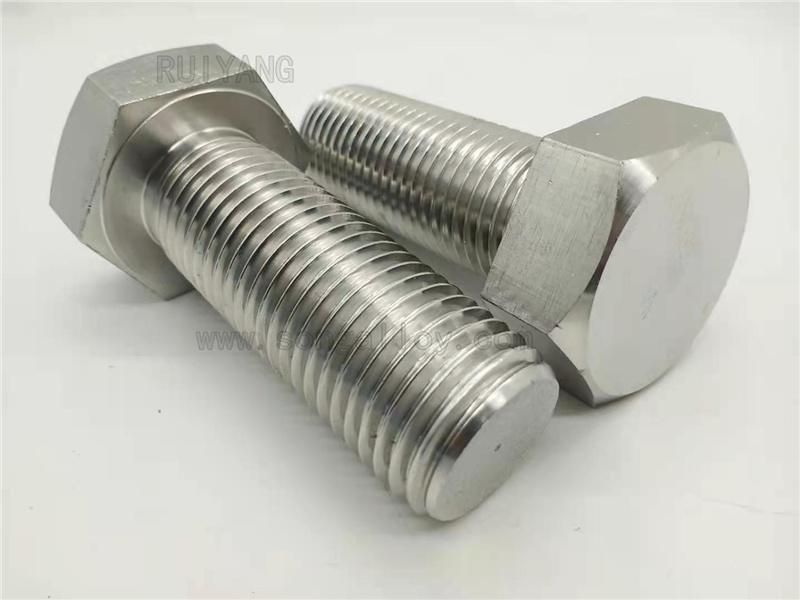

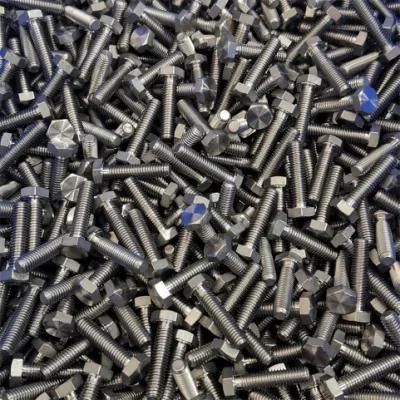

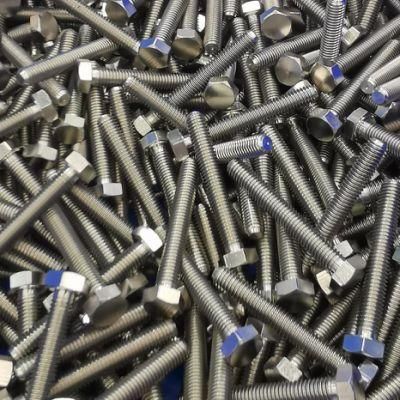

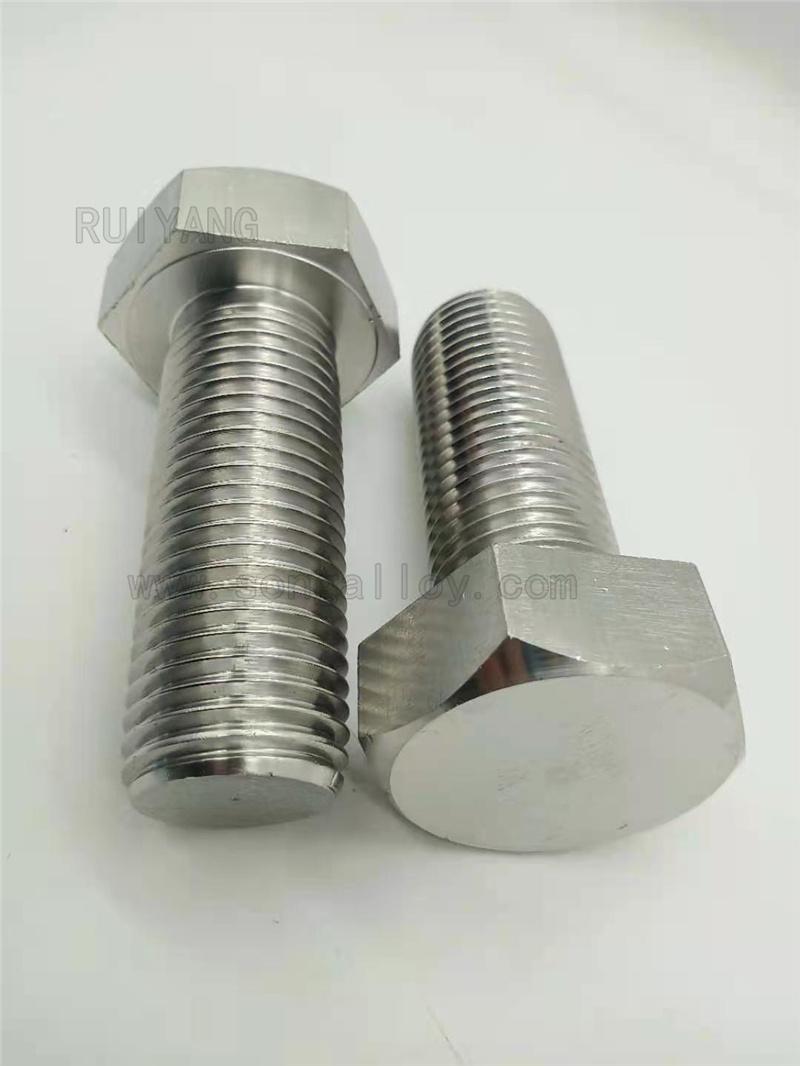

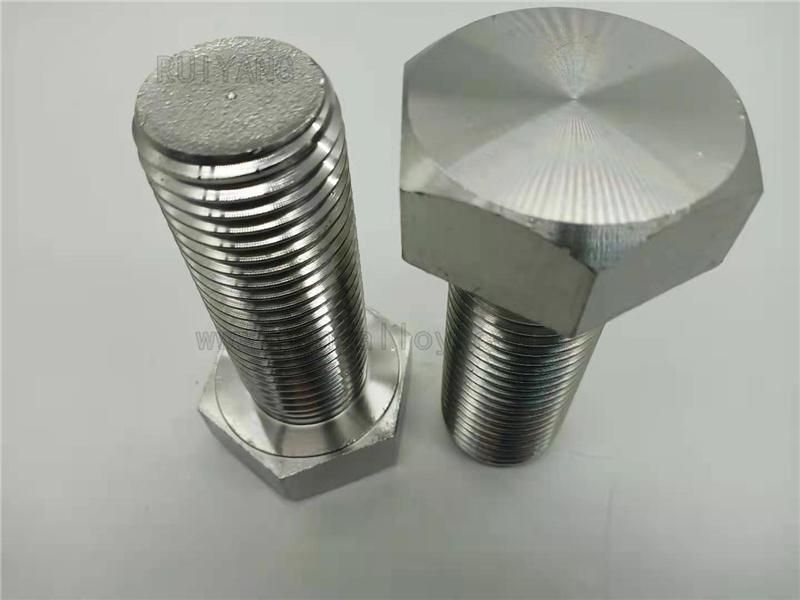

DIN933 Hex Bolts in Stainless Steel Fastener and Ti Screws M5*20 Ta10

DIN933 Hex Bolts in Stainless Steel Fastener and Ti Screws M5*20 Ta10

DIN933 Hex Bolts in Stainless Steel Fastener and Ti Screws M5*20 Ta10

DIN933 Hex Bolts in Stainless Steel Fastener and Ti Screws M5*20 Ta10

DIN933 Hex Bolts in Stainless Steel Fastener and Ti Screws M5*20 Ta10

DIN933 Hex Bolts in Stainless Steel Fastener and Ti Screws M5*20 Ta10

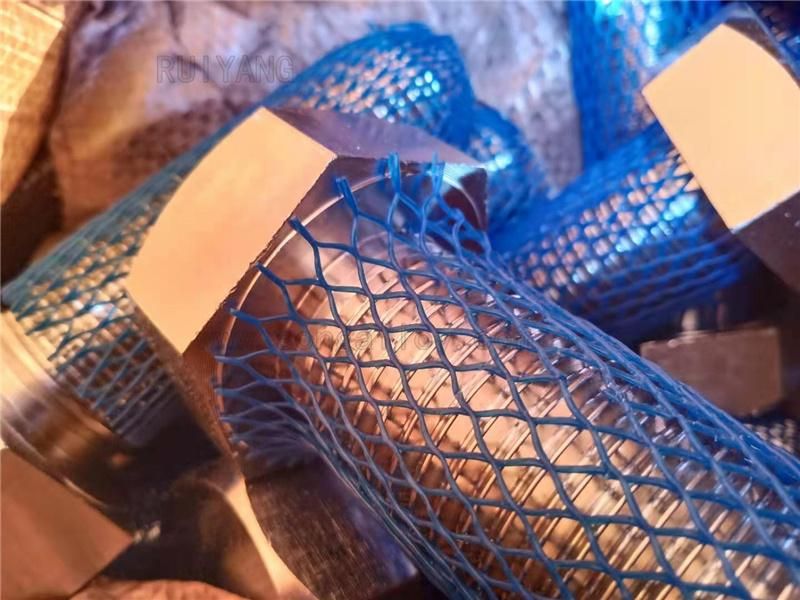

Package:
DIN933 Hex Bolts in Stainless Steel Fastener and Ti Screws M5*20 Ta10

DIN933 Hex Bolts in Stainless Steel Fastener and Ti Screws M5*20 Ta10

Production Lines

Delivery:DHL,FCL,LCL,BY Sea or by Air

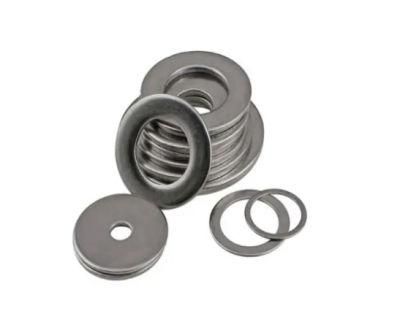

Welcome contact us for stainless steel and Titanium hex bolt and nuts washers inquiry,Here will supply you one stop service fasteners
