• Model NO.：YZF-F158
• Flange Size：1,2′ ′ (Dn15) to 48′ ′ (Dn1200)
• Flange Standard：ASME, ANSI, API,GOST,BS,as,JIS,etc
• Flange Type：ANSI,ASME Wn Flanges
• Flange Material：Stainless Steel, Carbon Steel, Aolly Steel
• Flange Pressure：Class 150--Class 2500
• Flange Facing：RF, FF, FM-M, T-G, Rj
• Flange Connection：Butt Weld & Socket Weld & Thread
• Transport Package：Standard Exporting Package
• Specification：ASME, ANSI, API, DIN, GOST, BS, AS, JIS, JPI ect.
• Trademark：NJP
• Origin：Jiangsu China
• HS Code：73079100
• Production Capacity：300000 Tons Per Year

Basic Info.

Model NO. YZF-F158 Flange Size 1/2′ ′ (Dn15) to 48′ ′ (Dn1200) Flange Standard ASME/ ANSI, API,GOST,BS,as,JIS,etc Flange Type ANSI/ASME Wn Flanges Flange Material Stainless Steel, Carbon Steel, Aolly Steel Flange Pressure Class 150--Class 2500 Flange Facing RF, FF, FM-M, T-G, Rj Flange Connection Butt Weld & Socket Weld & Thread Transport Package Standard Exporting Package Specification ASME/ ANSI, API, DIN, GOST, BS, AS, JIS, JPI ect. Trademark NJP Origin Jiangsu China HS Code 73079100 Production Capacity 300000 Tons Per Year

Product Description

ANSI/ASME Wn Flanges  (YZF-F158)


Size	1/2' ' (DN15) to 48' ' (DN1200)
Standard	ANSI,  API,  DIN, GOST,  BS,  AS,  JIS,  JPI
Material	Carbon Steel: A105(N) C22.8 ST-37.2 S400 S440 SQ235(CS20#) A106B A53 Q345 Stainless Steel: 304, 304L, 316, 316L, A350 LF2, 321, 347, 347H Alloy Steel: ASTM A182 F1, F5a, F9, F11, F12, F22, F91
Pressure	Class150,   300,   600,   900  1500  and  2500 PN6,   PN10,   PN16,   PN25,   PN40  and  PN64 JIS  5K,  10K, 16K  and  20K
Type	Slip-On,  Welding  Neck,  Blind,  Socket  Welding,  Threaded,   Lap  Joint , Plate,  etc
Facing	RF, FF, FM-M, T-G, RJ
Finish	Transparent oil, rust-proof oil, hot galvanizing
Connection	Butt  Weld  &   Socket  Weld  &   Thread
Marking	standard  or  as  customer' s  need
Inspection	in-house  or  the  third  party
Application	chemical  industry,   petroleum  industry,   construction  industry, and  so  on
Delivery  Time	usually  within  25-30  days  after  we  have  confirmed  your  order
MOQ	10  pieces
Packing	wooden  cases  or  wooden  pallets  or  as  per  customer' s  requirement
Productivity	300000  tons  per  year

Types' Specification

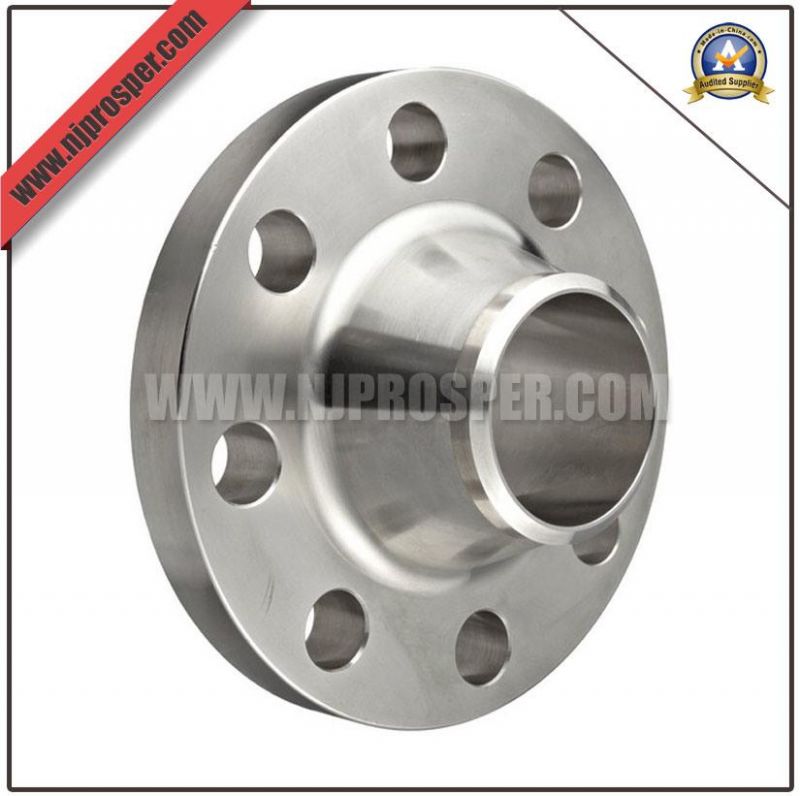

Welding neck
1, Preferred for high-pressure, subzero or elevated temperature
2, Hub is tapered and bored to match pipe's inside diameter so flow is not restricted, preventing turbulence and reducing erosion
3, Easily radiographed and provides excellent stress distribution
Slip-on
1, Not normally used in high-stress applications due to low hub and weld attachment
2, Silps over outside of pipe
3, Inside of flange welded at hub and end of pipe
Lap joint
1, Used where bolt alignment or access for cleaning is required
2, Similar to slip-on flange when used with lap joint stub end
3, Radius at intersection of flange face and bore to match lap joint stub end
Threaded
1, Used where welding would would be hazardous
2, Designed for low-pressure and non-cyclic applications
3, Bore is threaded to match pipe thread
4, Tapered to seal pipe and flanges
Socket welding
1, For small-diameter chemical processes, hydraulic and stream distribution lines
2, Similar to slip-on flange
3, Counter bore matches pipe bore, allowing unrestricted flow
4, Counter bore from hub side fits pipe's outer diameter -  can insert pipe in socket with fillet weld at hub
Blind
1, Used to close ends of piping
2, Has no bore
3, Permits access to sealed lines
Other flanges
Orifice, Expander, Reducing, Lightweight, Studding Outlets, Long Weld Necks,Metric, Navy Drawings, Customer Drawings

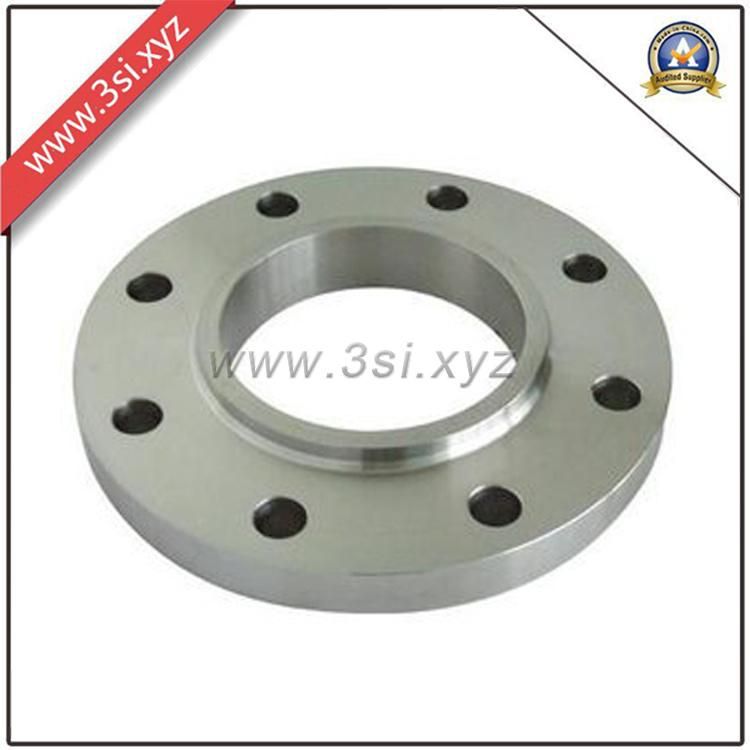

Product Pictures:



Our Advantages:
1.Professional manufactory.
2.Trial orders are acceptable.
3.Flexible and convenient logistic service.
4.Competitive price.
5.100% testing,ensuring the mechanical properties
6.Professional testing.
