• Model NO.：70KN-300KN oval eyes
• Transport Package：Ply-Wood Case
• Specification：IEC STANDARD
• Trademark：CIE or OEM
• Origin：China
• HS Code：73269090
• Production Capacity：1200tons,Month

Basic Info.

Model NO. 70KN-300KN oval eyes Transport Package Ply-Wood Case Specification IEC STANDARD Trademark CIE or OEM Origin China HS Code 73269090 Production Capacity 1200tons/Month

Product Description

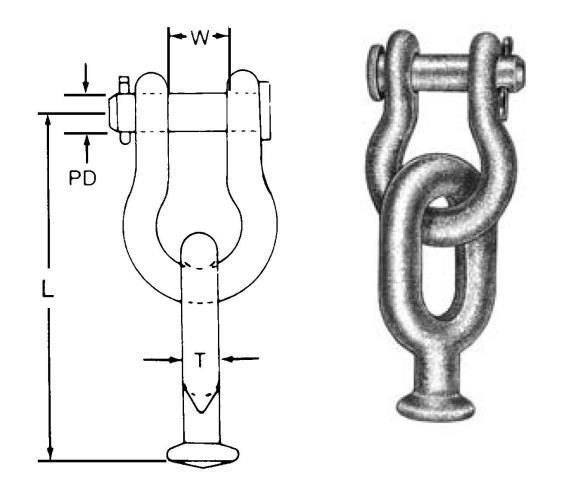

Ball eyes are used to attach ball and socket insulators to other associated hardware. The use of the ball oval eye and an anchor shackle is one of the most common distribution tower attachment combinations.


Technical Data:

1. Name: Hot DIP Galvanized Forged Ball Eyes for Insulator Connection

2. Material: Forged steel/ Casting steel

3. Surface: HDG average thickness is 70--100 μM or as Client 's requirements

4. Minimum Damage strength: 70KN--300KN

5. No sharp edges, and corners rounded. Clean rust free, smooth and uniform throughout and will also be free from burrs.

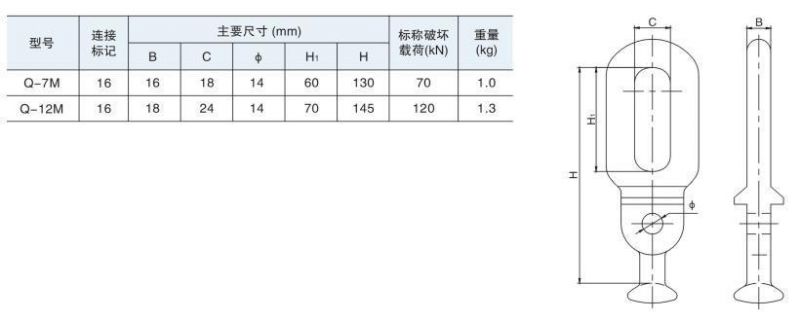

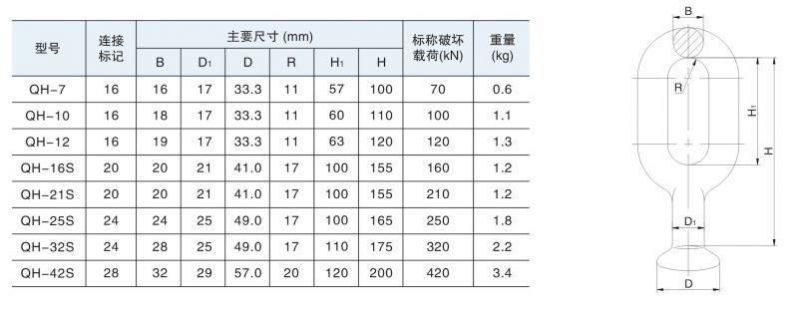

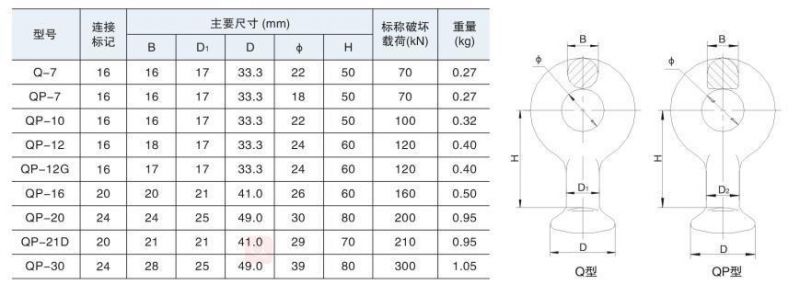

6. Technical Data as below:



Our Products Range:

Main Line Fitting Products:
Socket-clevis, Socket-tongue, Ball-eye, Ball-clevis, Hook-ball, Clevis-tongue, Socket-eye
U bolt, Oval Eye, Horizontal Clamp, Corona Ring, Flange&base, Cap&Pin, Railway insulator fitting


Material Range	(1) forgd-steel metal fitting (2) ducitle cast iron metal fitting (3) Aluminum fitting (4) Copper fitting (5) stainless steel fitting (6) Stamping Steel fitting
Fitting Production Process	(1)Drawing (2)Mould making (3)Smelting (4)casting (5)Annealing (6)Hot-DIP galvanized (7)Machining (8)Inspecting
Produce Equipment	Friction Screw Press Series, CNC Lathe, Machinning Center, CNC Milling Machine, Bentch Drilling
Surface Treatment	Heat Treatment, Polishing, Shot Blasting, Painting, Electro-Plating, Chemical Plating

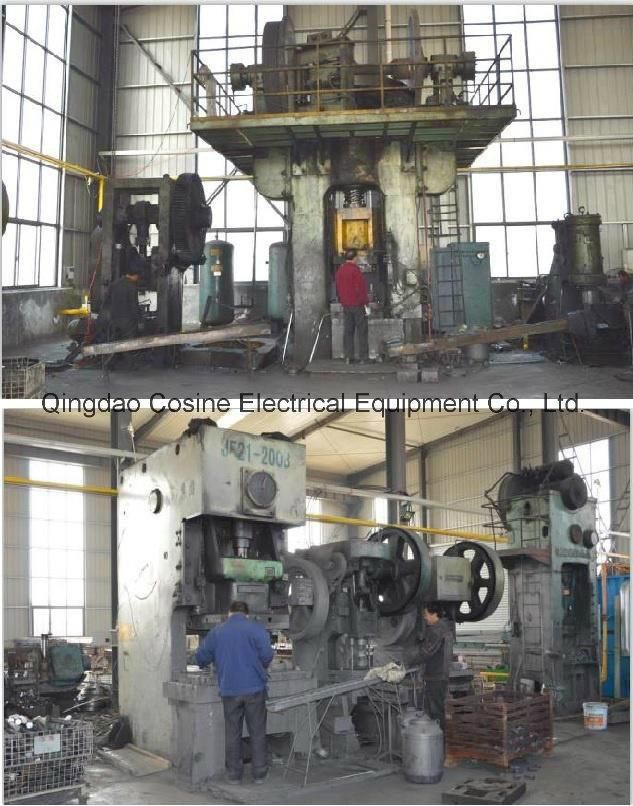

Workshop Overview:

In order to control the quality and improve producing efficiency, we have bought the modern producing line instead of handwork. Firstly, it can improve the producing capability. What's more, can reduce the employee's workload.

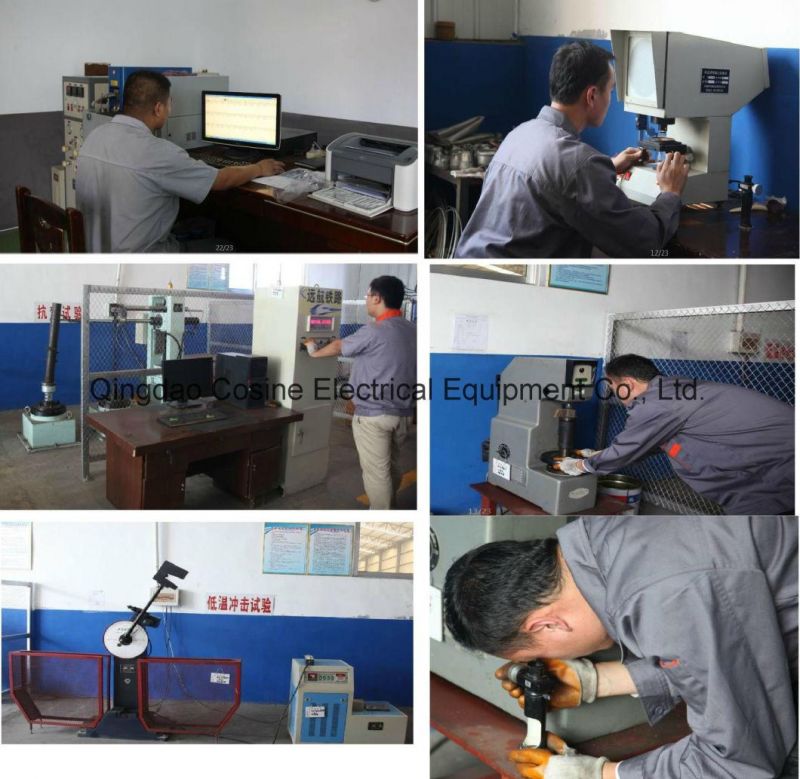

Strict Quality Control:


Our ISO 9001 Certificate with high quality:

Exported Packgae:

Ply-wooden case is our normal package. Also can be customized as per the client's request!

Company Profile:

Beginning from 1998, Qingdao Cosine Electrical Equipment Co., Ltd.has been producing and exporting line fitting over 20 years. In the beginning, the product is ductile cast iron end fitting for ceramic insulator. With the composite insulator developing, we begin to produce the composite insulator fitting from 2003.

Export Market:
--USA, France, Brazil, Argentina, Mexico
--Spain, Poland, South Africa, Turkey, Italy
--Morocco, Vietnam, Hungary, Philippine

Advantages:
1. We are manufacturer
2. A variety of models for your choice
3. More than 20 years' experiences
4. Timely delivery guaranteed
5. Long warranty (1 year)
6. We could produce as per your drawings!


Looking forward to your inquiry!
The most competitive price & high quality will be offered to you!
