Kze Series Hydraulic Quick Couplings (Steel)
Ningbo Hi-Tech Smart Machinery Co., Ltd.- Material：Carbon Steel
- Surface Finishing：Female
- Standard Seal Material：NBR (Other Material Is Available on Request)
- Temperature Range (Std Seals)：-20°c to +80°c
- Materials：Carbon Steel
- Size：1,4", 3,8", 1,2",3,4",1"
Base Info
- Model NO.：KZE-PF
- Transport Package：PP Pag+Box+Carton
- Specification：Female
- Trademark：SMT
- Origin：China
- HS Code：39174000
- Production Capacity：10000000
Description
Basic Info.
Model NO. KZE-PF Transport Package PP Pag+Box+Carton Specification Female Trademark SMT Origin China HS Code 39174000 Production Capacity 10000000Product Description
Features1. Poppet valves available to prevent uncoupled leakage
2. Ball valves available for rugged dependability in heavy-duty hydraulic applications, within rated working pressure
3. Critical parts are induction hardened for durability
4. Dependable ball-locking mechanism holds the mating halves together
5. Socket and plug are precision machined from solid bar stock
6. KZE Series couplings interchange with couplings meeting ISO 7241-1, Series A.
Applications
This Series brings to the industry a proven sesing for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mail machinery, and other demanding hydraulic applications.
| Body size (in) |
| |||||
| Rated Pressure (Bar) |
| |||||
| Material: | Carbon steel | |||||
| Standard seal material: | NBR (other material is available on request) | |||||
| Temperature Range (Std seals): | -20°C to +80°C |

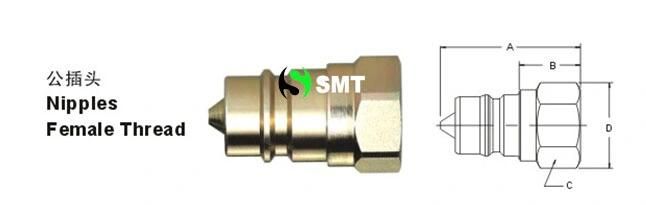

| Part No. | Thread size BSPP | A Overall Length (mm.) | B Exposed Length (mm.) | C Hex Size (mm.) | D Largest Diameter (mm.) | Part No. | Thread size NPT | A Overall Length (in.) | B Exposed Length (in.) | C Hex Size (in.) | D Largest Diameter (in.) |
| KZE-01PF | G1/8 | 32.0 | 15.0 | 14.0 | 17.0 | KZE-N01PF | NPT1/8 | 1.27 | 0.58 | 0.56 | 0.65 |
| KZE-02PF | G1/4 | 32.0 | 15.0 | 19.0 | 22.0 | KZE-N02PF | NPT1/4 | 1.27 | 0.58 | 0.75 | 0.87 |
| KZE-03PF | G3/8 | 37.0 | 18.0 | 22.0 | 26.0 | KZE-N03PF | NPT3/8 | 1.47 | 0.72 | 0.88 | 1.01 |
| KZE-04PF | G1/2 | 46.0 | 20.0 | 27.0 | 31.0 | KZE-N04PF | NPT1/2 | 1.82 | 0.78 | 1.06 | 1.23 |
| KZE-06PF | G3/4 | 58.0 | 30.0 | 35.0 | 40.0 | KZE-N06PF | NPT3/4 | 2.29 | 1.18 | 1.38 | 1.59 |
| KZE-08PF | G1 | 66.0 | 34.0 | 41.0 | 48.0 | KZE-N08PF | NPT1 | 2.58 | 1.34 | 1.62 | 1.88 |
| KZE-10PF | G1 1/4 | 75.0 | 36.0 | 54.0 | 59.0 | KZE-N10PF | NPT1 1/4 | 2.95 | 1.41 | 2.12 | 2.32 |
| KZE-12PF | G1 1/2 | 86.0 | 38.0 | 60.0 | 68.0 | KZE-N12PF | NPT1 1/2 | 3.38 | 1.49 | 2.36 | 2.67 |
| KZE-16PF | G2 | 100.0 | 77.0 | 77.0 | 84.0 | KZE-N16PF | NPT2 | 3.93 | 3.03 | 3.03 | 3.30 |
