Anchor Bolt and Nut Expansion Bolt Wedge Bolt Zinc Plated Hex Expansion Bolt
Tianjin Easoon Tech Co., Ltd.- Material：Stainless Steel
- Type：Round Head
- Connection：Common Bolt
- Head Style：Round
- Standard：DIN, ANSI, GB, JIS, BSW, GOST
- Grade：8.8
Base Info
- Model NO.：hex expansion bolt
- Application：Machinery, Chemical Industry, Environmental, Building
- Finish：Mill
- Product：Expansion Bolt
- Dia：6~24mm
- OEM：Available
- Delivery Time：15 Days
- Transport Package：PE Bag,Box,Carton Box
- Specification：M6~M16
- Trademark：EASOON
- Origin：China
- HS Code：7318150000
- Production Capacity：500000 PCS,Day
Description
Steel:4.8Grade DIN6923,8.8Grade 10.9Grade of GB5783 and GB5782
Stainless steel: All DIN Standard stainless steel BoltSpecification Length (L1)
(mm) Case Tube Length (L2)
(mm) Diameter
(mm) Case Tube Diameter
(mm) Hole Diameter
(mm) Wrench Size
(mm) M6X50 50 35 6 8 8 10 M6X60 60 40 6 8 8 10 M6X70 70 50 6 8 8 10 M6X80 80 55 6 8 8 10 M6X100 100 80 6 8 8 10 M8X50 50 30 8 10 10 13 M8X60 60 40 8 10 10 13 M8X70 70 50 8 10 10 13 M8X80 80 55 8 10 10 13 M8X90 90 65 8 10 10 13 M8X100 100 75 8 10 10 13 M8X120 120 90 8 10 10 13 M8X150 150 120 8 10 10 13 M10X60 60 35 10 12 12 17 M10X70 70 45 10 12 12 17 M10X80 80 55 10 12 12 17 M10X90 90 60 10 12 12 17 M10X100 100 75 10 12 12 17 M10X110 110 85 10 12 12 17 M10X120 120 90 10 12 12 17 M10X150 150 120 10 12 12 17 M12X80 80 50 12 14 14 19 M12X90 90 65 12 14 14 19 M12X100 100 70 12 14 14 19 M12X110 110 80 12 14 14 19 M12X120 120 90 12 14 14 19 M12X150 150 100 12 14 14 19 M12X200 200 150 12 16 16 19 M14X100 100 60 14 18 18 22 M14X120 120 80 14 18 18 22 M14X150 150 90 14 18 18 22 M14X200 200 150 14 18 18 22 M16X100 100 60 16 20 20 24 M16X120 120 80 16 20 20 24 M16X140 140 90 16 20 20 24 M16X150 150 100 16 20 20 24 M16X200 200 150 16 20 20 24 M16X400 400 -- 16 20 20 24 M20X100 100 45 20 25 25 29 M20X120 120 65 20 25 25 29 M20X150 150 85 20 25 25 29 M20X200 200 145 20 25 25 29 M20X250 250 180 20 25 25 29

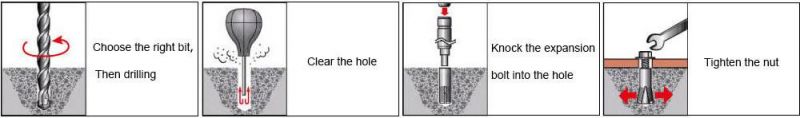

How to Install

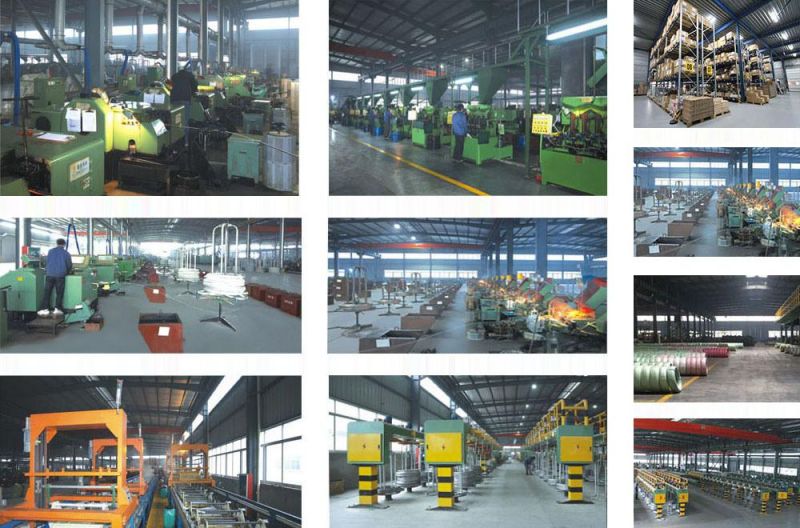

Production Workshop

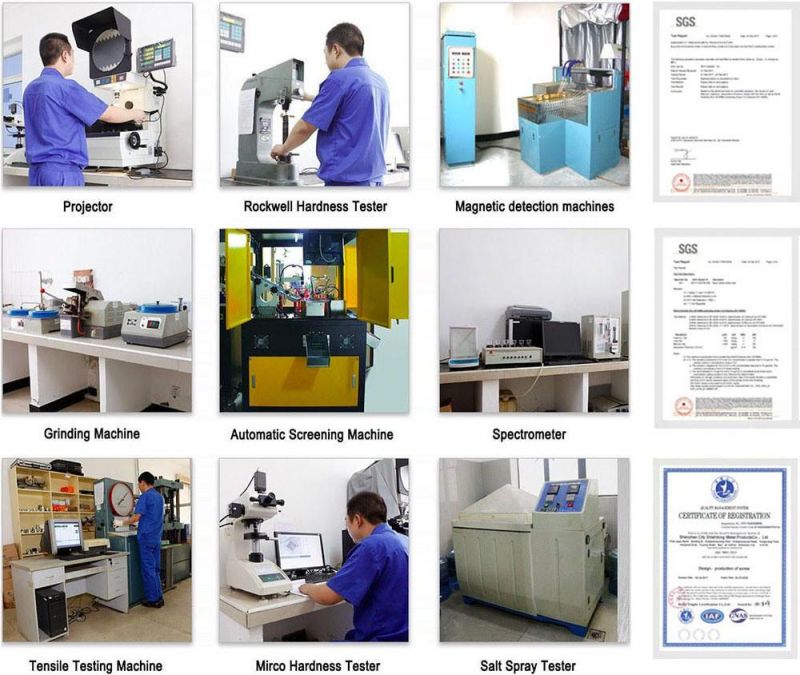

Product Test & Certificates
Trading Information
Stainless steel: All DIN Standard stainless steel Bolt
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
