• Model NO.：all size
• Transport Package：Standard Carton
• Specification：NF IEC
• Trademark：JMA
• Origin：China
• HS Code：8538900000
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. all size Transport Package Standard Carton Specification NF IEC Trademark JMA Origin China HS Code 8538900000 Production Capacity 50000PCS/Month

Product Description

IPC-Insulation Piercing Connector
(1) IPC ( insulating piercing clamp) are suitable for connecting hign-low voltage insulating line which quote tap line from the main line, or connecting the jumping conductor between the two tension phase.
(2) Insulation connector/piercing connector/insulation piercing connector(IPC): With specially designed contact teeth and special insulation plastic cover.
(3)All components are connected with the flame of fire-retardant properties.
(4)Using corrosion-resistant shell, Anti-climate change, high-intensity ultraviolet insulation materials.

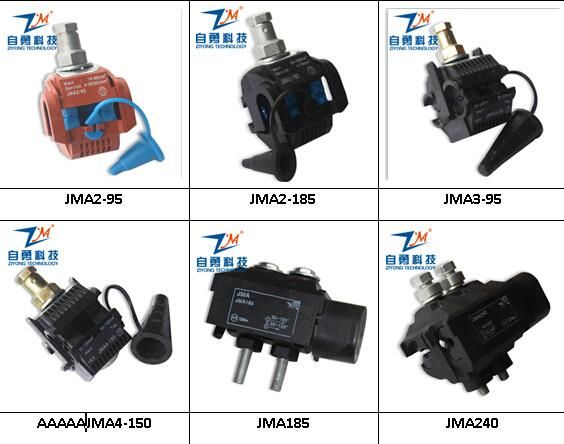

CAT.NO	CONDUCTORS	BRANCH	PIERCING DEPTH	PATING CURRENT	WEIGHT	PACKING
	MAIN(MM2)		MM	A	G	PCS/CTN
JMAEP	4-50	1.5-10	≥3	70	50	300
JMAEP	6-95	1.5-10	≥3	70	52	300
JMA2-95	16-95	4-35(50)	≥3	200	182	100
JMA2-150	50-150	4-35(50)	≥3	200	182	100
JMA2-185	50-185	6-16	≥3	200	188	100
JMA3-95	25-95	25-95	≥3	207	210	100
JMA185	50-185	50-150	≥3	504	350	40
JMA4-150	50-150	50-150	≥3	239	220	100
JMA6	120-240	16-120	≥3	239	310	60
JMA240	95-240	95-240	≥3	239	310	60
JMA400	120-400	95-240	≥3	679	800	40
JMA-1	35-70	6-35	≥3	200	150	300
JMA-2	35-150	35-150	≥3	207	180	300
