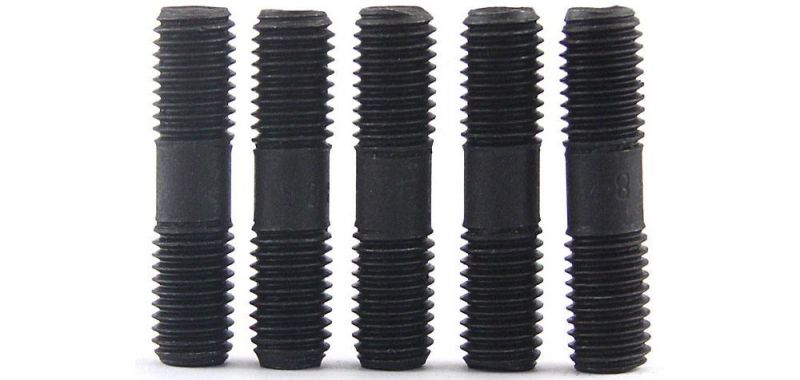

Black Coating 12.9 Double Head Bolt DIN939 Stud Metal 1.25D Bolt and Nut High Strength 42CrMo Bolts
Tianjin Easoon Tech Co., Ltd.- Material：High Strength Steel
- Type：Double Head
- Connection：Common Bolt
- Head Style：Round
- Standard：DIN, ANSI, GB, JIS, BSW, GOST
- Grade：8.8
Base Info
- Model NO.：bolt and nut
- Application：Machinery, Chemical Industry, Environmental, Building
- Finish：Black
- Available Material：Carbon Steel, Stainless Steel
- Extra Service：Customized, OEM
- Delivery Time：5~10 Days
- Transport Package：PE Bag,Carton Box
- Specification：M2~M56
- Trademark：EASOON
- Origin：China
- HS Code：7318150000
- Production Capacity：500000 PCS,Day
Description

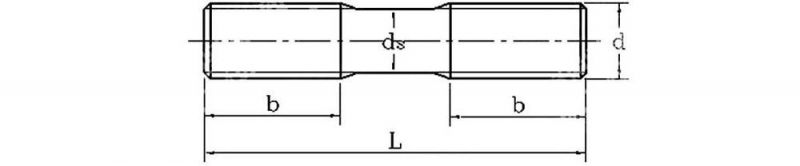

Product Specification
| d (Dia) | P (Pitch) | b (Thread length) | d (Dia) | P (Pitch) | b (Thread length) | d (Dia) | P (Pitch) | b (Thread length) |
| M2 | 0.4 | 10 | M12 | 1.75 | 36 | M30 | 3.5 | 72 |
| M2.5 | 0.45 | 11 | M14 | 2.0 | 40 | M33 | 3.5 | 78 |
| M3 | 0.5 | 12 | M16 | 2.0 | 44 | M36 | 4.0 | 84 |
| M4 | 0.7 | 14 | M18 | 2.5 | 48 | M39 | 4.0 | 89 |
| M5 | 0.8 | 16 | M20 | 2.5 | 52 | M42 | 4.5 | 96 |
| M6 | 1.0 | 18 | M22 | 2.5 | 56 | M48 | 5.0 | 108 |
| M8 | 1.25 | 28 | M24 | 3.0 | 60 | M56 | 5.5 | 124 |
| M10 | 1.5 | 32 | M27 | 3.0 | 66 |

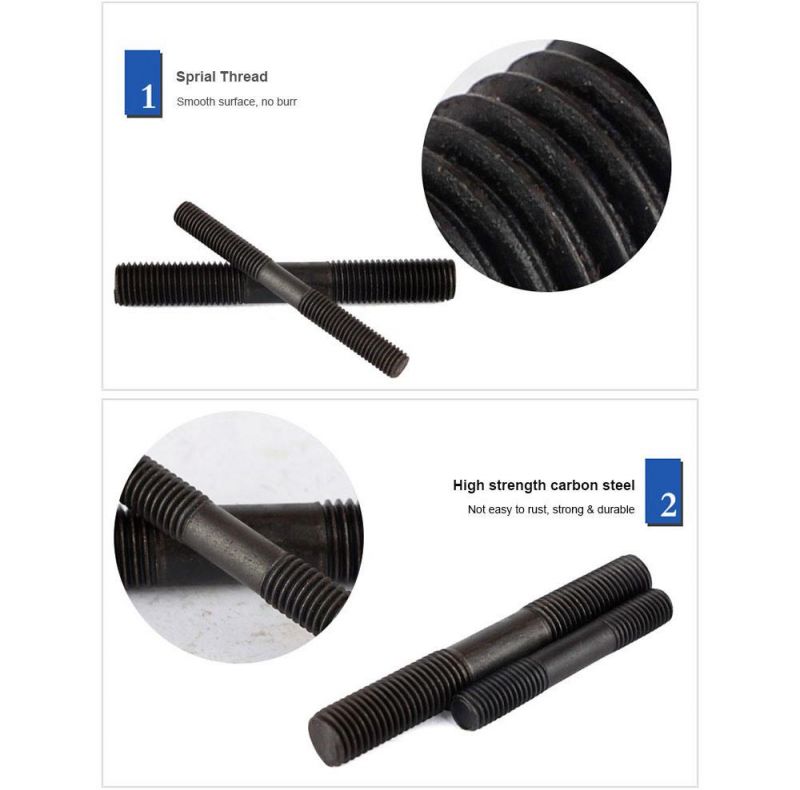

Product Details

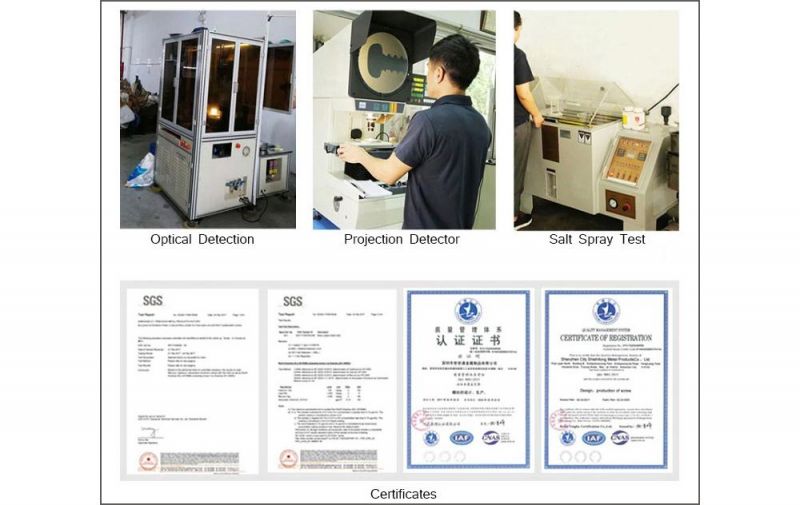

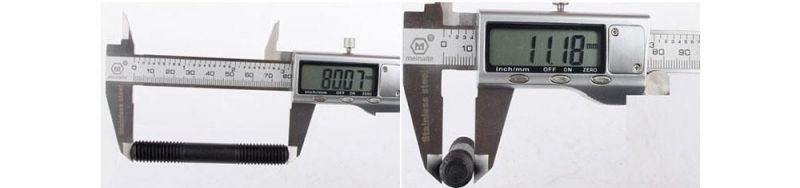

Product Test

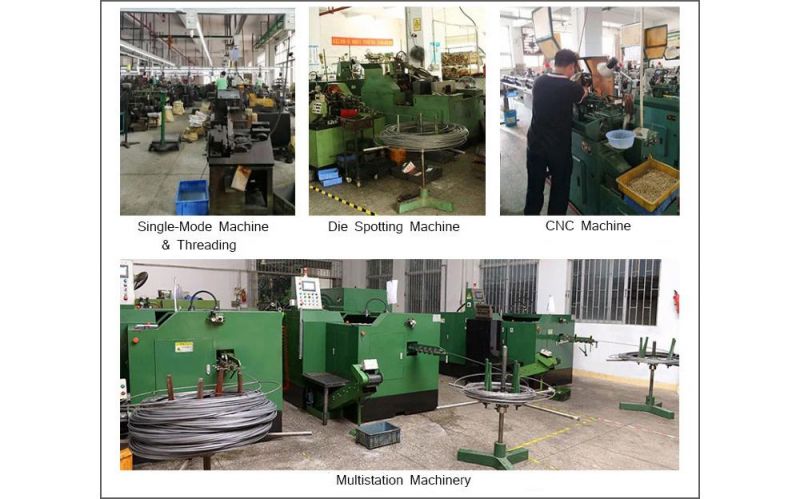

Production Workshop
Trading information
| Payment | T/T, Western Union L/C. |
| Delivery time | Within 7-12 days after 30% deposit. |
| Service | Extra project consultancy & fabrication service. |
Package & Loading

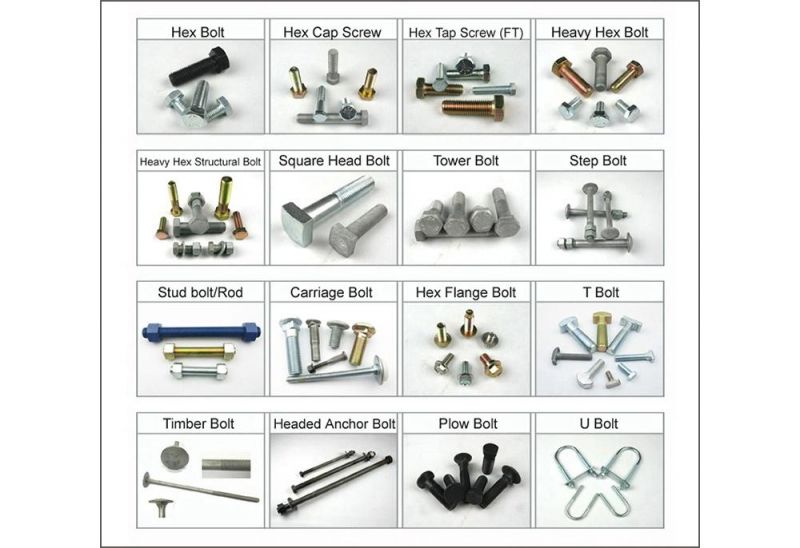

More Products
FAQ Q: What is the MOQ?
A: 1 pc.
Q: Can I get a sample?
A: Yes we offer free samples. Delivery cost is to be paid by clients.
Q: What is delivery time?
A: 5 days after deposit. Except for public holidays.
Q: How can you guarantee the quality?
A: We have rigorous quality test system, from raw materials to finished products, the materials must be checked
and signed by QC people.
Q: How long can I get a quote?
A: The quotation can be provided not longer than 24 hours on condition that we know all detailed requirements.
Q: Can you provide OEM service?
A: Yes,we can produce under your own brandname. Logo and design need to be provided so as to make
customized brandname.
