• Type：a,B,C
• Feature：Non-Slip and Safety, Easy Cleaning Installation
• Main Market：Global
• Steel Material：Q235B
• Transport Package：Regular Export Packing
• Specification：65mm
• Trademark：Longta
• Origin：Ningbo, China
• HS Code：7308900000
• Production Capacity：Over 100000 Tons Each Year

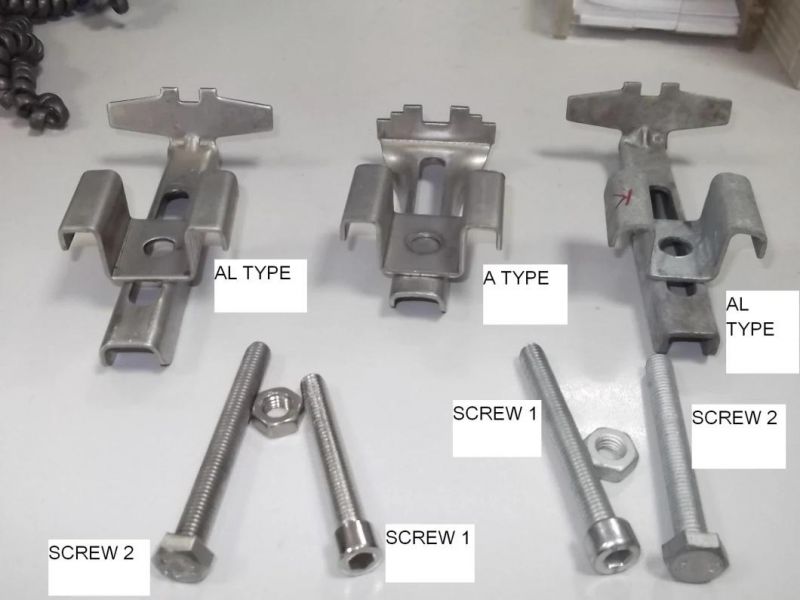

Type of Saddle ClipsApplicable for Steel GratingA-30B-30C-30Bearing bar pitch 30mmA-40B-40C-40Bearing bar pitch 40mmA-60B-60C-60Bearing bar pitch 60mm
Features:

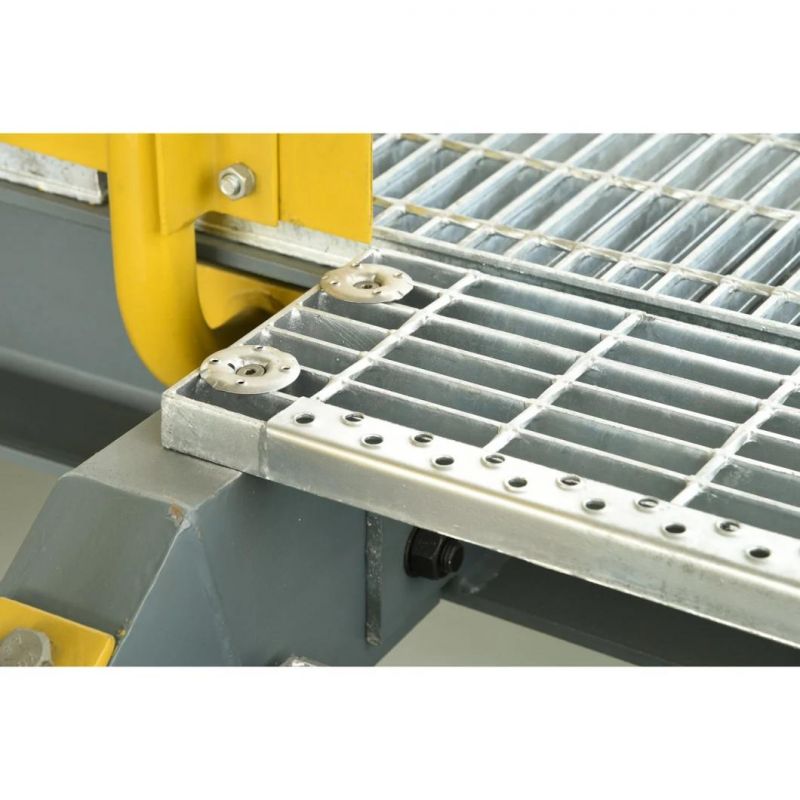

1) The installing of the steel grating has two methods: Welded fixing and clip fixing
2) Welded fixing app-lies to the parts that do not need to teardown, such as the platform around the equipment. And adopting the clip fixing has the advantage of easy to fix and tear-down, also it will not destroy the zinc coating

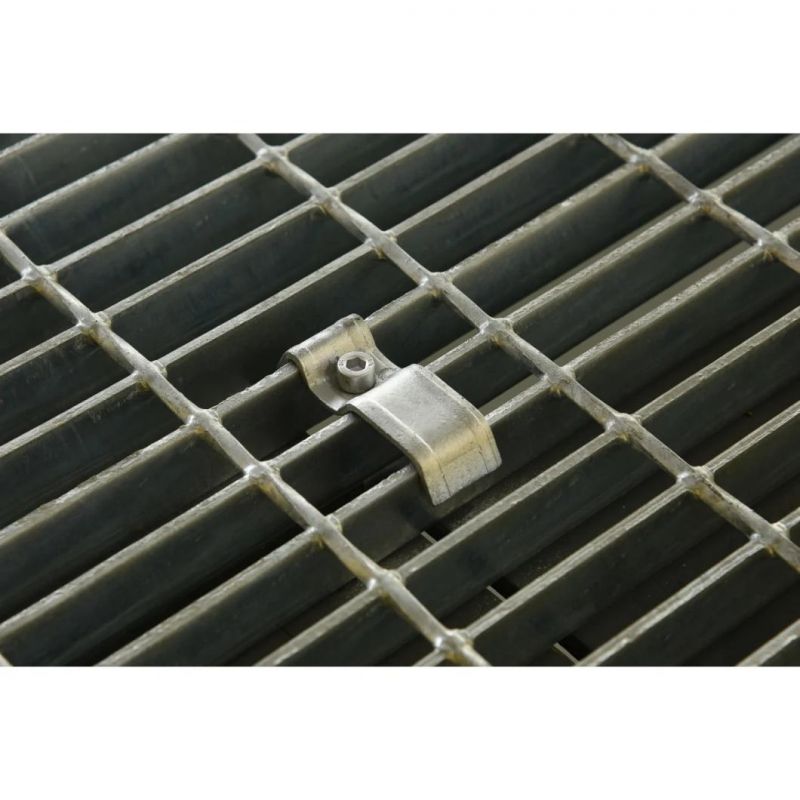

3) The clip apply to all kinds of steel gratings, it is made of the M8 bolt, top clip and bottom clip
4) The method of welded fixing: At the first flat bar of every corner, the corner welding line must be over 20mm long and 3mm high
5) The method of clip fixing: There are at least 4 clips on every piece of steel grating, about the big span steel grating it is better to use more clips
6) According to the client's requests, we can supply galvanized mild steel clip and stainless steel clip
7) When ordering the clip, please note the clip type, quantity and material.

The method of clip fixing: There are at least 4 clips on every piece of steel grating, about the big span steel grating it is better to use more clips.

According to the client's requests, we can supply galvanized mild steel clips and stainless steel clips.

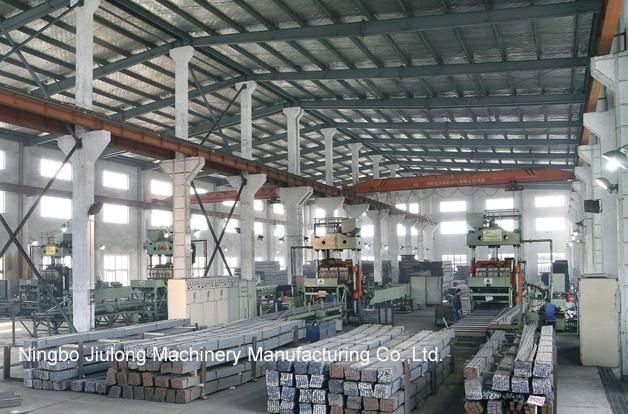

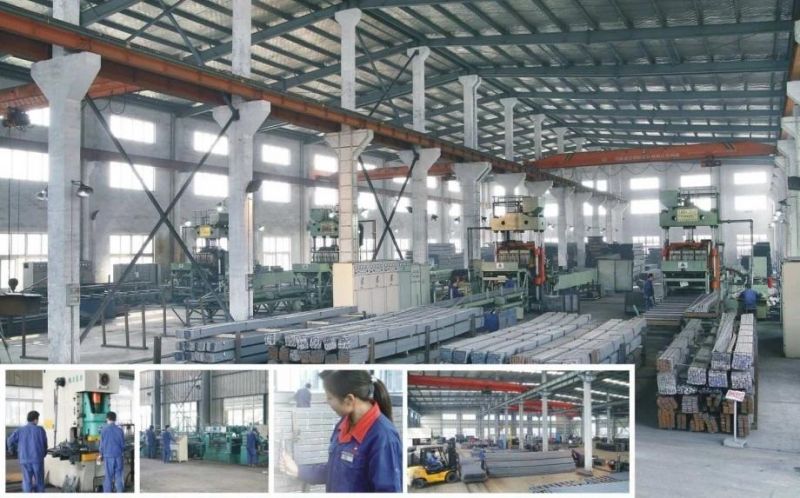

Ningbo Jiulong Machinery Manufacturing Co., Ltd is the second largest steel grating manufacturer in China. We have 7 running lines with yearly capacity of 70, 000tons. Jiulong grating has exported to more than 30 countries. Choose Jiulong grating is your right decision!
