• Model NO.：DZFIXINGS049
• Other Used Name：Undercut Anchor Bolt,Back Undercut Anchor
• Comapny Certificate：ISO9001, SGS
• Product Third-Party Certificate：SGS
• Size-Dimeter：M6-M10
• Size-Length：5mm-40mm
• Finish：Polish
• Package：6 Boxes,Carton, 64-80cartons,Wood Pallet
• Payment Term：Ttor LC at Sight
• MOQ：10000PCS
• Transport Package：Carton Packing Then on Wood Pallet
• Specification：ACCORDING TO THE DRAWING
• Trademark：DZ FIXINGS
• Origin：China
• HS Code：7318190000
• Production Capacity：50, 00-10, 000PCS Per Day

Basic Info.

Model NO. DZFIXINGS049 Other Used Name Undercut Anchor Bolt,Back Undercut Anchor Comapny Certificate ISO9001, SGS Product Third-Party Certificate SGS Size-Dimeter M6-M10 Size-Length 5mm-40mm Finish Polish Package 6 Boxes/Carton, 64-80cartons/Wood Pallet Payment Term Ttor LC at Sight MOQ 10000PCS Transport Package Carton Packing Then on Wood Pallet Specification ACCORDING TO THE DRAWING Trademark DZ FIXINGS Origin China HS Code 7318190000 Production Capacity 50, 00-10, 000PCS Per Day

Product Description

Stainless Steel Undercut Anchor Bolt/Undercut Back Anchor

1,Other Used name:
Under cut anchor,undercut back anchor,back undercut anchor,undercut anchor fixing systems

2,Undercut anchor size:
M6*10 M6*16 M6*20 M6*25
Anchor Sleeve Size: M6X5 M6X7 M6X9 M6X12 M6X15
Hs=5mm, Hs=7mm, Hs=9mm, Hs=12mm, Hs=15mm

3,Undercut anchor usage:
UnderCut Anchor used for installation of Ceramic or Porcelain Tiles on Facades of Buildings.
1)The UnderCut Anchor consists of an anchor sleeve a set screw and a Flange nut.
2)Anchor sleeve and screw length have to be matched to the hole depth required and to the panel bracket chosen.
3)The anchor sleeve is expanded to its original dimension by inserting the screw to a controlled depth, so that the sleeve sits snugly against the undercut section of the hole in the facade panel.

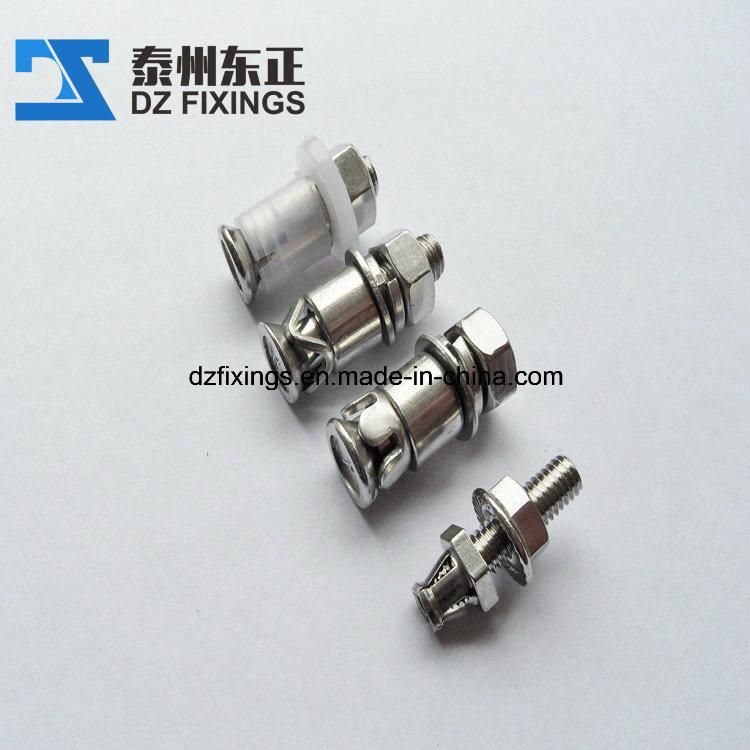

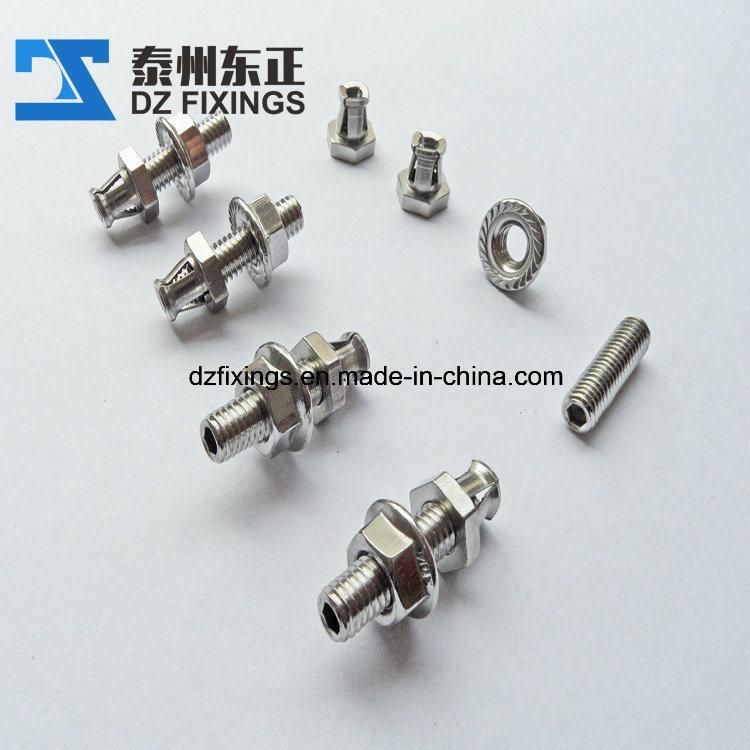

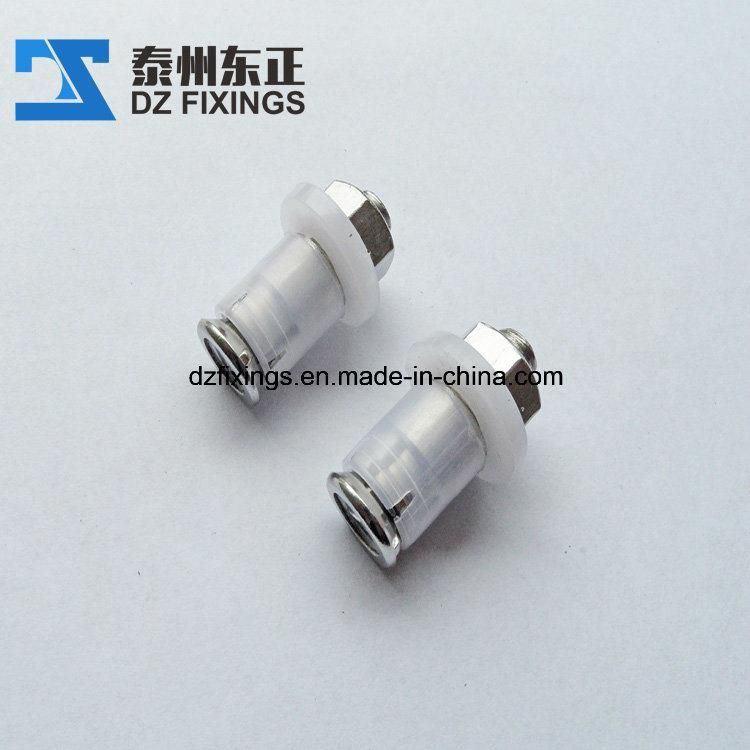

4,Undercut anchor Product Photo:
