Expansion Valve&Expansion Valve-R2 Series, Expansion Valve - V Series

Shengzhou City Resour Products Supplying Co., Ltd.
  • Material：Brass
  • Transport Package：Carton
  • Trademark：RESOUR,COOLSOUR
  • Origin：Zhejiang China (Mainland)

Base Info

  • Model NO.：TX2
  • HS Code：841899100
  • Production Capacity：1000000 Pieces Per Week

Description

Basic Info.

Model NO. TX2 HS Code 841899100 Production Capacity 1000000 Pieces Per Week

Product Description

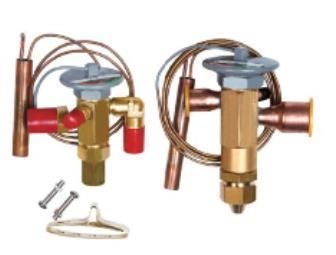

EXPANSION VALVE

EXPANSION VALVE - R2 Series

Expansion Valve&Expansion Valve-R2 Series, Expansion Valve - V Series

Feature:
Wide range of evaporating temperature;
Interchangeable orifice;
Orifice can be chose according to refrigerant and capacity;
Max.testing pressure: 36bar;
Allow working pressure: 28bar;
Suit to refrigerant: R12,R22,R134A,R404A,R507A,R407C,R502.

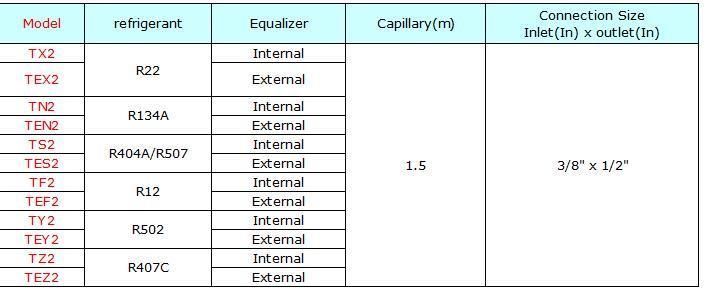

Parameter
Expansion Valve&Expansion Valve-R2 Series, Expansion Valve - V Series

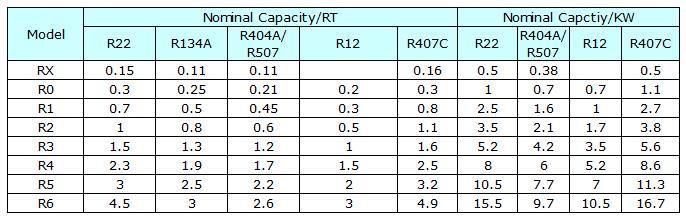

Orifice:
Expansion Valve&Expansion Valve-R2 Series, Expansion Valve - V Series



Expansion Valve - V Series

Expansion Valve&Expansion Valve-R2 Series, Expansion Valve - V Series
Feature:
V series expansion valve widely applied into air-conditioner and various refrigerating devices;
Adopting design with huge & flat stainless steel diaphragm and seat supported by valve needle,to make needle matched with valve port accurately,and get best tightness;
Both of welded tube and valve body adopt high strength silver welding which can further avoid body leakage;
It can provide best performance for air-conditioner and various of refrigerating equipment;
Max.test pressure: 36bar;
Allow working pressure: 28bar.

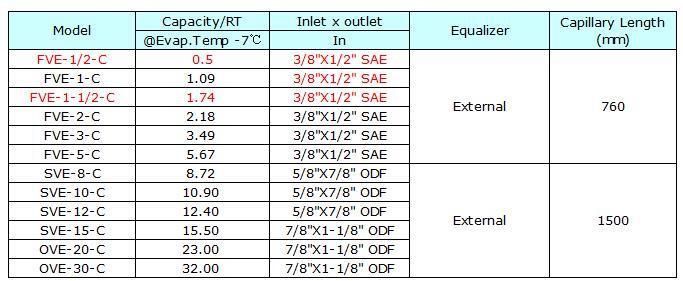

Parameter
Expansion Valve&Expansion Valve-R2 Series, Expansion Valve - V Series

CP100 series Applied into Air-conditioner, Evaporating temperatue range: -25ºC~+10ºC
Expansion Valve&Expansion Valve-R2 Series, Expansion Valve - V SeriesRemark:
Capacity on base of Liquid temperature 38ºC, Work with refrigerant R22;
Equalizer connector size are 1/4" SAE.
