Chinese Factory NPT ISO Threads Instrument Pipe Fittings Stainless Steel Hex Nipples

Sailuoke Fluid Equipment Inc.
  • Standard：ANSI, GB
  • Material：Stainless Steel
  • Connection：Male
  • Head Type：Hexagon
  • Product Name：Hex Nipples
  • Body Material：316 304 Stainless Steel

Base Info

  • Model NO.：THN
  • Size：1,8′′ to 1′′
  • Thread Type：ISO, NPT, Bsp,SAE
  • MOQ：1 Piece
  • OEM：Available
  • Transport Package：Plastic Bag Inside, Carton Outside
  • Specification：1,8′′ to 1′′
  • Trademark：Hikelok
  • Origin：China
  • HS Code：7307290000
  • Production Capacity：1000,Week

Description

MaterialBar stockForgings316 stainless steelThread Type(End Connection)Reference SpecificationNPTASME B1.20.1,SAE AS71051MaterialWorking Temperature RatingºF(ºC)316 stainless steel-65(-53) to 1000(537)Brass-20(-28) to 400(204)Carbon steel-65(-53) to 375(190)BS gaskets(FKM)-5(-15) to 400(204)BG BP gaskets(copper)-5(-15) to 400(204)SAE O-ring (FKM)-5(-15) to 400(204)

  Chinese Factory NPT ISO Threads Instrument Pipe Fittings Stainless Steel Hex NipplesChinese Factory NPT ISO Threads Instrument Pipe Fittings Stainless Steel Hex Nipples
Chinese Factory NPT ISO Threads Instrument Pipe Fittings Stainless Steel Hex Nipples
Chinese Factory NPT ISO Threads Instrument Pipe Fittings Stainless Steel Hex Nipples
Chinese Factory NPT ISO Threads Instrument Pipe Fittings Stainless Steel Hex Nipples
Chinese Factory NPT ISO Threads Instrument Pipe Fittings Stainless Steel Hex Nipples
Certifications

Chinese Factory NPT ISO Threads Instrument Pipe Fittings Stainless Steel Hex Nipples

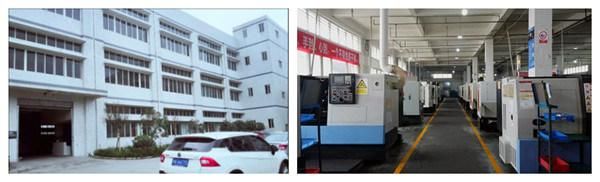

Factory

Chinese Factory NPT ISO Threads Instrument Pipe Fittings Stainless Steel Hex Nipples


FOR MORE INFORMATION, PLEASE FEEL FREE TO CONTACT ME!
