Galvanized Steel Eye Bolt with High Quality
Qingdao Powtech Electronics Co., Ltd.- Material：Galvanized Steel
- Type：Round Head
- Connection：Common Bolt
- Head Style：Round
- Standard：DIN
- Application：Pole Line Hardware
Base Info
- Model NO.：CD
- Finish：Hot Galvanizing
- Color：Silver
- Transport Package：Wooden Case
- Trademark：POWTECH
- Origin：China
- HS Code：7316
- Production Capacity：10000pieces,Month
Description
Basic Info.
Model NO. CD Finish Hot Galvanizing Color Silver Transport Package Wooden Case Trademark POWTECH Origin China HS Code 7316 Production Capacity 10000pieces/MonthProduct Description

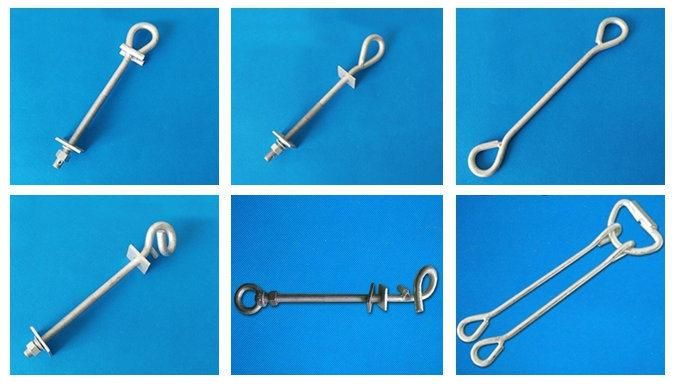

Galvanized Steel Eye Bolt
Name: Forged Oval Eyebolt
Nombre: PERNO CON OJAL
Model:CD
Material: Carbon steel
Finish: Hot Dip Galvanized
Size: 5/8", 3/4"
Length: 4" to 12"
Features: Used for guying, dead-ending, and attaching clevis, suspension insulators and other poleline hardware, herrajes galvanizados. Each oval eye bolts is provided with a regular square nut. All components are hot dip galvanized to meet ASTM A153, Class C specification.
| CATALOG NUMBER | BOLT DIMENSION DIA. A B | MINIMUM TENSILE STRENGTH | APPROX. WEIGHT PER 100 |
| EB586S | 5/8'' 6'' 4'' | 12400 LBS. | 100 |
| EB588S | 5/8'' 8'' 4'' | 12400 LBS. | 118 |
| EB589S | 5/8'' 9'' 4'' | 12400 LBS. | 123 |
| EB5810S | 5/8'' 10'' 6'' | 12400 LBS. | 129 |
| EB5812S | 5/8'' 12'' 6'' | 12400 LBS. | 142 |
| EB5814S | 5/8'' 14'' 6'' | 12400 LBS. | 158 |
| EB5816S | 5/8'' 16'' 6'' | 12400 LBS. | 175 |
| EB5818S | 5/8'' 18'' 6'' | 12400 LBS. | 190 |
| EB5820S | 5/8'' 20'' 6'' | 12400 LBS. | 205 |
| EB5822S | 5/8'' 22'' 6'' | 12400 LBS. | 238 |
| EB5824S | 5/8'' 24'' 6'' | 12400 LBS. | 245 |
| EB5826S | 5/8'' 26'' 6'' | 12400 LBS. | 258 |
| EB5830S | 5/8'' 30'' 6'' | 18350 LBS. | 315 |
| EB5836S | 5/8'' 36'' 6'' | 18350 LBS. | 355 |
| EB348S | 3/4'' 8'' 4'' | 18350 LBS. | 190 |
| EB3410S | 3/4'' 10'' 6'' | 18350 LBS. | 215 |
| EB3412S | 3/4'' 12'' 6'' | 18350 LBS. | 225 |
| EB3414S | 3/4'' 14'' 6'' | 18350 LBS. | 255 |
| EB3416S | 3/4'' 16'' 6'' | 18350 LBS. | 275 |
| EB3418S | 3/4'' 18'' 6'' | 18350 LBS. | 298 |
| EB3420S | 3/4'' 20'' 6'' | 18350 LBS. | 330 |

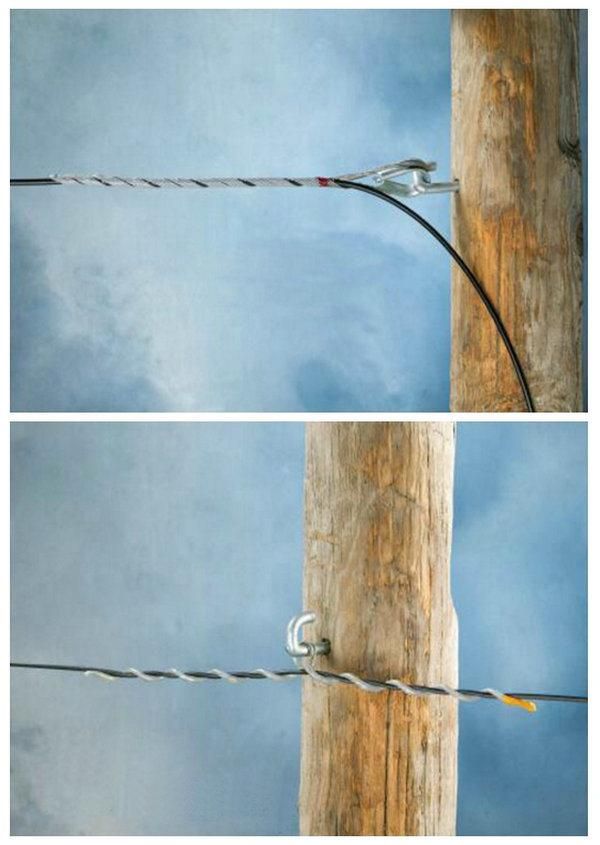

Installation:

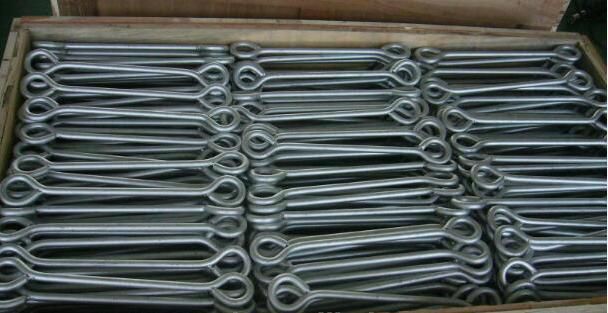

Package:
