ASTM A182 F316L F22 Wn RF Class 900 Stainless Steel So Wn Flange
EZ Steel Industrial Co., Ltd.- Standard：ANSI, DIN, GB, JIS, ISO,ASME
- Type：Welding Flange
- Material：Stainless Steel
- Structure：Flanges
- Connection：Flanged
- Sealing Surface：RF
Base Info
- Model NO.：EZS
- Manufacturing Way：Press
- Size：1,2"-72"
- Materials：CS,Ss,Alloy
- Sch：10,40,80,160,Std,Xh,Xxh,etc
- Types：Weld-Neck
- Face：FF,RF etc
- Delivery Time：7-15days
- Shipment：Container or Bulk Vessel
- Package：Wooden Case or Other Requirment
- Transport Package：Wooden Case
- Specification：#150
- Trademark：EZS
- Origin：Tianjin China
- HS Code：7307210000
- Production Capacity：20000ton,Year
Description
Material:
- CARBON STEEL - ASTM/ASME SA-105, A-350 LF-2, LF-3, A694, SA-516-70, A36
- CHROME ALLOYS - A-182-F-1, F-5, F-6, F-9, F-91, F-11, F-12, F-22
- STAINLESS STEEL - A-182 - F-304, Dual Grade 304/304L, Dual Grade 316/316L, 316, 304H, Dual Grade 304/304H, Dual Grade 316/316H, 316H, 309,
- 310, 317L, 321, 347, 347H, 904L,
- Alloy 20, many other H grades
- ALUMINUM - 3003, 6061, 5083 and other grades upon request.
- HASTALLOY - B-2, C-276, G, X, C-22
- INCONEL - 600, 601, 625, 718
- INCOLLOY - 800, 825, 800H, 800HT
- MONEL - 400
- COPPER - 90/10 (C70600), 70/30 (C71500)
- Duplex - F51/2205, F53/2507
- TITANIUM - Gr2, Gr12

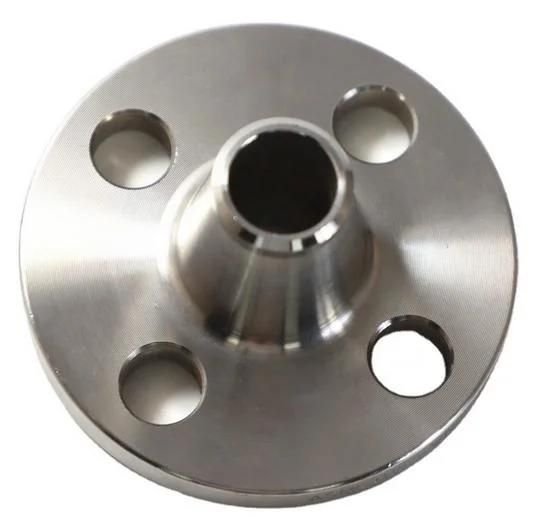

WELD NECK FLANGE
Our most frequently requested flange, the Weld Neck Flange features a neck extension and weld bevel. Provides a natural form connection ideal for larger, high-pressure applications.

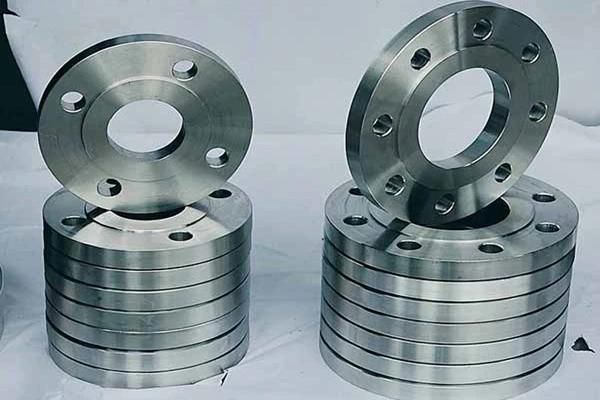

SLIP ON FLANGE
A simple alternative to the Weld Neck flange, a Slip On Flange is designed to accept the pipe into the center/bore, allowing welding around the outer diameter of the pipe.

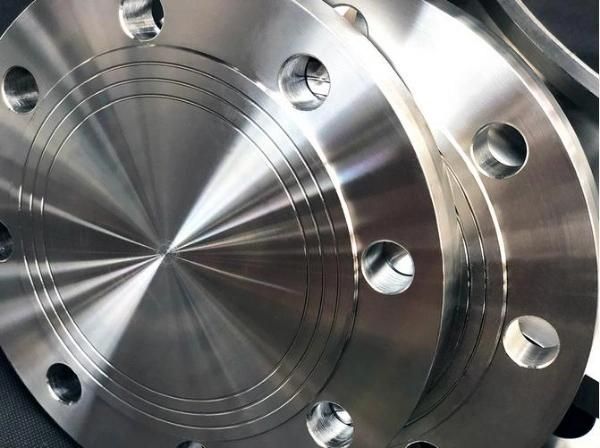

BLIND FLANGE
Designed to cap off a line, a Blind Flange has no bore or inner diameter. They are often altered to include NPT threads or custom bore holes to function as hubless Slip On flanges.

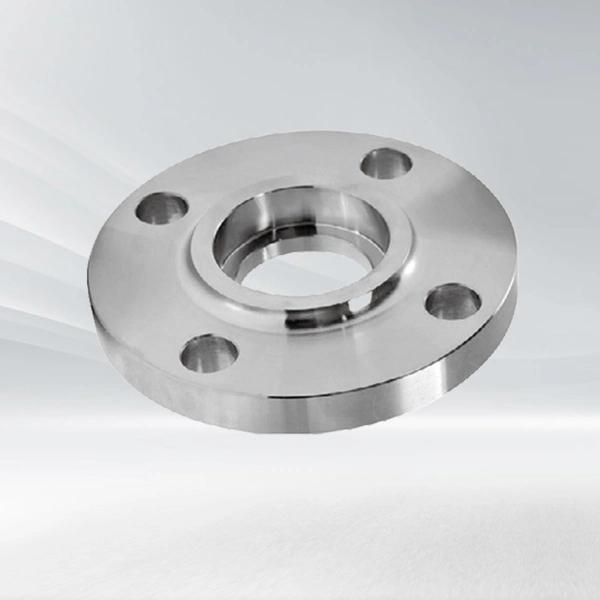

SOCKET WELD / COUNTER BORE FLANGE
Sometimes referred to as Counter Bore flanges, the Socket Weld types have a socket to insert pipe when space limitations make Weld Neck flanges difficult to use.
THREADED / COMPANION FLANGE
Threaded or Companion Flanges contain a female NPT threaded center for connection to male threaded piping. These flanges are commonly implemented in reducing connections.
