DIN933 Hex Bolts in Stainless Steel and Titanium Screws M6*50 Ta2
SHAANXI RUIYANG IMPORT EXPORT CO., LTD.- Material：Stainless Steel
- Type：Hexagon Head
- Connection：Common Bolt
- Head Style：Hexagonal
- Standard：DIN, ANSI, GB, JIS, BSW, GOST
- Grade：6.8
Base Info
- Model NO.：M2-M100
- Application：Machinery, Chemical Industry, Environmental, Building
- Finish：Polishing
- Steel：CS, Alloy
- Stainless Steel：304, 316, 201, 310, 904L, 2507, 2205
- Titanium：Gr1-Gr23
- Nickle Alloy：N4, N6, C276
- Transport Package：Carton Box
- Specification：M2-100
- Trademark：Ruiyang
- Origin：China
- HS Code：731815
- Production Capacity：500tons Per Month
Description
Zinc(Yellow,White,Blue,Black),Hop Dip Galvanized(HDG),Black Oxide,
Geomet,Dacroment,anodization,Nickel plated,Zinc-Nickel plated

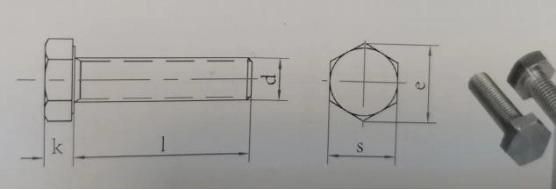

Size:
| d | k | e | s |
| M3 | 2 | 6.01 | 5.5 |
| M4 | 2.8 | 7.66 | 7 |
| M5 | 3.5 | 8.79 | 8 |
| M6 | 4 | 11.05 | 10 |
| M8 | 5.3 | 14.38 | 13 |
| M10 | 6.4 | 18.9 | 17 |
| M12 | 7.5 | 21.1 | 19 |
| M14 | 8.8 | 24.49 | 22 |
| M16 | 10 | 26.75 | 24 |
| M18 | 11.5 | 30.14 | 27 |
| M20 | 12.5 | 33.53 | 30 |
| M22 | 14 | 35.72 | 32 |
| M24 | 15 | 39.98 | 36 |
| M27 | 17 | 45.2 | 41 |
| M30 | 18.7 | 50.85 | 46 |
| M33 | 21 | 55.37 | 50 |
| M36 | 22.5 | 60.79 | 55 |
| M42 | 26 | 71.3 | 65 |
| M48 | 30 | 82.6 | 75 |

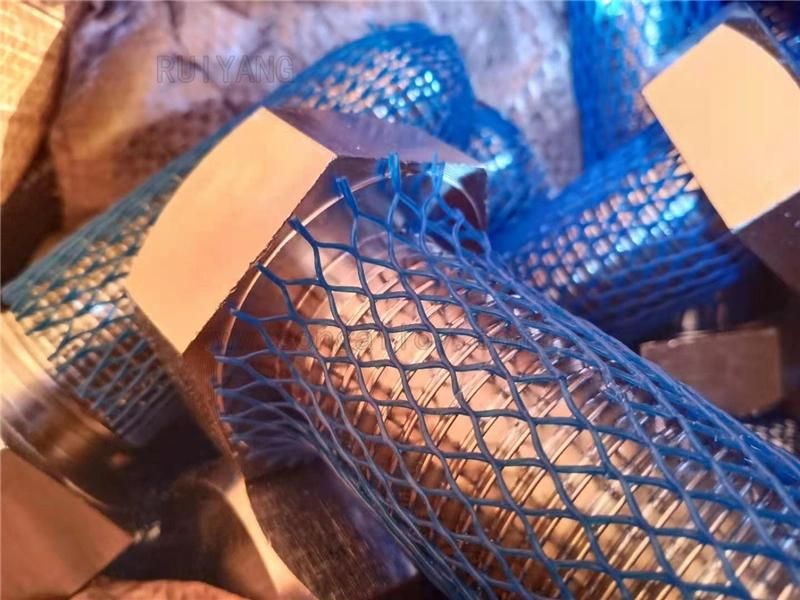

Package:

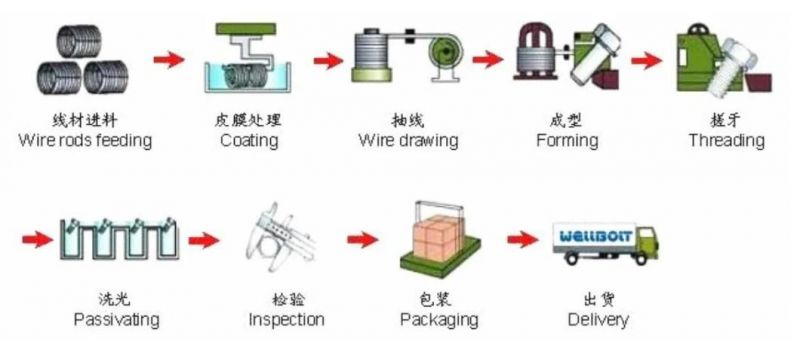

Production Lines
Delivery:DHL,FCL,LCL,BY Sea or by Air
Welcome contact us for stainless steel and Titanium hex bolt and nuts washers inquiry,Here will supply you one stop service fasteners
