• Model NO.：GFS
• Specification：1,8 to 1 inch
• Trademark：Hikelok
• Origin：Chengdu, China
• HS Code：7307290000
• Production Capacity：50000 Pieces,Year

Basic Info.

Model NO. GFS Specification 1/8 to 1 inch Trademark Hikelok Origin Chengdu, China HS Code 7307290000 Production Capacity 50000 Pieces/Year

Product Description

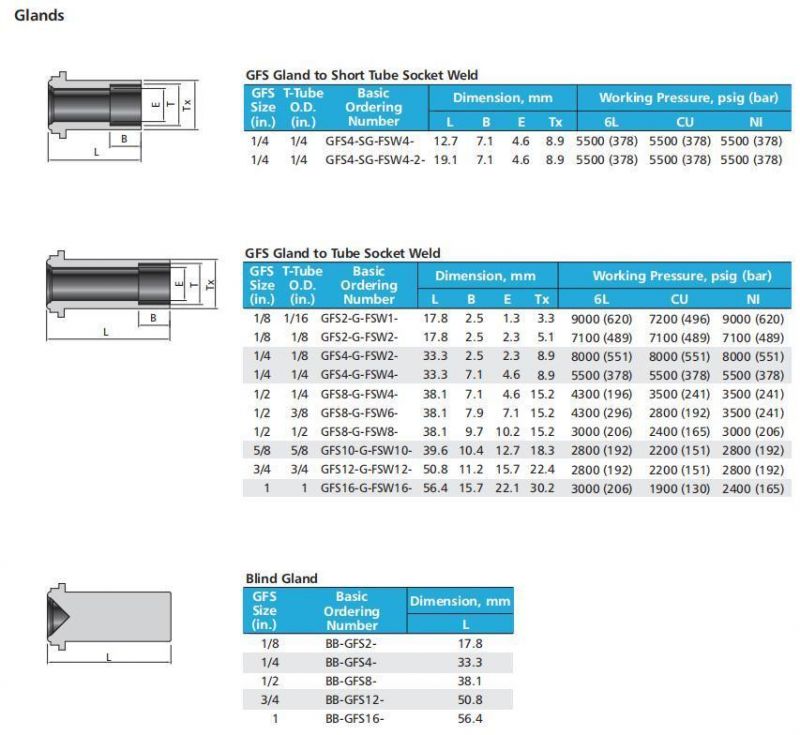

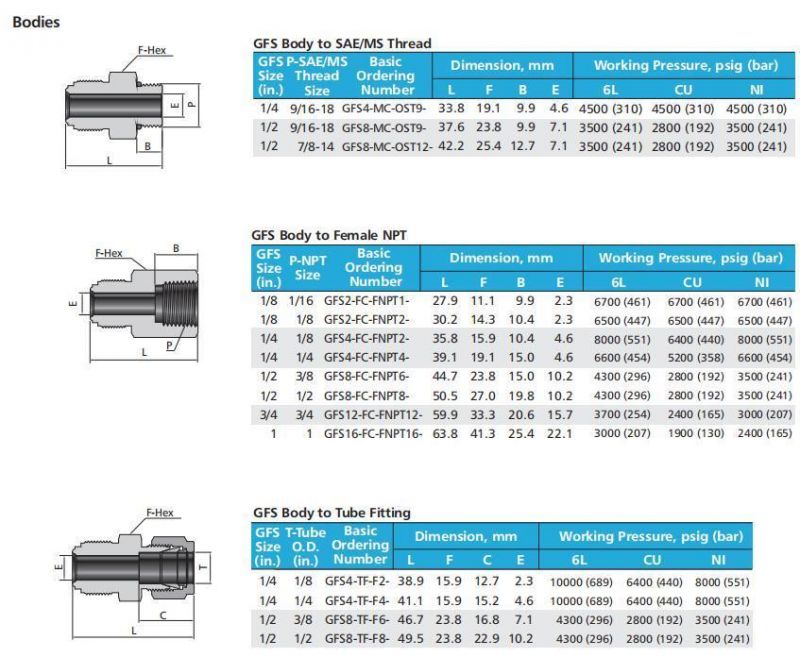

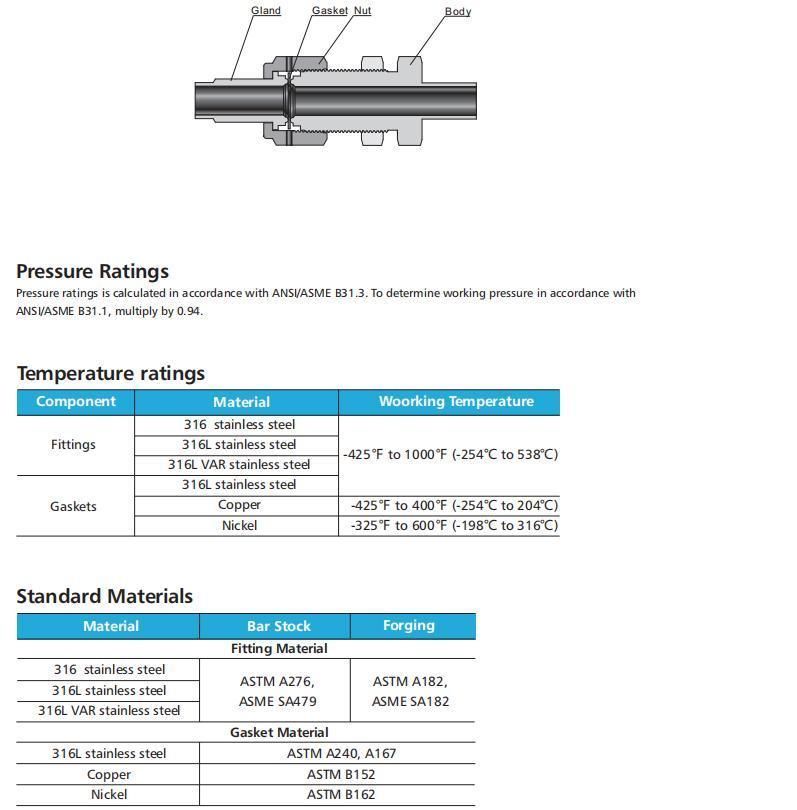

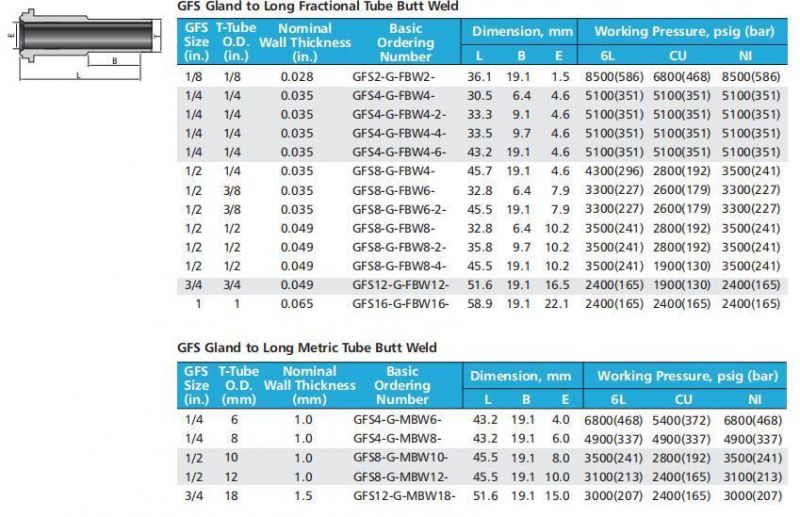

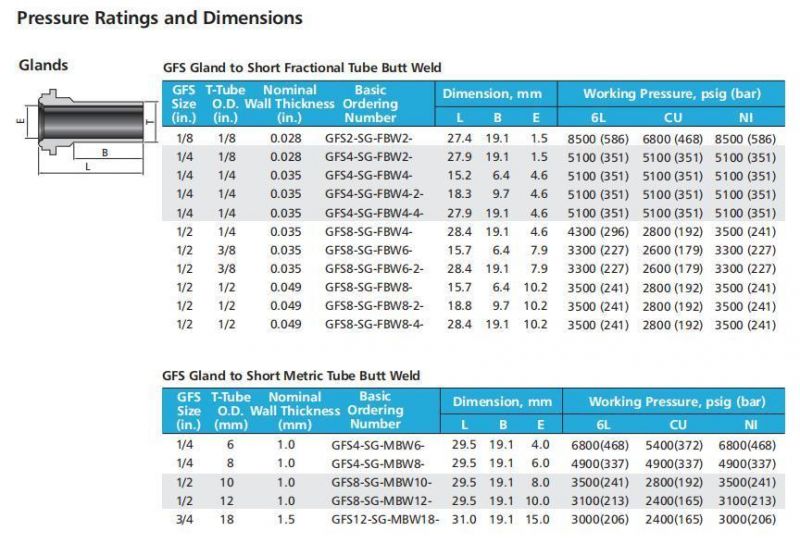

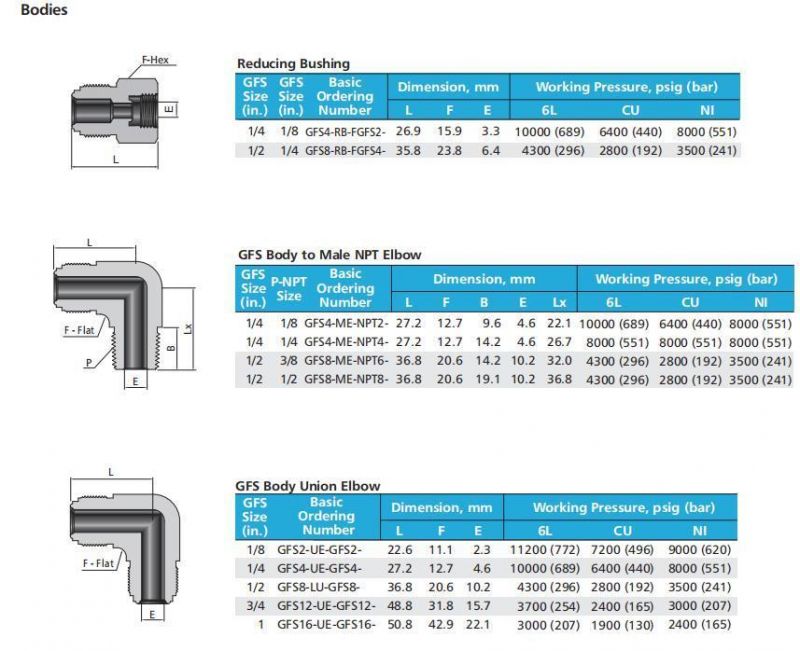

Metal Gasket Face Seal Fittings

* Metal-to-metal seal provides perfect leak-tight service from critical vacuum to high pressure
* Female threads are silver plated to prevent galling
* Two test port for easy leak testing
* Non-rotational female nut to prevent transmission of torque
* Smooth transition into the internal diameter minimizes entrapment areas
* Standard surface finish on glands and bodies is a roughness average of 10μin. (0.25μm) Ra
* Sizes from 1/16 to 1 inch
* 316, 316L and 316L VAR (Vacuum Arc Remelt) stainless steel materials are available
