• Model NO.：SG 1,4S
• HS Code：841899100
• Production Capacity：1000000 Pieces Per Week

Basic Info.

Model NO. SG 1/4S HS Code 841899100 Production Capacity 1000000 Pieces Per Week

Product Description

Sight Glass

Feature:
Aplicable medium: R22,R134a,R404a,R407c,R410a,R507c and so on;
Applicable medium temperature:-40ºC~+80ºC,  Applicable environment temperature:-30ºC~+80ºC;
Maximum working pressure:4.2Mpa.
Independent glass and the O-type ring structure;
Moisture indicator can display different colors according to the different water content of the refrigerant.

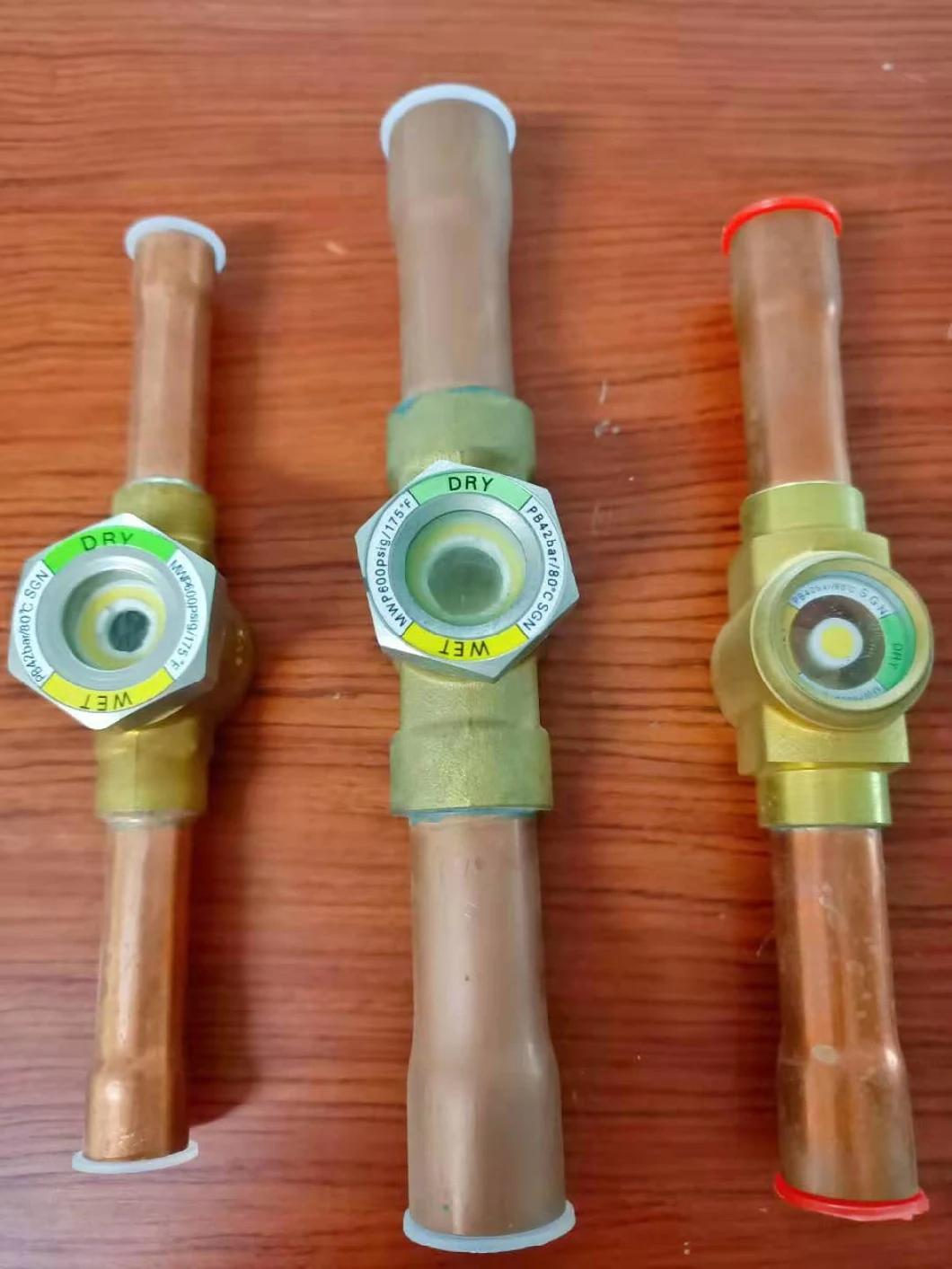

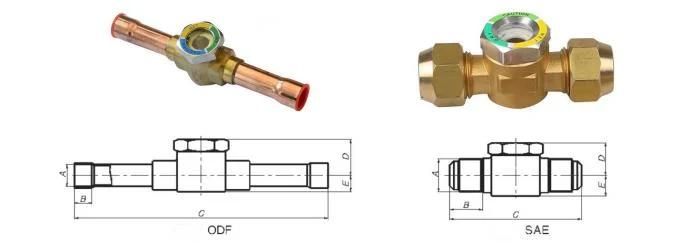

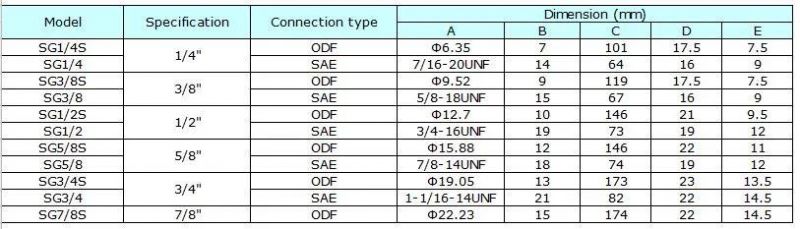

Sight Glass - SG Series



Pararmeter

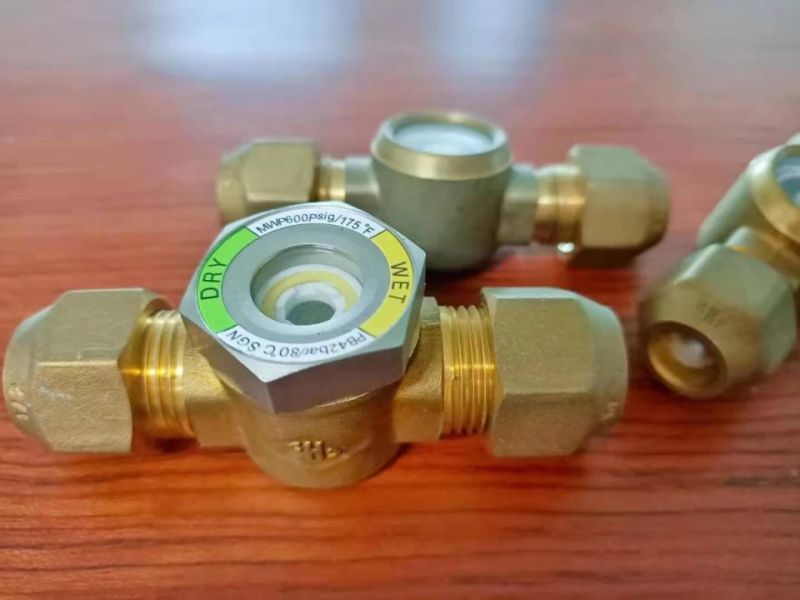

Sight Glass - SGD Series

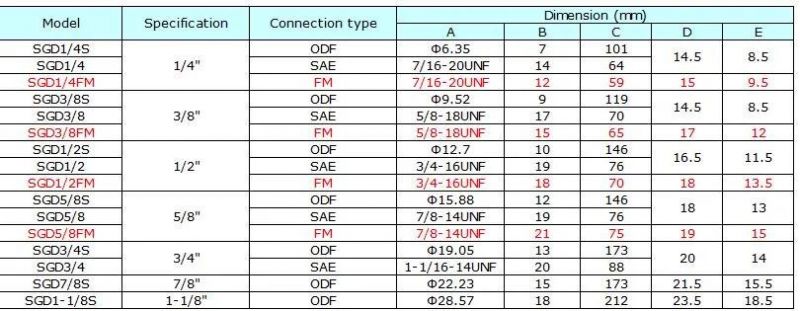

Parameter



Feature:
Explosion-proof structure,clear and safe observation window;
The sealing material is applicable to varieties of refrigerant and refrigeration oil, excellent sealing performance;
Moisture indicator can display different colors according to the different water content of the refrigerant.
