• Model NO.：M10
• Application：Machinery, Building
• Finish：Color-Zinc Plated
• Material Type：Q195,235
• Popular Size：6*60, 8*80, 10*100, 12*100, 16*150, 20*150
• Length：40-400mm
• Diameter：M6-M20
• OEM Box：Yes
• MOQ：20000 PCS
• Bolt Size：M10
• Sleeve Size：M12
• Bolt Length：70mm
• Bolt Head：12mm
• Drill Size：12mm
• Hole Depth：70mm
• Transport Package：White Box+Plain Carton+Pallet
• Specification：M10*12*70
• Trademark：OEM
• Origin：Hebei
• HS Code：7318190000
• Production Capacity：200 Tons , Month

Basic Info.

Model NO. M10 Application Machinery, Building Finish Color-Zinc Plated Material Type Q195/235 Popular Size 6*60, 8*80, 10*100, 12*100, 16*150, 20*150 Length 40-400mm Diameter M6-M20 OEM Box Yes MOQ 20000 PCS Bolt Size M10 Sleeve Size M12 Bolt Length 70mm Bolt Head 12mm Drill Size 12mm Hole Depth 70mm Transport Package White Box+Plain Carton+Pallet Specification M10*12*70 Trademark OEM Origin Hebei HS Code 7318190000 Production Capacity 200 Tons / Month

Product Description

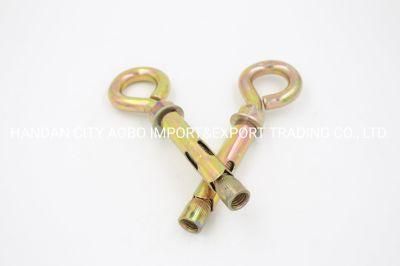

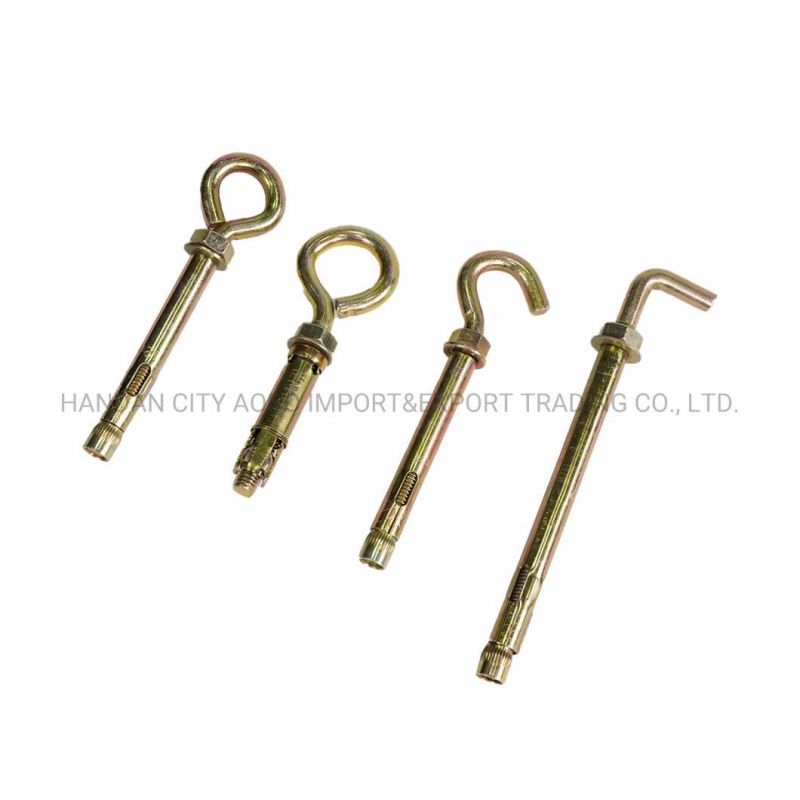

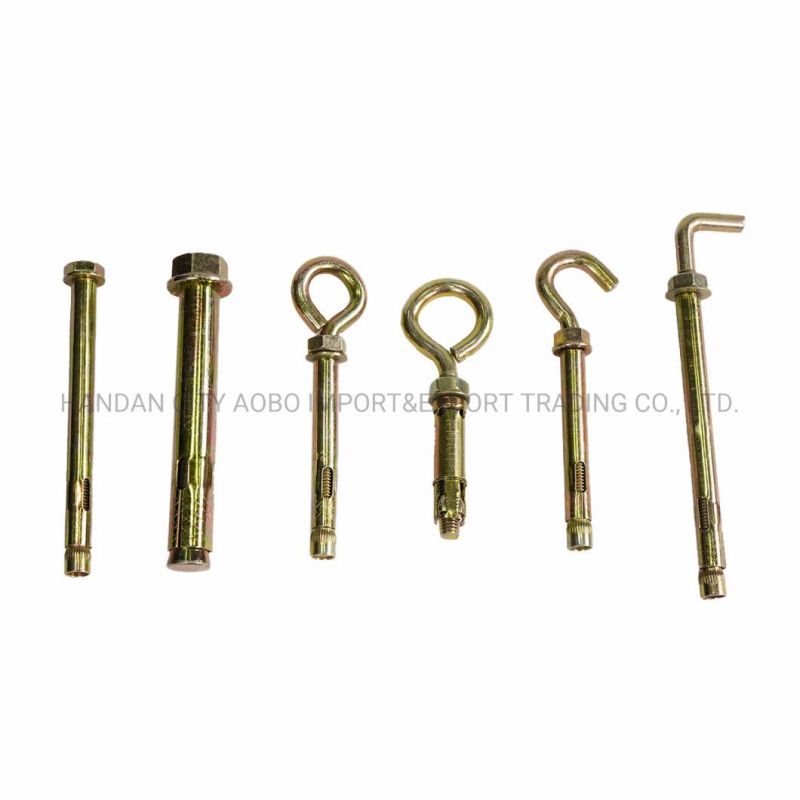

Sleeve Anchor with eye hook bolt

Sleeve Anchor, is a kind of light-duty anchors, used for transmission installation. While tightening the nut or bolt, the conical head of bolt is pulled in the expansion sleeve, making the expansion sleeve expanded and pressed against the wall of the drilling hole.


Dimensions	d ( +0-0.3)	D (±0.3)	L2 (±2)	L1 (±2)
8*45	6	8	35	45
8*60	6	8	50	60
8*65	6	8	55	65
8*80	6	8	70	80
8*85	6	8	75	85
8*90	6	8	80	90
8*100	6	8	90	100
10*50	8	10	40	50
10*60	8	10	50	60
10*80	8	10	70	80
10*100	8	10	90	100
10*130	8	10	120	130
10*150	8	10	140	150
12*65	10	12	50	65
12*80	10	12	65	80
12*100	10	12	85	100
12*120	10	12	105	120
12*130	10	12	115	130
12*150	10	12	135	150
16*110	12	16	90	110
16*150	12	16	130	150
20*110	16	20	85	110
20*140	16	20	125	150
20*200	16	20	175	200

Company Profile
    HANDAN CITY AOBO IMPORT&EXPORT TRADING CO., LTD is a company specializing in the production of series high-end building fasteners, combining the researching, manufacturing and trading together.
      We aim to provide service to society, forming a wide range of marketing services network in the aspects of business management and scientific research and development. That strengthens the contact with our customers.

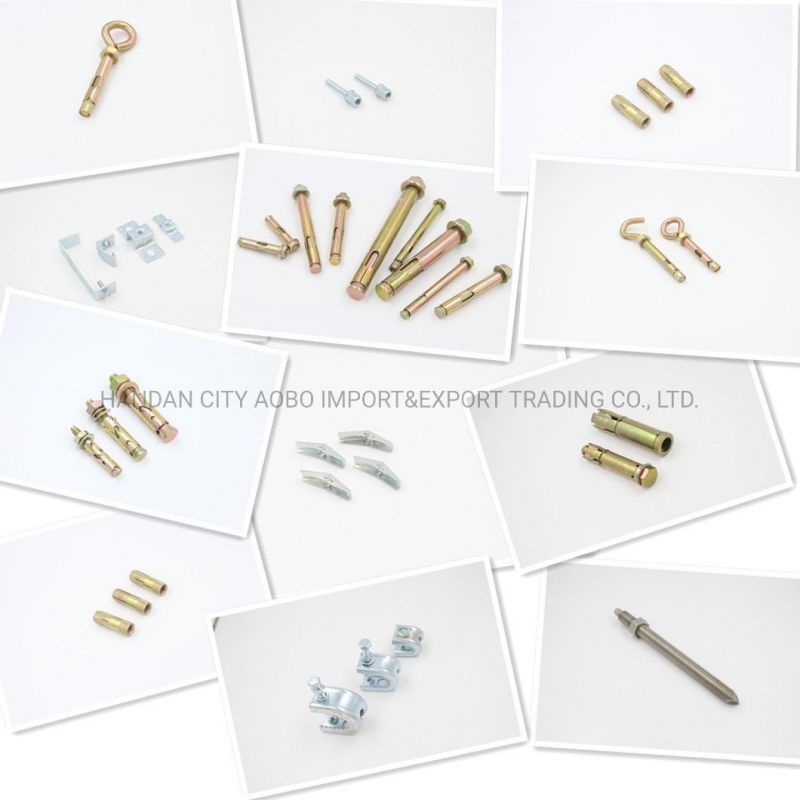

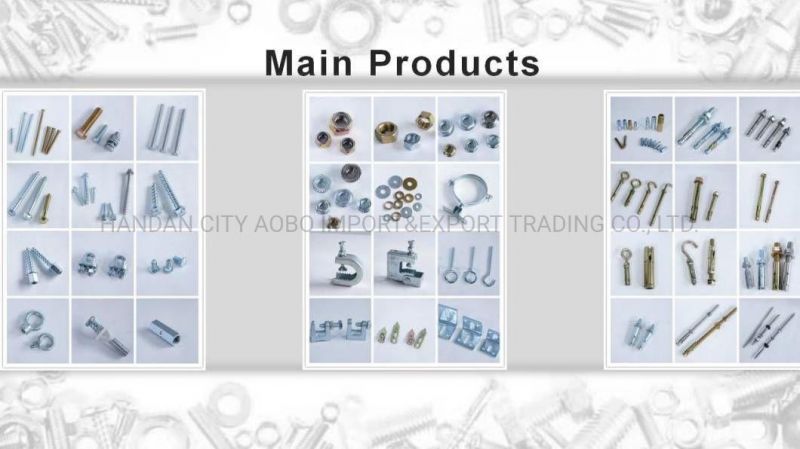

      The mainly products of our company are Anchors, Bolts, Nuts, Screws, Clamps, Washers, Rivets, Riggings and so on.
      Our products are popular in nationwide, considering to be a model by the customers.We insist on provide more high quality service for the customers with powerful strength and strong technology.
We awards ISO 9001:2000 international quality management system certification, the quality contract of PICC and The seventh consumer trust units in hebei province.



Related Products


FAQ

Q: Are you trading company or manufacturing?
A: We are manufacturer and exporter from China, our factory located at Handan City, Hebei Province,China.

Q: How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.

Q: Do you provide samples? Is it free or extra?
A: Yes,we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance,payment>1000 USD, 30% T/T in advance, balance before shippment.
