Polymer Insulator Fitting Clevis and Tongue
Qingdao Cosine Electrical Equipment Co., Ltd.- Standard：DIN, ANSI
- Material：Medium Carbon Steel
- Surface Treatment：Galvanized Sheet
- Phase：Composite Insulator
- Transport Package：by Ply-Wood Case or as Requests
- Specification：IEC
Base Info
- Model NO.：120KN
- Trademark：CIE
- Origin：China
- HS Code：73269090
- Production Capacity：100000sets
Description
Basic Info.
Model NO. 120KN Trademark CIE Origin China HS Code 73269090 Production Capacity 100000setsProduct Description
1. Item Name: Clevis and Tongue for polymer insulator2. The material of clevis and tongue is forged steel.

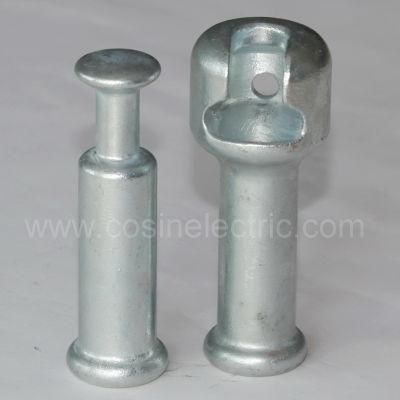

Polymer Insulator Metal fitting `s material range from casting-steel, forged-steel. And our products include socket&ball, Tongue&clevis, Y-clevis, oval-eye, base flange, cross-arm, two hold blade and horizontal clamp...
The max SML (specified mechanical Load) of our forged-steel product can reach 700KN. The product rate is from 45KN to 700KN.
If you have any interest on clevis and tongue, please kindly send us your drawings of clevis and tongue
| NO. | SML | d1 | d2 | D | L1 | L2 | B1 | B2 |
| 1 | 45KN | 18 | 16 | 26 | 85 | 86 | 14.5 | 18.5 |
| 2 | 70KN | 19 | 16 | 26 | 87 | 95 | 16 | 22 |
| 3 | 120KN | 20 | 18 | 28 | 117 | 115 | 16 | 18 |
| 4 | 160KN | 24 | 24 | 36 | 168 | 173 | 16 | 19 |
| 5 | 210KN | 24 | 24 | 36 | 168 | 173 | 19 | 22 |
