• Raw Material：Carbon Steel Swrch15A, Swrch18A, S235j2+C450
• Length：40-450mm
• Tensile Strength：No Less Than 450n,mm2
• Yield Point：No Less Than 350n,mm2
• Elongation：No Less Than 15%
• Transport Package：Cartons,Pallets
• Specification：Dia 10, 13, 16, 19, 22, 25
• Trademark：IKING
• Origin：China
• HS Code：7318290000
• Production Capacity：8000 Tons,Month

Basic Info.

Raw Material Carbon Steel Swrch15A, Swrch18A, S235j2+C450 Length 40-450mm Tensile Strength No Less Than 450n/mm2 Yield Point No Less Than 350n/mm2 Elongation No Less Than 15% Transport Package Cartons/Pallets Specification Dia 10, 13, 16, 19, 22, 25 Trademark IKING Origin China HS Code 7318290000 Production Capacity 8000 Tons/Month

Product Description

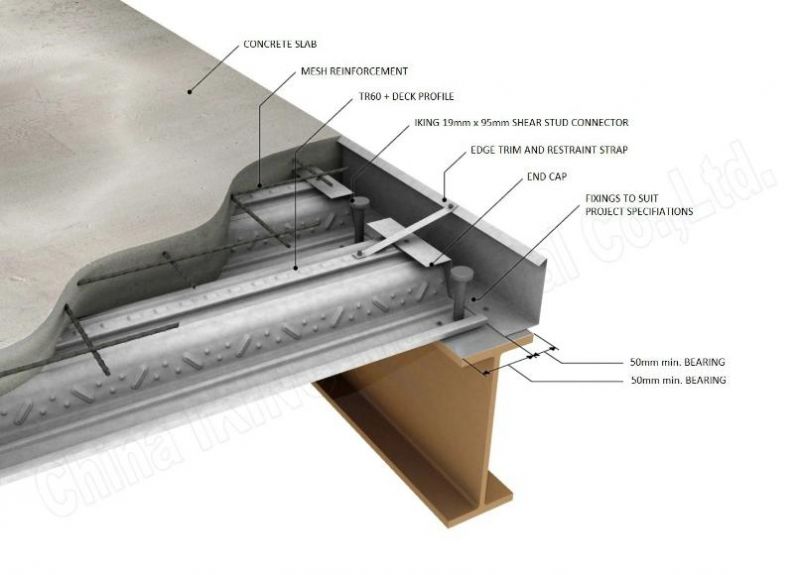

Shear Connector Studs are designed to tie the concrete slab to the steel beams and to resist shear loading between the concrete slab and steel beam in composite construction.

Features:
1. Shear Connector Studs are designed to tie the concrete to the steel beams and to resist shear loading between the concrete slab and steel beam in composite construction.

2. Shear studs are used in stud welding to secure steel framed buildings to create a shear connection between the steel and the concrete. We supply and fix all available sizes of welded shear studs for through deck and straight to steel welding.

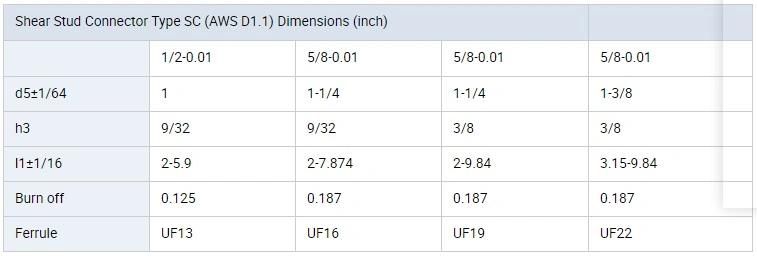

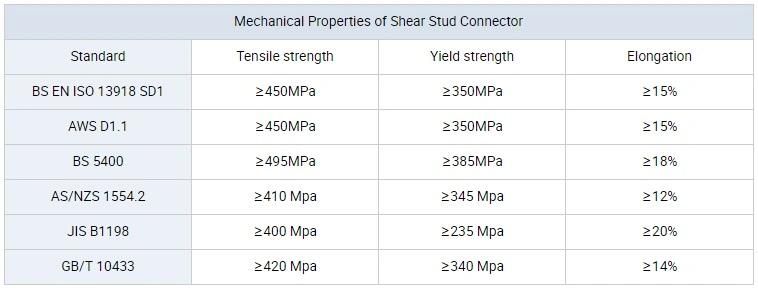

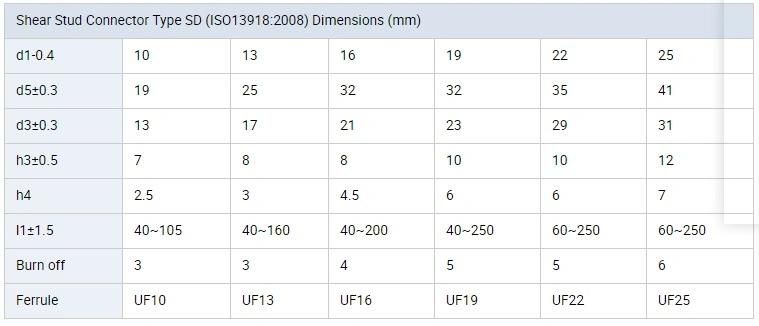

Technical Data

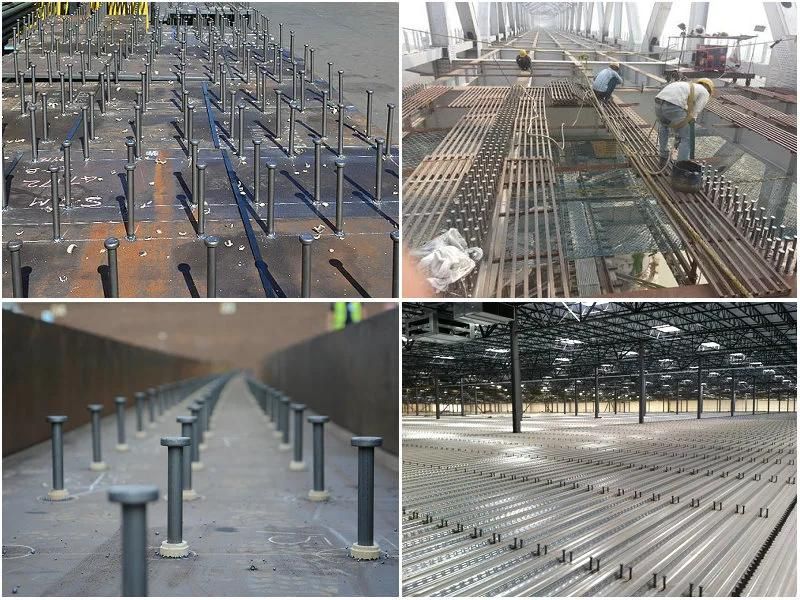

Application

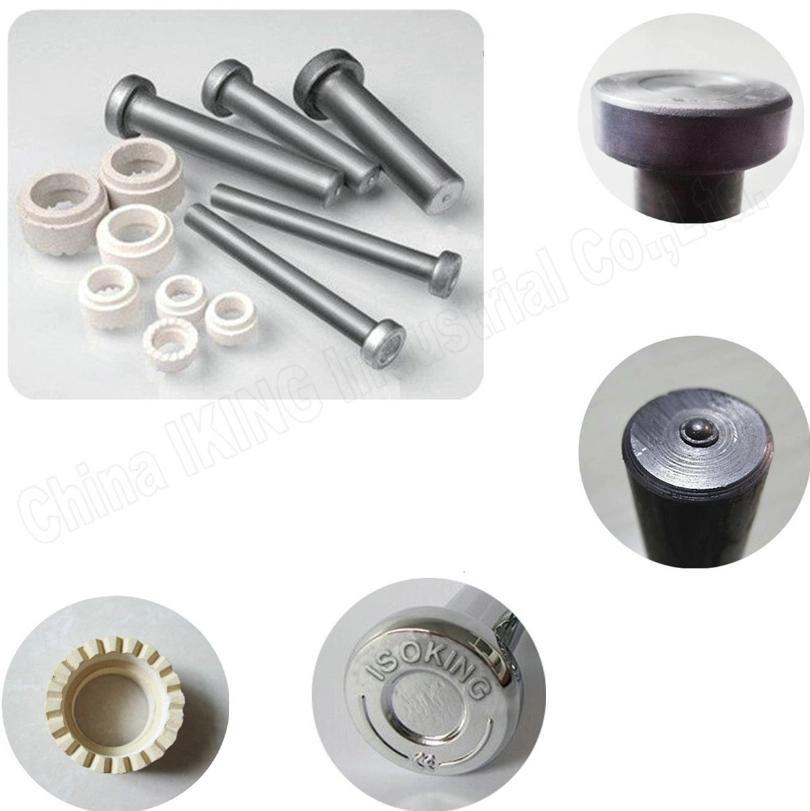

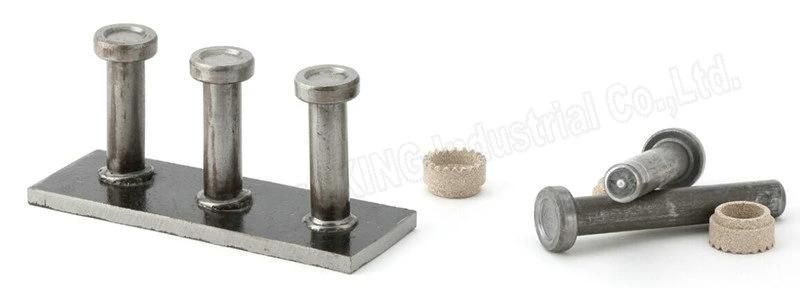

ISO13918 Shear studs with ceramic ferrules

IKING shear connector studs are made of a material suitable to be welded by arc melting.The dimensions and design of the connector are in accordance with the BS - EN ISO13918:2008. Widely used on the bridge, steel deck, steel construction etc.

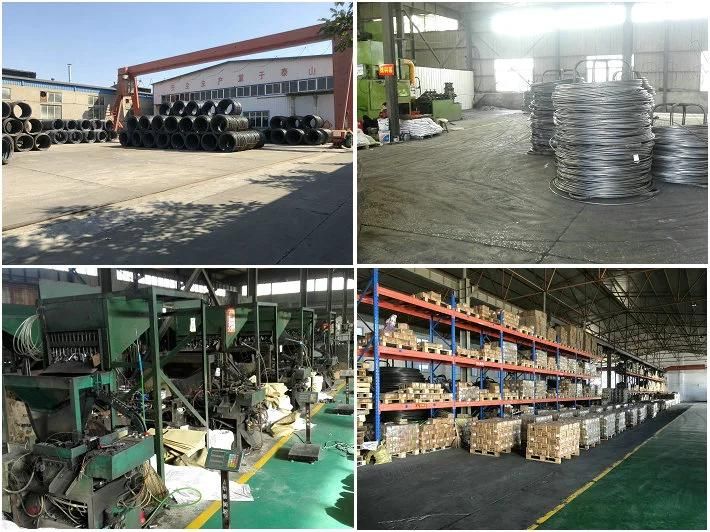

Our Company

China IKING Industrial co.,Ltd

We, China IKING Group, are the manufacture of stud connectors and welding machines, and with over 30 years outstanding experiences in this field, quality products can be supplied with CE, ISO certificate etc. Honorable clients of China IKING includes NELSON STUD (China), SWP (UK), CSCEC etc., and all that successful experience would pave the way for our successful cooperation in the future.YOUTUBE: https://youtu.be/mr-sCqk57VE

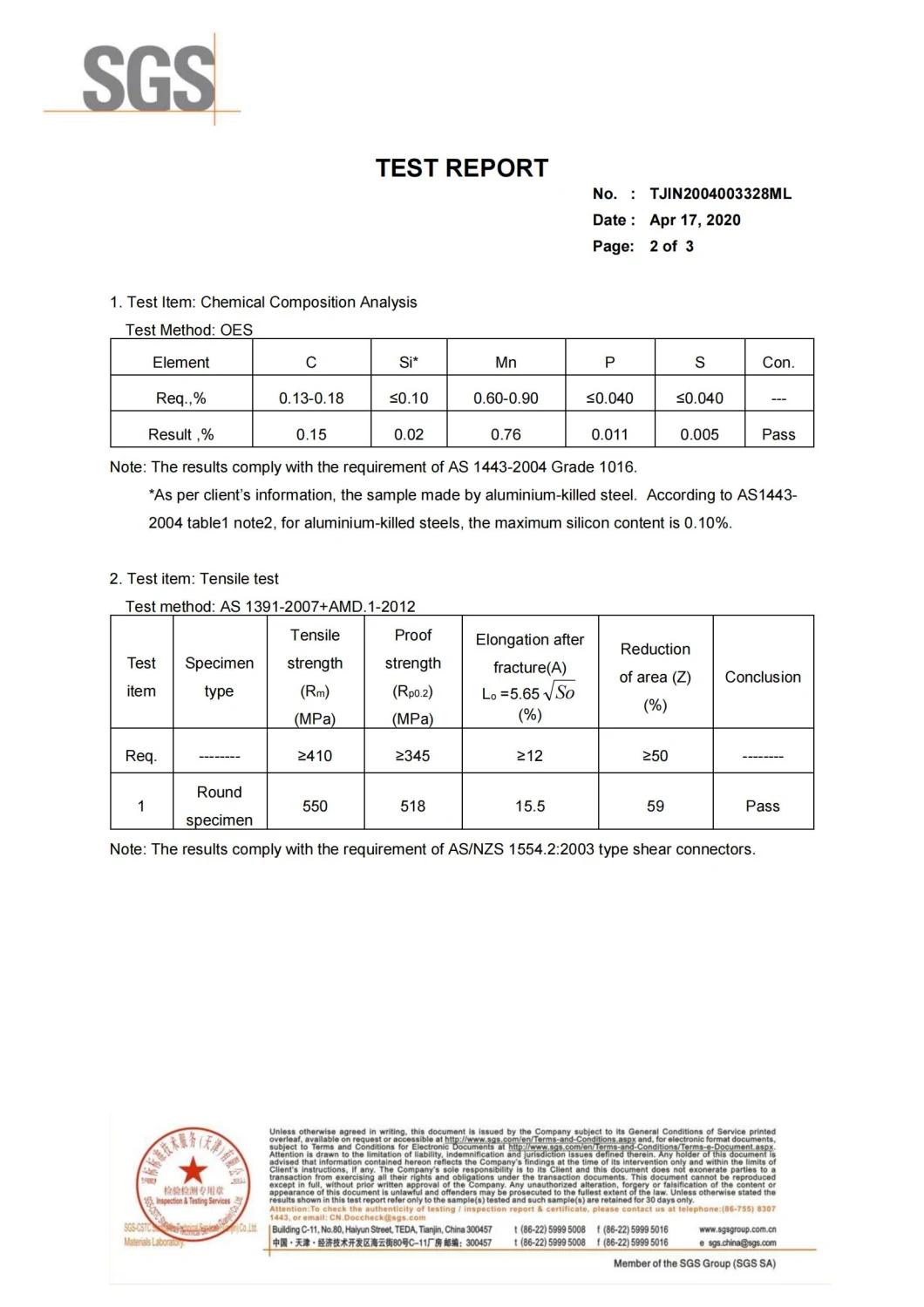

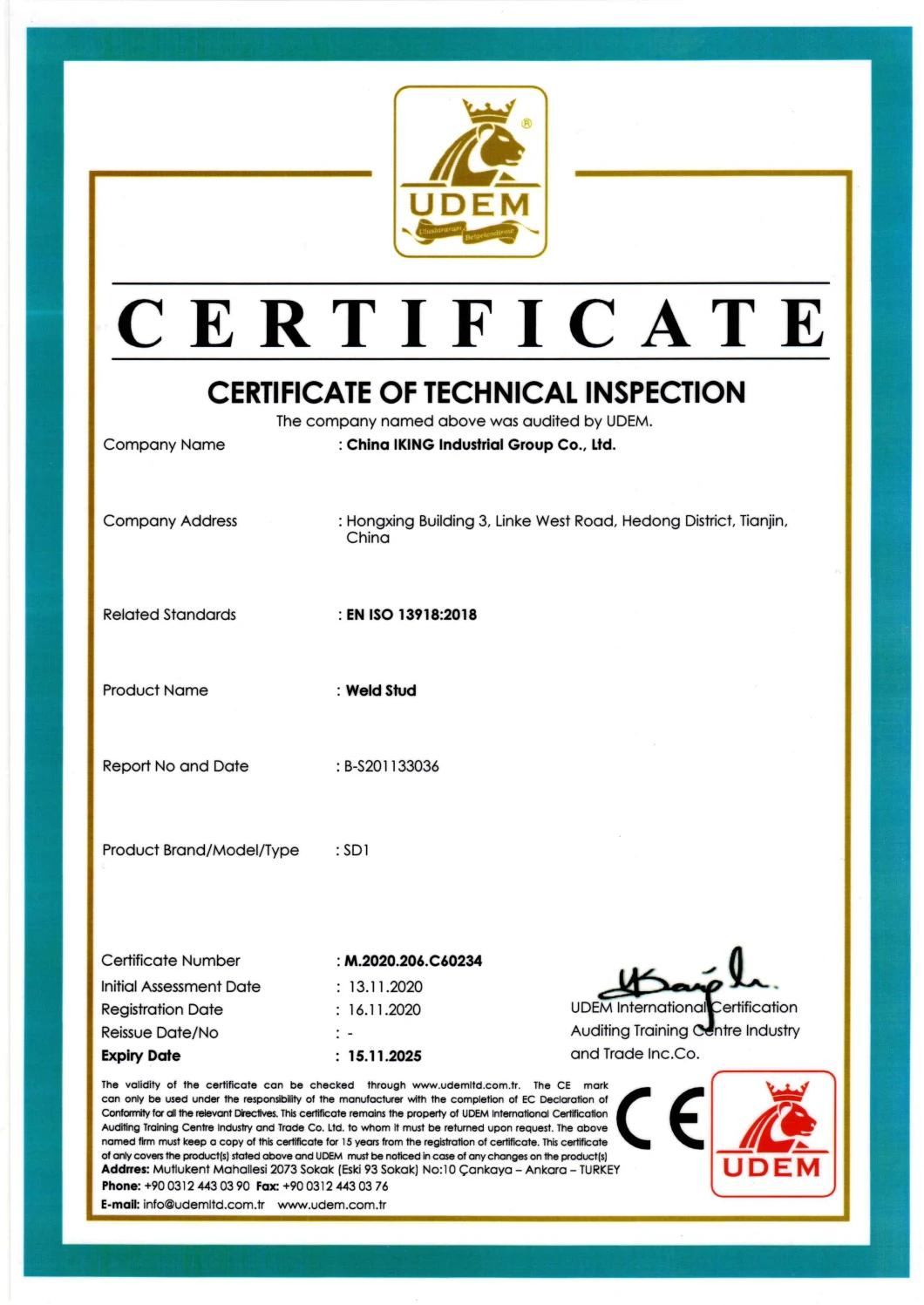

Certificate

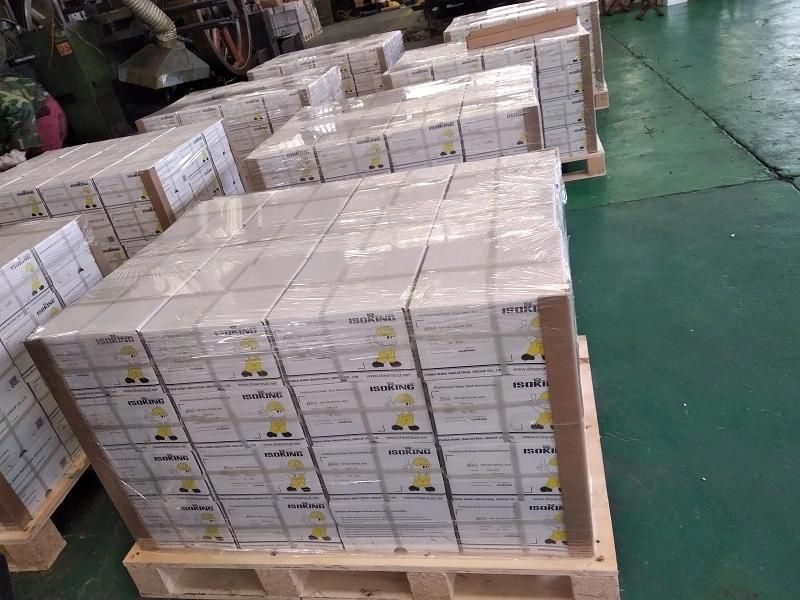

Packing & Delivery
 Cartons+wooden pallet1. 25 kgs per carton, 48 cartons/1200KG per pallet.
2. Generally speaking, 1 x 20' GP container can load about 16-20 pallets.

FAQ

Why choose our China IKING INDUSTRIAL GROUP shear studs?

1.We choose the quality mild carbon steel(SWRCH18A) from Xingtai Steel Factory.
2.We do phosphorization pretreatment for the raw material using drawing machine.

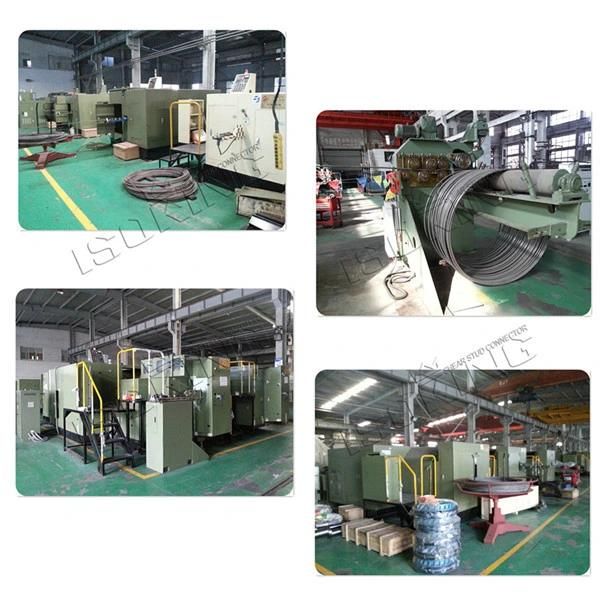

3.We purchase the multi-station cold forging machine from the biggest factory in Zhejiang Province to ensure the better mechanical property of shear connector to match the standard(BS EN ISO13918:2008, AWS D1.1, etc.), or as per customer's special requirement.
4.We use the automatic riveting machine to install aluminum ball on the end.
5.After rust prevention, IKING's shear connector can suitable for long time ship on the sea.
6.Short delivery time because of our reasonable production flow management
