Pressure Resistant Pneumatic Plastic Brass Compressor Combination & Joint Fittings
Ningbo Hi-Tech Smart Machinery Co., Ltd.- Transport Package：Plastic Bags, Carton
- Specification：CE ISO
- Trademark：SMART
- Origin：China
Base Info
- Production Capacity：3000000 Per Month
Description
Basic Info.
Production Capacity 3000000 Per MonthProduct Description

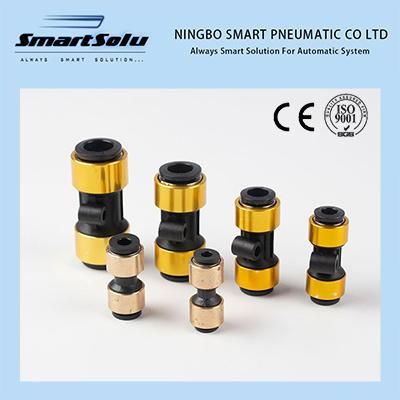

Pressure Resistant Pneumatic Plastic Brass Quick Coupler Air Compressor Push-in Fittings
Material: Copper + plastic
Features: explosion proof, withstand voltage up to 30bar
Application: mainly used in the automotive industry
Performance:
Composite DOT-certified push-to-connect fittings are manufactured with a polymer body and brass screw threads and holding mechanisms. They utilize a collet to grip tubing, plus an elastomeric sealing mechanism to complete the tube end seal, allowing for a relatively foolproof assembly with no additional tools other than a tube cutter.Like their brass counterpart, Prestomatic (PMT), composite PTC fittings do not rust or corrode. The internal push-to-connect sealing mechanism affords a strong and dependable seal robust enough to meet all DOT parameters and to withstand high and low-temperature extremes.
Applications:
Air Brakes , Air Tanks , Air Ride, Sliders, Tire Inflation, Primary & Secondary, Air Lines, Cab Controls
Technical data:
Pressure Range Up to 250 PSI (17.2 bar)
Temperature Range -40 to +200 F (-40 to +93.3 C)
Compatible Tubing: SAE J844 Type A & B nylon tubing
Product Features:
Brass Collet
Buna N O-ring
Stainless Steel Tube Support
Meets D.O.T. FMVSS571.106
Meets SAE J2494-3
Composite Body - Strong, Lightweight, Compact and Impact Resistant
Plug-in configurations
Size:
PU04,05,06,08,10,12,14MM
Attention: Smartsolu accept Custom Made for Composite DOT Fittings any sizes and types
Our packing
Our Advantage
1. Our company has more than ten years of experience in the production of pneumatic components. We have a wide range of products, such as: blue plastic button, black button, O-ring g-thread.
2. Our factory has a very strong production capacity. We have a highly automatic production line, all customers can receive the goods they need in a short time.
3. We are committed to producing high quality pneumatic components. Good performance in quality and cost. In China, few factories can offer the same price based on the same quality.
