Crane rail Accessories - Fish Plate for P rail / QU rail

Crane rails are designed for carrying heavy loads and are used in a wide variety of applications. There are seven normal crane rail models called P18, P24, P38, P43, QU70, QU80, QU100 in China. Rail weight ranges from 18kg to 88kg per meter. You can find a weight and measure conversion table on to us if you need.

Each rail application is different and must be engineered to maximise efficiency and lifespan, therefore the selection of the correct rail is critical to achieving this end.

Type	C	B	A	D	Weight (kg/m)	Standard
P18	40	80	90	10	18.06	YB222-63
P24	51	92	107	10.9	24.46	YB222-63
P22	50.8	93.66	93.66	10.72	22.3	GB11264-89
P30	60.33	107.95	107.95	12.3	30.1	GB11264-89
P38	68	114	134	13	38.72	GB183-63
P43	70	114	140	14.5	44.65	GB183-63
P50	70	132	152	15.5	51.51	GB 183-63
QU70	70	120	120	28	52.8	GB3426-82
QU80	80	130	130	32	63.69	GB3426-82
QU100	100	150	150	38	88.96	GB3426-82
QU120	120	170	170	44	118.1	GB3426-82

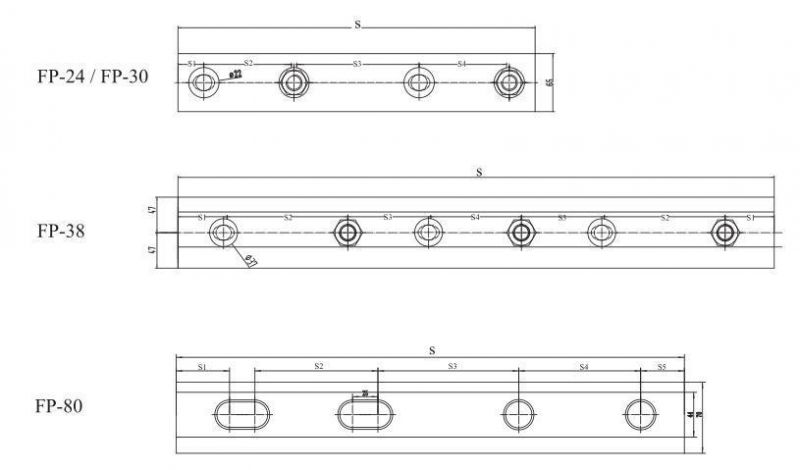

Model	S (mm)	S1 (mm)	S2 (mm)	S3 (mm)	S4 (mm)	S5 (mm)	Rail Size
FP-24	400	29	98	137	98	-	P18/ P22/ P24
FP-30	490	36	128	127	128	-	P30
FP-38	790	65	160	110	120	-	P38/ P43
FP-80	500	52.5	121	138.5	120	43	QU70/ QU80
