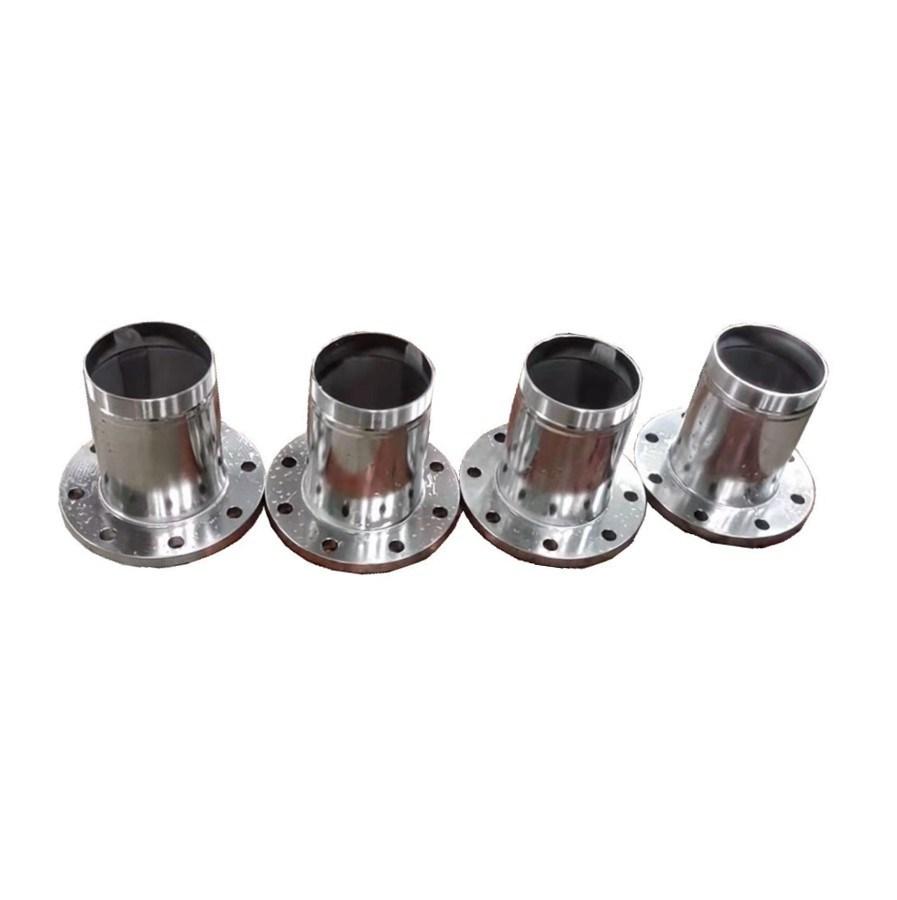

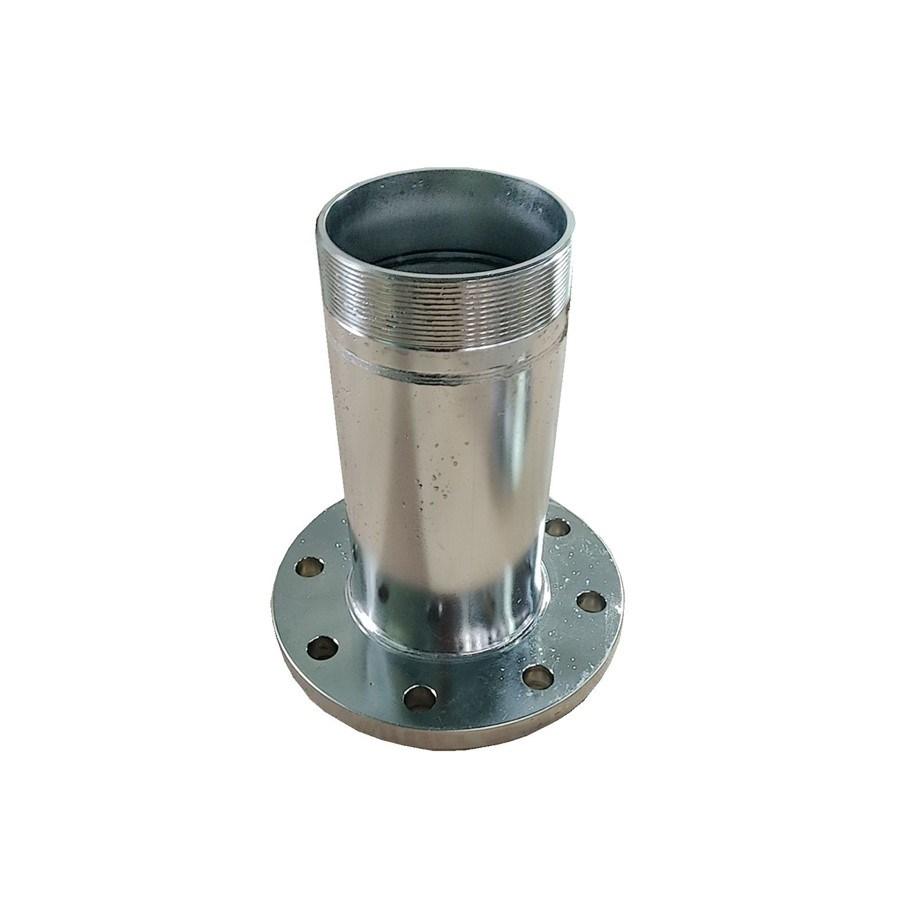

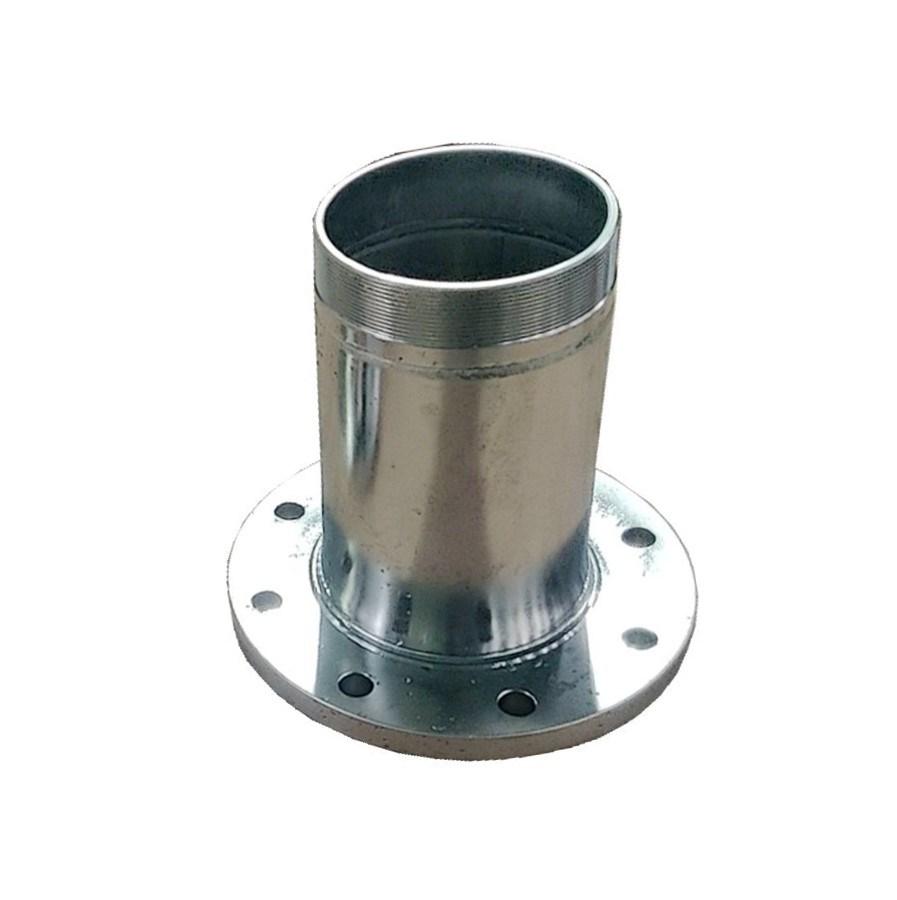

AISI 304 Stainless Steel Flange Nipples
Yurong Stainless Steel Products Co., Ltd.- Standard：ANSI, DIN, GB, JIS, GOST, BSW, Unstandard
- Type：Welding Flange
- Material：Stainless Steel
- Structure：Flanges
- Connection：Welding
- Manufacturing Way：Forging
Base Info
- Model NO.：Flange
- Body：Ss 304, Ss 316
- Length：200mm-5000mm, Per Customization
- Wall Thickness：1.5mm-2mm
- Pressure：16 Bar, 25 Bar
- Production：Per Your Drawings
- Application System：Booster Pump System, Fire System, Other Water Sys
- Surface Treatment：Electrolytic Polishing, or Per Requirement
- Welding：TIG
- Connection Way：Thread, Flange, Groove Connection
- Trade Mark：Yr
- The Angle of Main Pipe and Branches：90ºC
- Package：Plywood Case
- Transport Package：Plywood Case Pallet
- Specification：1" to 6"
- Trademark：YR
- Origin：Guangdong, China
- HS Code：73079100
Description
//Stainless Steel: AISI 304//Size: 1'' ~ 6''
//Flange Standard: ASME, DIN, Others
//Thread: NPT, BSPP, BSPT, Ohers
//Length: Customized
TECHNICAL FEATURES
| Manufacturing process | Pipe cold buckling |
| Material | Stainless steel AISI 304, AISI 316 is available on request. |
| Welded joints | Made with TIG method without any additaional material |
| Surface treatment | Electroplishing, or on request |
| Threaded ends | From 1-1/2" to 4" |
| Flanged methods | From 1-1/2 to 8" |
| Thread Type | NPT, NPTF, BSPT, BSPP and so on. |
| Wall Thickness | 1.5mm - 2.0mm |
| Specification | ASME/ ANSI, API, DIN, GOST, BS, AS, JIS, JPI and so on. |
| Nominal working pressure | Standard 16 to 25 bars |
| Maximum length | 5000mm |
| Application | Pump Booster Set, Water Treatment, Floor Heating System and so on. |
| Packing | Carton, Wooden Case, Pallet |
| Less MOQ limit | Flexibility according to your plan. |
| The shortest delivery time | One month for a container. |
| Sample support | Samples for your inspection to see the quality. |
| Production experience | 20 yeas of Manifolds production experiences. |
| Sales experience | More than 15 years professional experience in the Water Pump industry. |
| Internal brand we cooperated | We supply to international brands. |
>>We follow strictly the business ethic. Honest and trust are our core values to follow.

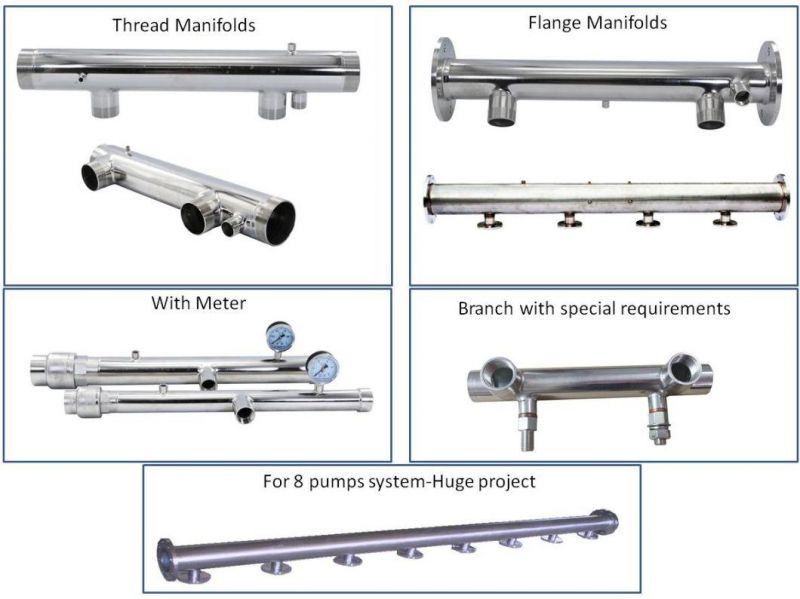

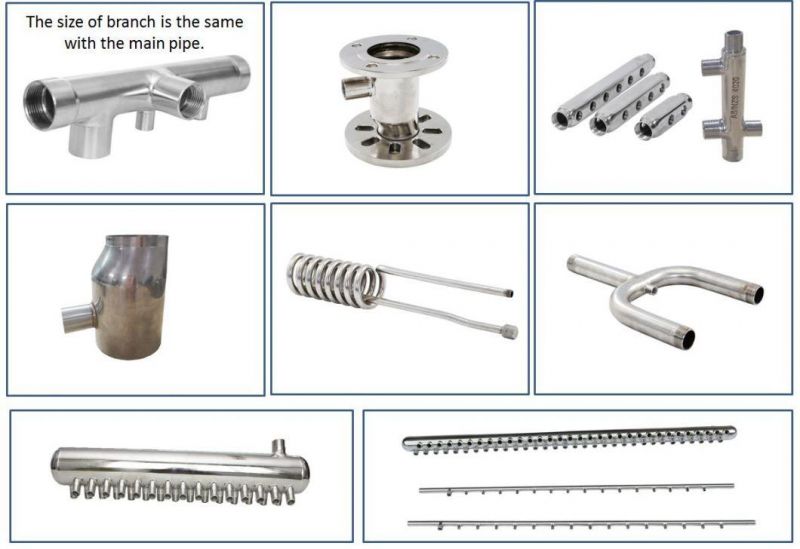

Manifolds Collection Photos
Manifold-CustomizationDifferent pump system needs different dimension manifolds.
Customized manifolds are requested.
Drawing with all specific data, manifolds can be made accordingly.

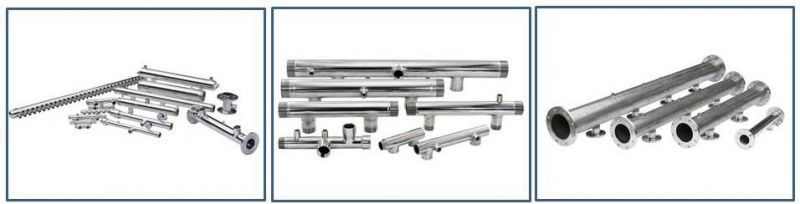

Special Manifolds

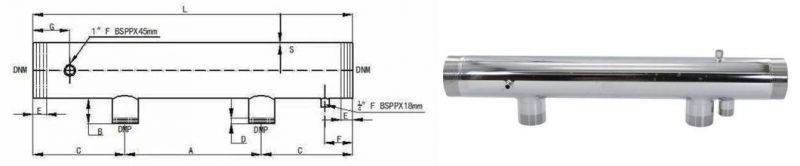

Standard Manifolds
| L | DNM | DMP | A | B | C | D | |
| 1'' x 1'' | 610 | 1'' | 1'' | 360 | 40 | 125 | 16 |
| 1-1/4'' x 1'' | 610 | 1-1/4'' | 1'' | 360 | 40 | 125 | 16 |
| 1-1/4'' x 1-1/4'' | 610 | 1-1/4'' | 1-1/4'' | 360 | 45 | 125 | 18 |
| 1-1/2'' x 1-1/4'' | 610 | 1-1/2'' | 1-1/4'' | 360 | 45 | 125 | 18 |
| 1-1/2'' x 1-1/2'' | 610 | 1-1/2'' | 1-1/2'' | 360 | 45 | 125 | 20 |
| 2'' x 1-1/4'' | 610 | 2'' | 1-1/4'' | 360 | 45 | 125 | 18 |
| 2'' x 1-1/2'' | 610 | 2'' | 1-1/2'' | 360 | 45 | 125 | 20 |
| 2'' x 2'' | 610 | 2'' | 2'' | 360 | 55 | 125 | 25 |
| 2-1/2'' x 1-1/2'' | 650 | 2-1/2'' | 1-1/2'' | 380 | 45 | 135 | 20 |
| 2-1/2'' x 2'' | 650 | 2-1/2'' | 2'' | 380 | 55 | 135 | 25 |
| 2-1/2'' x 2-1/2'' | 650 | 2-1/2'' | 2-1/2'' | 380 | 55 | 135 | 25 |
| 3'' x2'' | 700 | 3'' | 2'' | 600 | 60 | 150 | 25 |
| 3'' x 2-1/2'' | 700 | 3'' | 2-1/2'' | 600 | 60 | 150 | 25 |
| 3'' x 3'' | 700 | 3'' | 3'' | 600 | 60 | 150 | 30 |

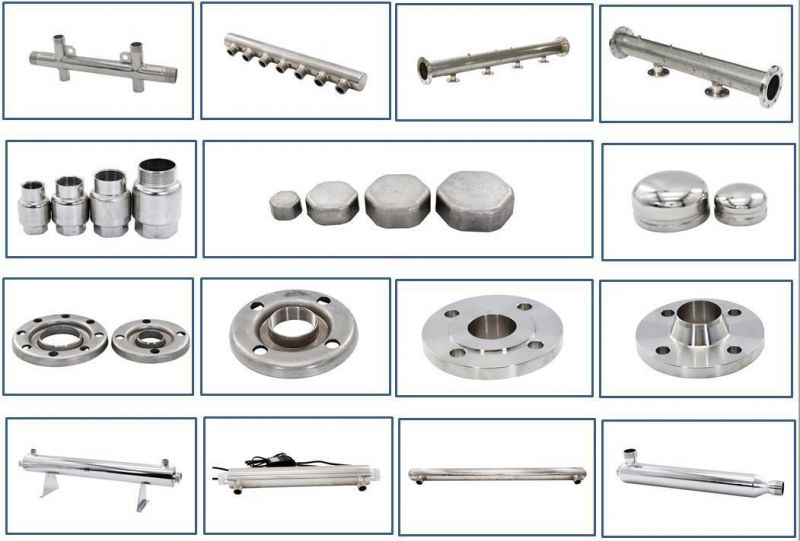

More Products

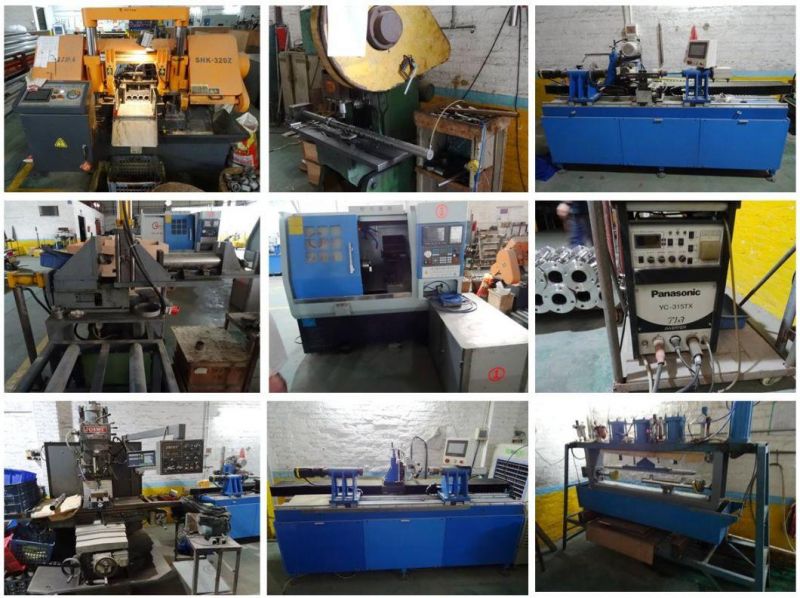

Equipment Photos

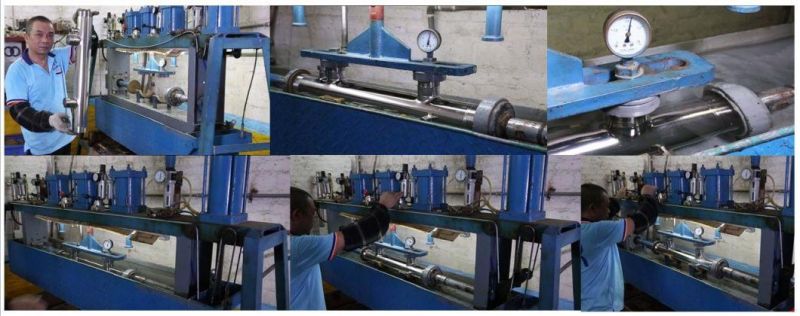

Testing photos
