Special Anchor for Pcp

Hebei Jerry Pump Co., Ltd.
  • Standard：ANSI
  • Material：Stainless Steel
  • Connection：Female
  • Surface Treatment：Black Oxide
  • Transport Package：Wood Case
  • Trademark：Kelian

Base Info

  • Model NO.：TNM Cam anchor
  • Origin：China
  • HS Code：7316000000
  • Production Capacity：10000

Description

Basic Info.

Model NO. TNM Cam anchor Origin China HS Code 7316000000 Production Capacity 10000

Product Description

Special Anchor for Pcp
Special Anchor for Pcp
Special Anchor for Pcp
Special Anchor for Pcp
Special Anchor for Pcp
Special Anchor for Pcp

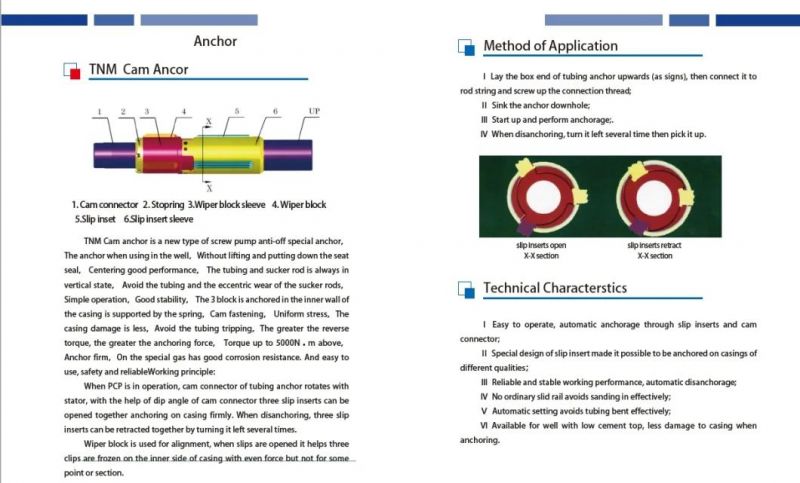

Working principle:When PCP is in operation, cam connector oftubing anchor rotates with stator, with the help of dip angle of cam connector three slipinserts can be openedtogether anchoring on casing firmly. When disanchoring, three slip inserts can be retracted together by turning it left several times.Wiper block is used for alignment, when slips are opened it helps three clips are frozen on the inner side of casing with even force but not for sompoint or section.
