Ss Reduced Spool with Flange for Booster Pump System
Yurong Stainless Steel Products Co., Ltd.- Standard:ANSI, DIN, GB, JIS, etc.
- Material:Stainless Steel 304, 316
- Structure:Flange
- Connection:Flanged
- Pressure:16 Bar, 25 Bar, 32 Bar
- Surface Treatment:Electropolishing
Base Info
- Model NO.:Spool
- Welding:TIG
- Application:Booster Set, Pumps System, Water System, etc.
- Customised:Per Your Drawings
- Transport Package:Standard Exporting Package
- Specification:1" to 10"
- Trademark:YR
- Origin:China
- HS Code:7307220000
Description
Basic Info.
Model NO. Spool Welding TIG Application Booster Set, Pumps System, Water System, etc. Customised Per Your Drawings Transport Package Standard Exporting Package Specification 1" to 10" Trademark YR Origin China HS Code 7307220000Product Description
SS Reduced Spool with Flange for Booster Pump SystemManufacturing process | Pipe cold buckling |
Material | Stainless steel AISI 304. AISI 304L, AISI 316, AISI316L is available on request. |
Welded joints | Made with TIG method without any additaional material |
Surface treatment | Electroplishing, pickling and degreasing. Brushed, Acid on request |
Threaded ends | From 1-1/2" to 4", UNI ISO 228 |
Flanged methods | From 1"-1'/2 to 8", flanges with holes according to UNI 2278 PN 16 |
Thread Type | NPT, NPTF, BSPT, BSPP and so on. |
Wall Thickness | 1.0mm - 5.0mm |
Specification | ASME/ ANSI, API, DIN, GOST, BS, AS, JIS, JPI and so on. |
Nominal working pressure | Standard 16 to 25 bars |
Maximum length | 5000mm |
Application | Pump Booster Set, Water Treatment, Floor Heating System and so on. |
Packing | Carton, Wooden Case, Pallet |
Less MOQ limit | Flexibility according to your plan. |
The shortest delivery time | One month for a container. |
Sample support | Samples for your inspection to see the quality. |
Production experience | 20 yeas of Manifolds production experiences. |
Sales experience | More than 15 years professional experience in the Water Pump industry. |
Internal brand we cooperated | We supply to international brands. |
>>We follow strictly the business ethic. Honest and trust are our core values to follow.

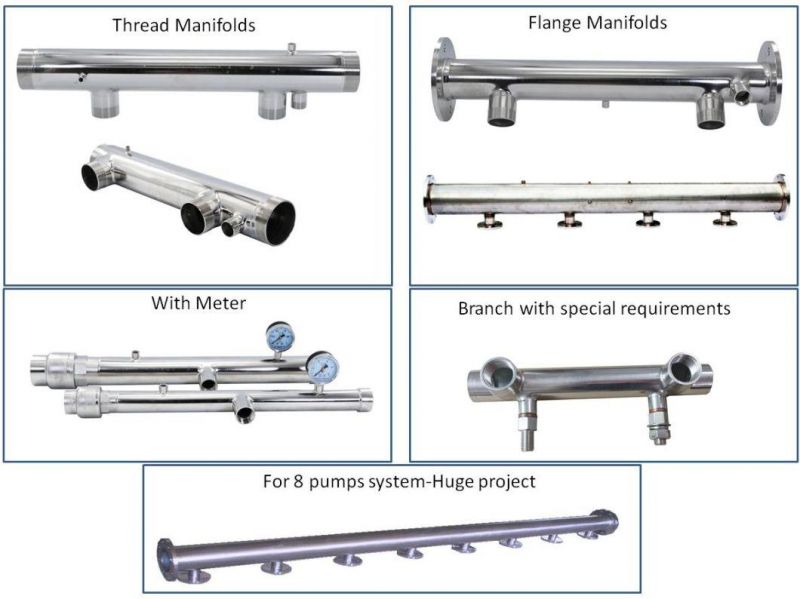

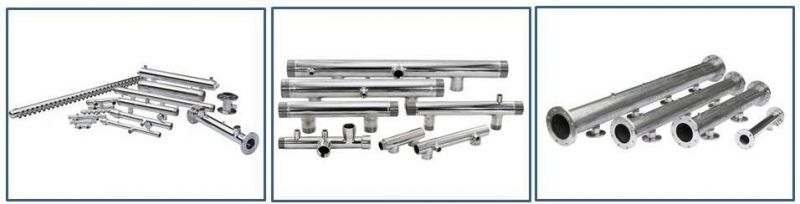

Manifolds Collection Photos
Manifold-CustomizationDifferent pump system needs different dimension manifolds.
Customized manifolds are requested.
Drawing with all specific data, manifolds can be made accordingly.

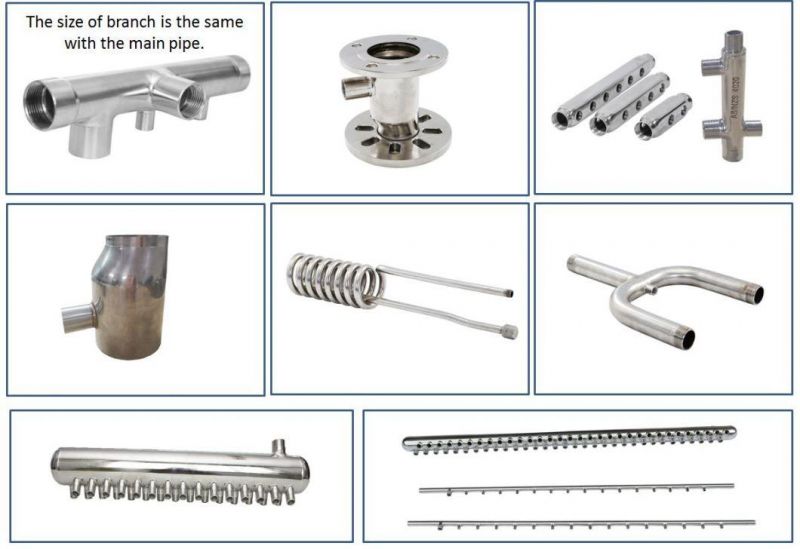

Special Manifolds

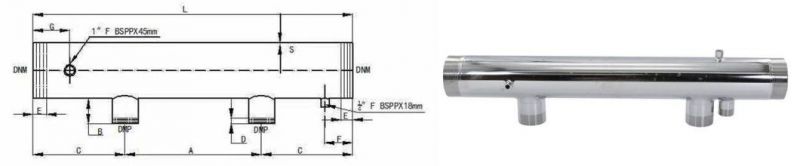

Standard Manifolds
L | DNM | DMP | A | B | C | D | |
1'' x 1'' | 610 | 1'' | 1'' | 360 | 40 | 125 | 16 |
1-1/4'' x 1'' | 610 | 1-1/4'' | 1'' | 360 | 40 | 125 | 16 |
1-1/4'' x 1-1/4'' | 610 | 1-1/4'' | 1-1/4'' | 360 | 45 | 125 | 18 |
1-1/2'' x 1-1/4'' | 610 | 1-1/2'' | 1-1/4'' | 360 | 45 | 125 | 18 |
1-1/2'' x 1-1/2'' | 610 | 1-1/2'' | 1-1/2'' | 360 | 45 | 125 | 20 |
2'' x 1-1/4'' | 610 | 2'' | 1-1/4'' | 360 | 45 | 125 | 18 |
2'' x 1-1/2'' | 610 | 2'' | 1-1/2'' | 360 | 45 | 125 | 20 |
2'' x 2'' | 610 | 2'' | 2'' | 360 | 55 | 125 | 25 |
2-1/2'' x 1-1/2'' | 650 | 2-1/2'' | 1-1/2'' | 380 | 45 | 135 | 20 |
2-1/2'' x 2'' | 650 | 2-1/2'' | 2'' | 380 | 55 | 135 | 25 |
2-1/2'' x 2-1/2'' | 650 | 2-1/2'' | 2-1/2'' | 380 | 55 | 135 | 25 |
3'' x2'' | 700 | 3'' | 2'' | 600 | 60 | 150 | 25 |
3'' x 2-1/2'' | 700 | 3'' | 2-1/2'' | 600 | 60 | 150 | 25 |
3'' x 3'' | 700 | 3'' | 3'' | 600 | 60 | 150 | 30 |

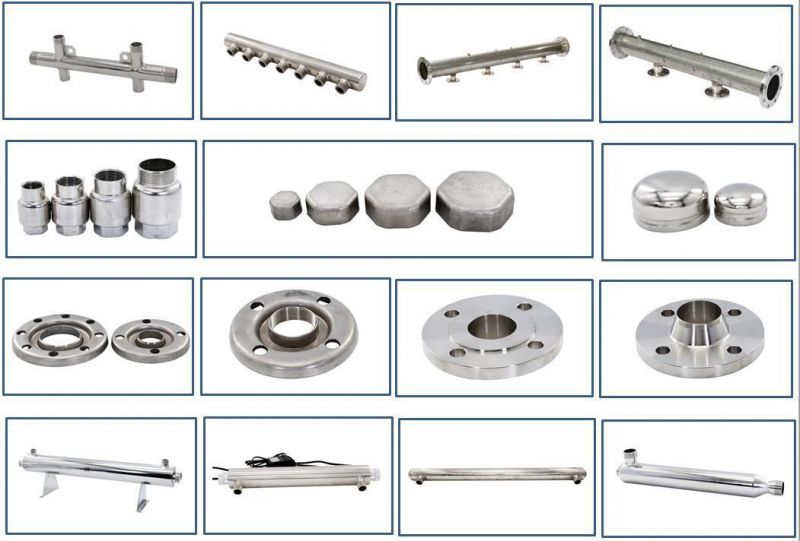

More Products

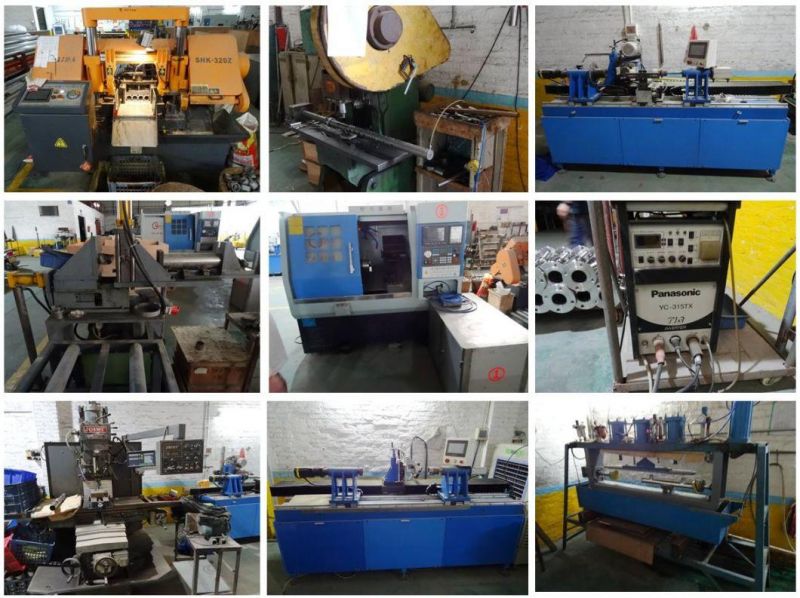

Equipment Photos

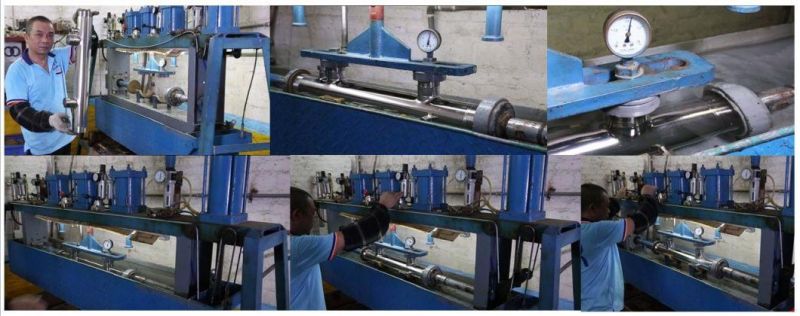

Testing photosPackage photos
