ANSI B16.5 Forged Slip-on Weld Neck Flange, Stainless Steel Pipe Fitting Steel Flange
EZ Steel Industrial Co., Ltd.- Standard：ANSI, DIN, GB, JIS, ISO,ASME
- Type：Welding Flange
- Material：Stainless Steel
- Structure：Flanges
- Connection：Flanged
- Sealing Surface：RF
Base Info
- Model NO.：EZS
- Manufacturing Way：Press
- Size：1,2"-72"
- Materials：CS,Ss,Alloy
- Sch：10,40,80,160,Std,Xh,Xxh,etc
- Types：Weld-Neck
- Face：FF,RF etc
- Delivery Time：7-15days
- Shipment：Container or Bulk Vessel

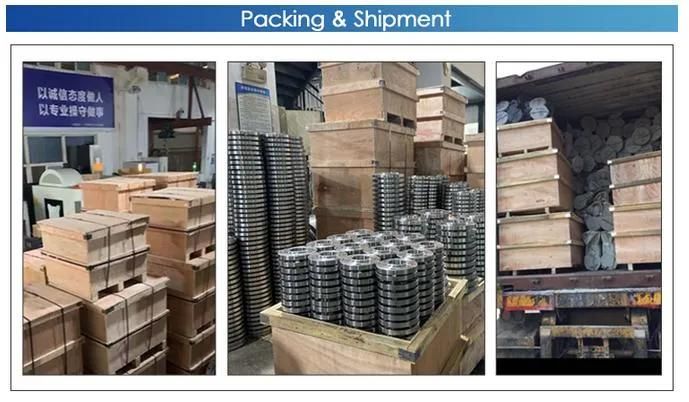

- Package：Wooden Case or Other Requirment
- Transport Package：Wooden Case
- Specification：#150
- Trademark：EZS
- Origin：Tianjin China
- HS Code：7307210000
- Production Capacity：20000ton,Year
Description
We provide ANSI, API, and AWWA pipe flanges in carbon steel, stainless steel, alloys, and chrome steel. Styles we offer include Weld Neck, Slip On, Blind, Threaded, Socket Weld, Lap Joint, Orifice Flanges, Ring, and custom flanges in sizes from 1/2″ to 203″. Pressure classes we offer include 75, 125, 150, 175, 250, 300, 350, 400, 600, 900, 1500, 2500, 5K, 10K, 15K, 20K. High Yield - Low Temp.
Material:
- CARBON STEEL - ASTM/ASME SA-105, A-350 LF-2, LF-3, A694, SA-516-70, A36
- CHROME ALLOYS - A-182-F-1, F-5, F-6, F-9, F-91, F-11, F-12, F-22
- STAINLESS STEEL - A-182 - F-304, Dual Grade 304/304L, Dual Grade 316/316L, 316, 304H, Dual Grade 304/304H, Dual Grade 316/316H, 316H, 309,
- 310, 317L, 321, 347, 347H, 904L,
- Alloy 20, many other H grades
- ALUMINUM - 3003, 6061, 5083 and other grades upon request.
- HASTALLOY - B-2, C-276, G, X, C-22
- INCONEL - 600, 601, 625, 718
- INCOLLOY - 800, 825, 800H, 800HT
- MONEL - 400
- COPPER - 90/10 (C70600), 70/30 (C71500)
- Duplex - F51/2205, F53/2507
- TITANIUM - Gr2, Gr12

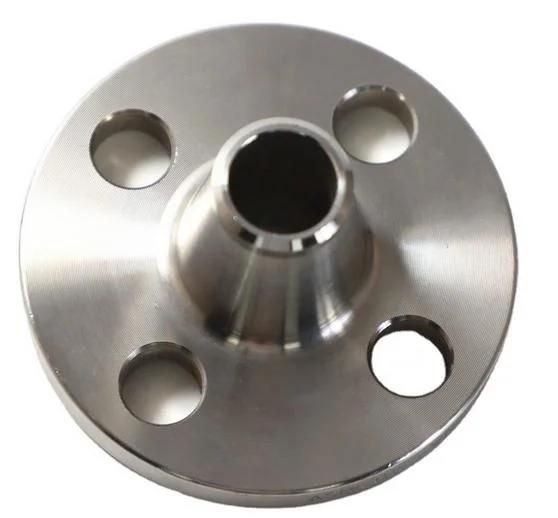

WELD NECK FLANGE
Our most frequently requested flange, the Weld Neck Flange features a neck extension and weld bevel. Provides a natural form connection ideal for larger, high-pressure applications.

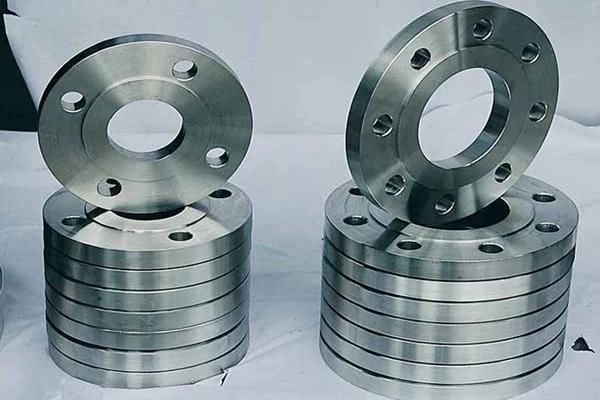

SLIP ON FLANGE
A simple alternative to the Weld Neck flange, a Slip On Flange is designed to accept the pipe into the center/bore, allowing welding around the outer diameter of the pipe.

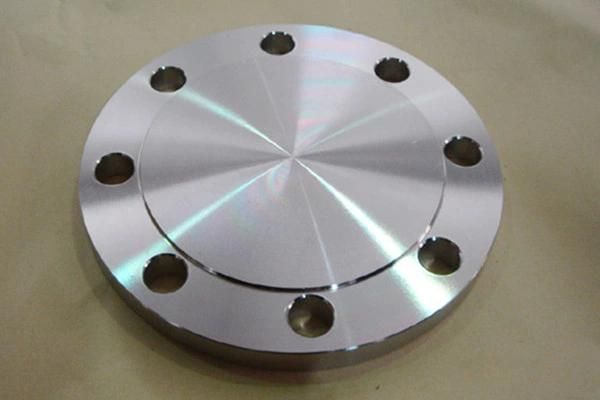

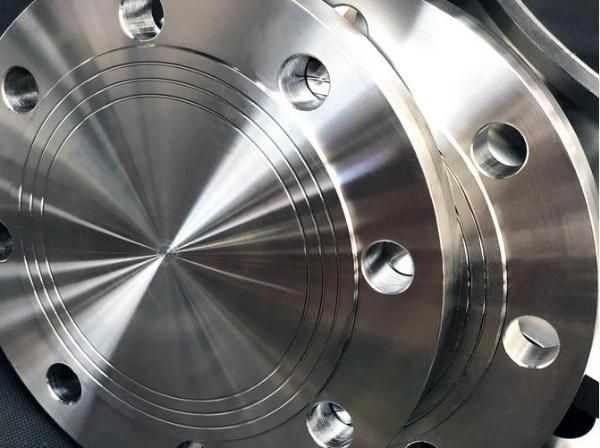

BLIND FLANGE
Designed to cap off a line, a Blind Flange has no bore or inner diameter. They are often altered to include NPT threads or custom bore holes to function as hubless Slip On flanges.

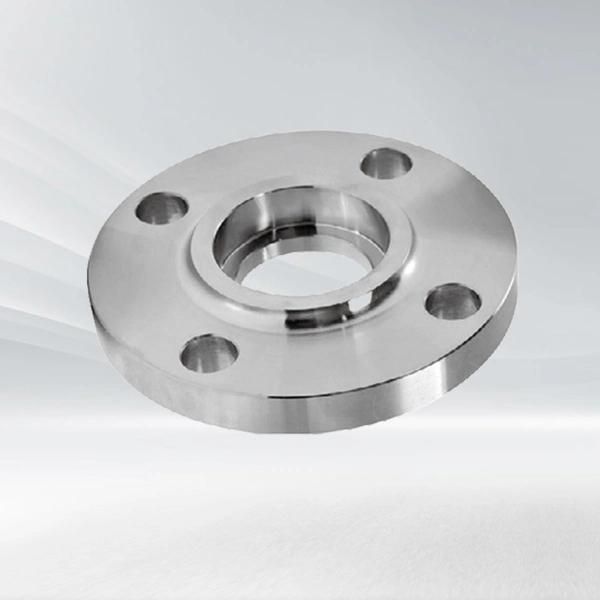

SOCKET WELD / COUNTER BORE FLANGE
Sometimes referred to as Counter Bore flanges, the Socket Weld types have a socket to insert pipe when space limitations make Weld Neck flanges difficult to use.
THREADED / COMPANION FLANGEThreaded or Companion Flanges contain a female NPT threaded center for connection to male threaded piping. These flanges are commonly implemented in reducing connections.
