• Model NO.：RIA-MJ-010
• Application：Joint Belt
• Finish：Polishing
• Product Name：Rivet Hinged Belt Fastener
• Size：Customized
• Transport Package：Wooden Box
• Specification：400mm-2000mm
• Trademark：BAI-OTT
• Origin：China
• HS Code：40170020

Basic Info.

Model NO. RIA-MJ-010 Application Joint Belt Finish Polishing Product Name Rivet Hinged Belt Fastener Size Customized Transport Package Wooden Box Specification 400mm-2000mm Trademark BAI-OTT Origin China HS Code 40170020

Product Description

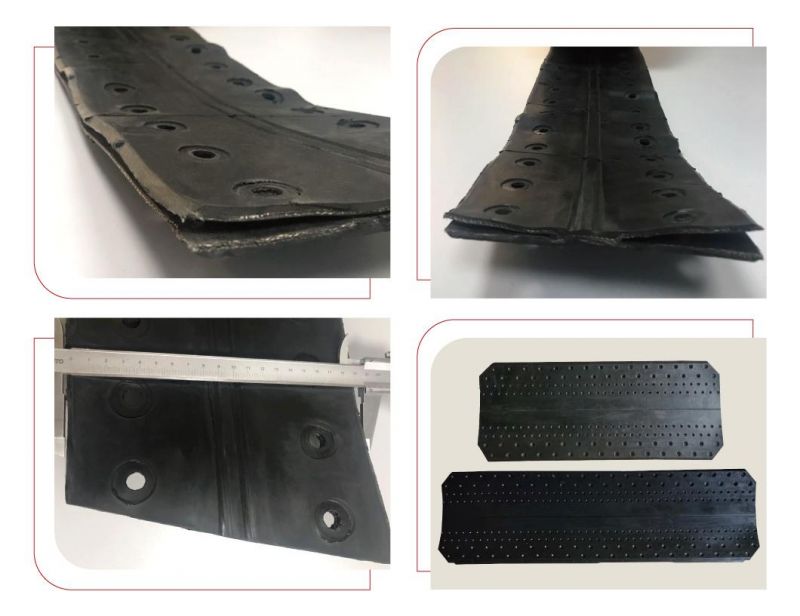

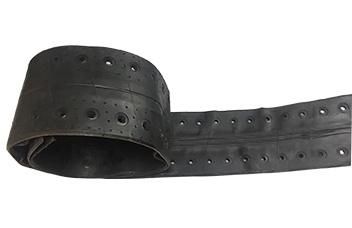

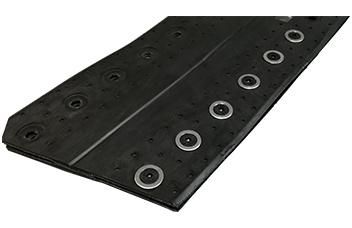

Conveyor belt fastener super screw

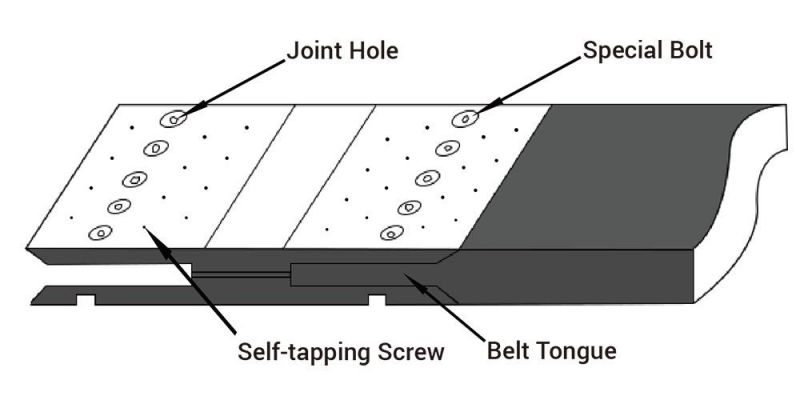

Conveyor belt super screw is a new conveyor belt joint method.  Conveyor belt super screw is a great innovation in belt joint field because of convenient installment, powerful strength, low consumption and long service life quality.

ADVANTAGES:
1.Quickly: Installment very quickly. Can be finished within 2 hours and ready to start work.
2.Stable: Operation technology is stable and reliable. Your workers can easily install it although without professional training. And its quality is more stable than hot and cold vulcanizing.
3.Strong: The joint part with strong strength and good service life.4.Saving: Easily repair and low cost with short joint length can saving time and belt materials.

We have 4 types to meet different working environment:

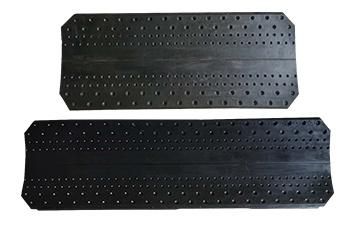

1.Normail tilt joint: strength range have 600N/mm, 800N/mm, 1000N/mm, 1200N/mm. Made by rubber and fabric layer can produce any length as you need.  Including all necessary accessories.

Joint width: 200mm         Suitable belt thickness: ≤12mm
Joint thickness: 11-12mm     Anti-Abrasive: >15mpa

2. Standard straight joint: strength range have 600N/mm, 800N/mm, 1000N/mm, 1200N/mm. Verticle to conveyor belt.  Made by rubber and fabric layer can produce any length as you need.  Including all necessary accessories.

Joint width: 300mm         Suitable belt thickness: 10-17mm
Joint thickness: 14-15mm     Anti-Abrasive: >15mpa

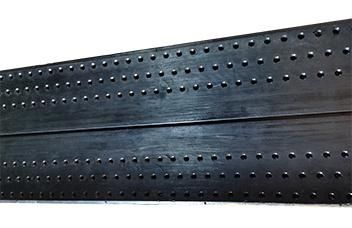

3. Standard  pre-bury joint: strength range have 800N/mm, 1000N/mm, 1200N/mm, 1400N/mm. Bolts have been pre-bury in the rubber to prevent large belt strength.  You need only screw into the screws to saving more time.

Joint width: 254mm         Suitable belt thickness: ≤17mm
Joint thickness: 15mm       Anti-Abrasive: >15mpa

4. High strength  pre-bury joint: strength range have 1200N/mm, 1600N/mm. Bolts have been pre-bury in the rubber to prevent large belt strength.  You need only screw into the screws to saving more time.  Wider size suitable for very difficult working environment.


Joint width: 350mm           Suitable belt thickness: 12-20mm
Joint thickness: 17mm/19mm   Anti-Abrasive: >15mpa


Custom available
Anti- Abrasive upgrade from 15 Mpa to 20 Mpa(25 Mpa)
Increase acid and Alkali Resistance performance
With oil resistance performance
With anti-flammable performance
With higher temperature resistance
