• Model NO.：SUNWELL-SW600-18
• Quatity：High Level
• Transport Package：Wooden Case
• Specification：Standard, Nonstandard, according your request
• Trademark：Sunwell
• Origin：Ningbo, China
• Production Capacity：2800000PCS,Month

Basic Info.

Model NO. SUNWELL-SW600-18 Quatity High Level Transport Package Wooden Case Specification Standard, Nonstandard, according your request Trademark Sunwell Origin Ningbo, China Production Capacity 2800000PCS/Month

Product Description

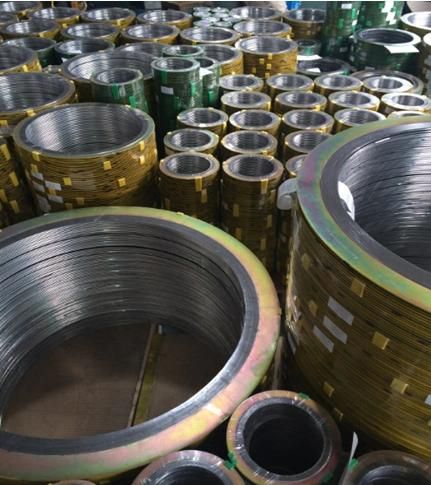

SUNWELL SW600 spiral wound gasket is formed of V-shaped Metallic strip and soft non-metallic filler. Support rings, inside and Outside the spiral, improve the gasket's handing, fitting and Versatility.
Depend on its excellent compression resilience, it is suitable for sealing spots where the alteration of temperature and pressure are frequent.

SUNWELL CO.The large-scale laser cutting machine, Germany imports;Korea import test equipment;Portable spectrum instrument, dealing with counterparts in the leading level.

SW600-R Basic Type

Basic construction type, inner and outer diameters are reinforced with several piles of metal without filler to give greater stability and better compression characteristics. - Suitable for tongue and groove, male and female or grooved to flat face flange assemblies.
SW600-CG Outer Ring Type
Solid outer ring accurately locates the gasket on the flange face to give the additional radial strength to prevent the gasket blowout and acts as a compression limiter. In case of installing the outer ring, it is very easy to install the gasket to flange face because the end of outer ring will touch at bolts - Suitable for use with flat face and raised face flanges. For class 900 and above an internal ring is recommended.
SW600-CGI Inner & Outer Rings Type
A inner ring and outer ring type gasket will give an additional compression limiting stopper for gasket inner and outer side. It will prevent the corrosions on flange face at annular space. - Suitable for use with flat face and raised face flanges and specified for high pressure / temperature service - Class 900 and above or where corrosive or toxic media are present


Spiral wound gaskets,SWG,GasketsSpecifications

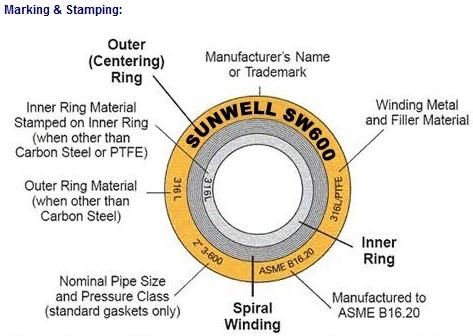

1.Products are manufactured in accordance with all relevant gasket standards to suit flange designations: ASME B 16.20, ASME B 16.5, BS1560, ASME B 16.47 A (B), BS EN 1092, DIN, JIS, and NF, etc.
2.Color cord as ASME B 16.20 on request.

More information of Spiral wound gaskets,SWG,Gaskets,please contact with sunwell sealing co.
