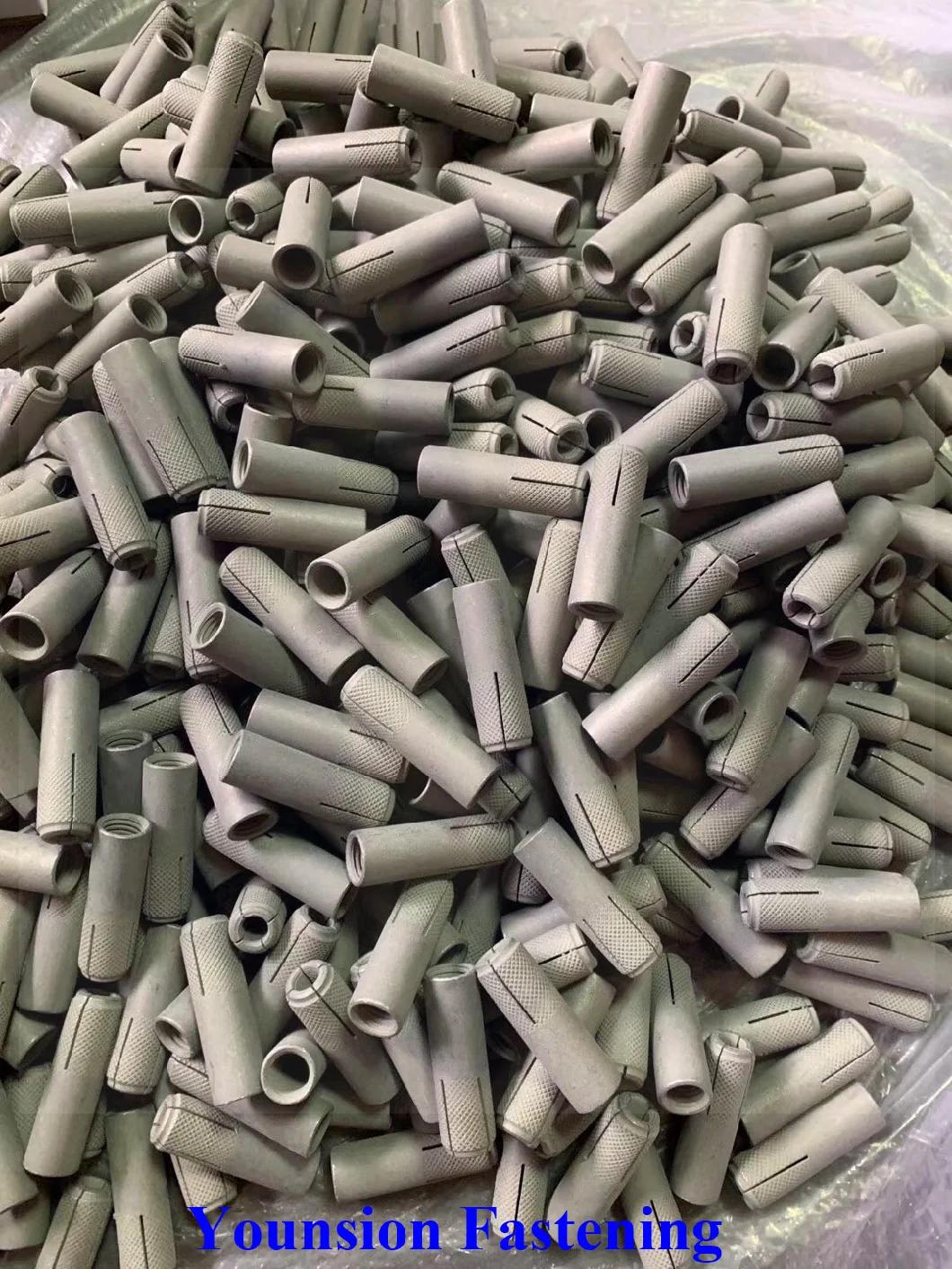

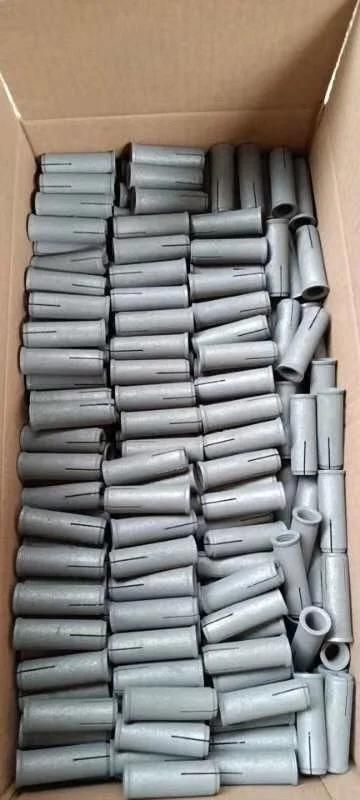

HDG Lipped Drop in Anchor
Younsion Fastening Industrial Co., Ltd.- Material:Carbon Steel
- Type:Round Head
- Connection:Common Bolt
- Head Style:Round
- Standard:DIN, ANSI, GB, JIS, BSW
- Grade:4.8
Base Info
- Model NO.:DIA12
- Application:Machinery, Chemical Industry, Environmental, Building
- Finish:Blue-White Zinc Plated
- Transport Package:Inner Boxes, Cartons, Then Pallets
- Specification:M6-M20, 1,4-3,4
- Trademark:YS
- Origin:China
- HS Code:7318190000
- Production Capacity:1296tons,Years
Description
Basic Info.
Model NO. DIA12 Application Machinery, Chemical Industry, Environmental, Building Finish Blue-White Zinc Plated Transport Package Inner Boxes, Cartons, Then Pallets Specification M6-M20, 1/4-3/4 Trademark YS Origin China HS Code 7318190000 Production Capacity 1296tons/YearsProduct Description
Drop-In AnchorDescription:
Thread Size | Anchor Dia. | Thread Depth | Anchor Length | Approx.count Per Box/Ctn |
1/4-20 | 3/8" | 1/2" | 1" | 100/2000 |
3/8-16 | 1/2" | 5/8" | 1-9/16" | 50/1000 |
1/2-13 | 5/8" | 3/4" | 2" | 50/500 |
5/8-11 | 7/8" | 7/8" | 2-1/2" | 25/200 |
3/4-10 | 1" | 1-1/4" | 3-1/8" | 25/150 |
M6 (W1/4) | 8 | 10 | 25 | 100/2000 |
M8 (W5/16) | 10 | 14 | 30 | 100/2000 |
M10 (W3/8) | 12 | 15 | 40 | 50/1000 |
M12 (W1/2) | 16 | 20 | 50 | 50/500 |
M16 (W5/8) | 20 | 25 | 65 | 25/200 |
M20 (W3/4) | 25 | 35 | 80 | 25/150 |
ISO9001 Quality Management System
Material:Carbon steel /Stainless Steel
Size:M6-M20 (1/4"-3/4" )
Surface:White/White Blue ZP/HDG/DAC/Yellow ZP
