• Condition：New
• Payment：30% Prepaid
• Sample：Available
• Delivery Time：in 30 Days
• Application：Lifting, Connecting, Fastening, etc.
• Wll Ton：0.08 - 40
• Weight (Kg/PC)：0.05 - 36.4
• Certifications：BV, ISO, SGS, etc.
• Surface Tratement：Electric Galvanized
• Technology：Drop Forged
• Customized Service：Available
• Quality：Strictly Tested and Controled
• Transport Package：Cartons+Pallets or Other Customized Methods
• Specification：M6-M100
• Trademark：Powerful Machinery
• Origin：China
• HS Code：7318160000
• Production Capacity：1000 Ton Per Month

Basic Info.

Condition New Payment 30% Prepaid Sample Available Delivery Time in 30 Days Application Lifting, Connecting, Fastening, etc. Wll Ton 0.08 - 40 Weight (Kg/PC) 0.05 - 36.4 Certifications BV, ISO, SGS, etc. Surface Tratement Electric Galvanized Technology Drop Forged Customized Service Available Quality Strictly Tested and Controled Transport Package Cartons+Pallets or Other Customized Methods Specification M6-M100 Trademark Powerful Machinery Origin China HS Code 7318160000 Production Capacity 1000 Ton Per Month

Product Description

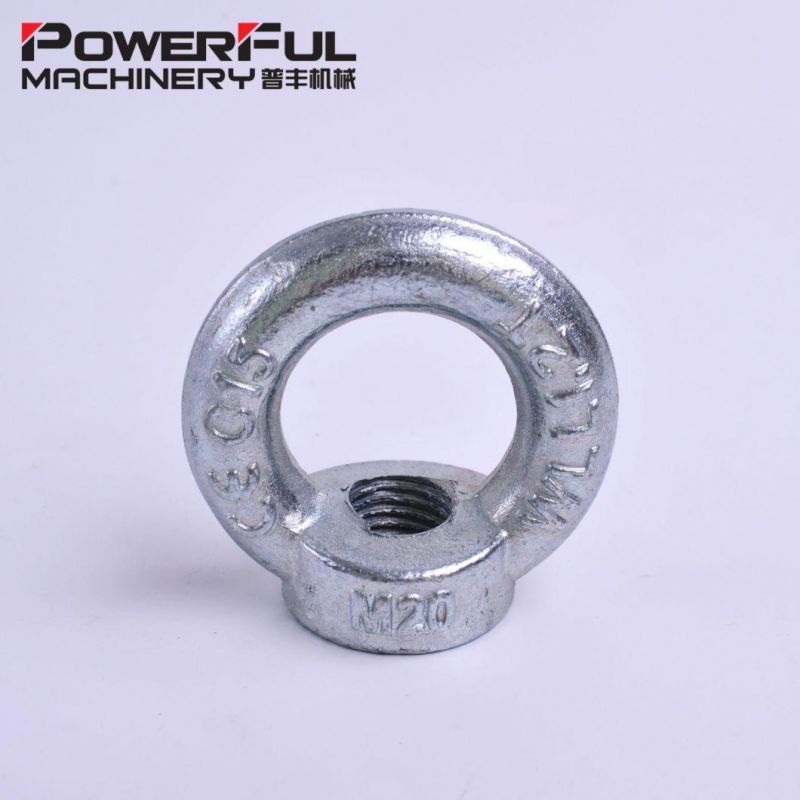

Drop Forged DIN 582 Eye Nut for Lifting



Specifications
1. Material: Carbon Steel C15, and C15E, Stainless Steel 304 and 316
2. Size: M6-M100
3. WLL: 0.08 Ton - 40 Ton
4. Surface: Hot Dip Dalvanized, Zinc Plated
5. Color: Self Color, Silver or Other Required
6. Technology: Drop Forged
7. Certifications: BV, ISO9001:2008 SGS, CE
8. Brand: Powerful Machinery

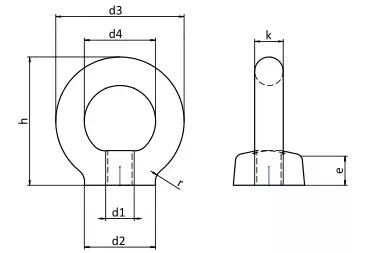

SIZE	d2	d3	d4	e	h	k	r	WEIGHT	WLL
d1	MM	MM	MM	MM	MM	MM	MM	KG/PC	TON
M6	20	36	20	8.5	36	8	4	0.05	0.08
M8	20	36	20	8.5	36	8	4	0.05	0.14
M10	25	45	25	10	45	10	4	0.09	0.23
M12	30	54	30	11	53	12	6	0.16	0.34
M14	35	63	35	13	62	14	6	0.24	0.34
M16	35	63	35	13	62	14	6	0.24	0.7
M18	40	72	40	16	71	16	8	0.36	0.7
M20	40	72	40	16	71	16	8	0.36	1.2
M22	50	90	50	20	90	20	12	0.72	1.2
M24	50	90	50	20	90	20	12	0.72	1.8
M27	65	108	60	25	109	24	15	1.32	1.8
M30	65	108	60	25	109	24	15	1.32	3.2
M33	75	126	70	30	128	28	18	2.08	3.2
M36	75	126	70	30	128	28	18	2.08	4.6
M39	85	144	80	35	147	32	20	3.11	4.6
M42	85	144	80	35	147	32	20	3.11	6.3
M45	100	166	90	40	168	38	22	5.02	6.3
M48	100	166	90	40	168	38	22	5.02	8.6
M52	110	184	100	45	187	42	25	6.69	8.6
M56	110	184	100	45	187	42	25	6.69	11.5
M64	120	206	110	50	208	48	25	9.3	16
M72	150	260	140	60	260	60	35	18.5	20
M80	170	296	160	70	298	68	35	27.3	28
M100	190	330	180	80	330	75	40	36.4	40

Related Products

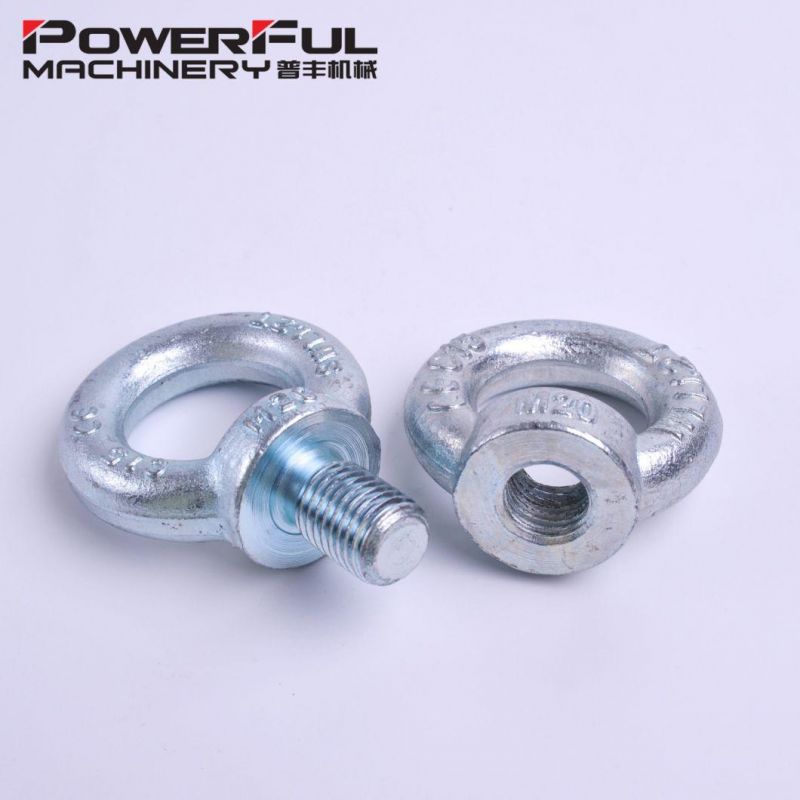

Eye Bolt DIN580, Eye Nut DIN582, BS4278 Collared Eye Bolt, BS529 Collared Eye Bolt, JIS B 1168 Eye Bolt,
JIS B 1169 Eye Nut, G291 Drop Forged Eye Bolt, G80 Lifting Screw Point, Rectangular Base Eye Plates, etc.




Packaging



Hot Sale Products

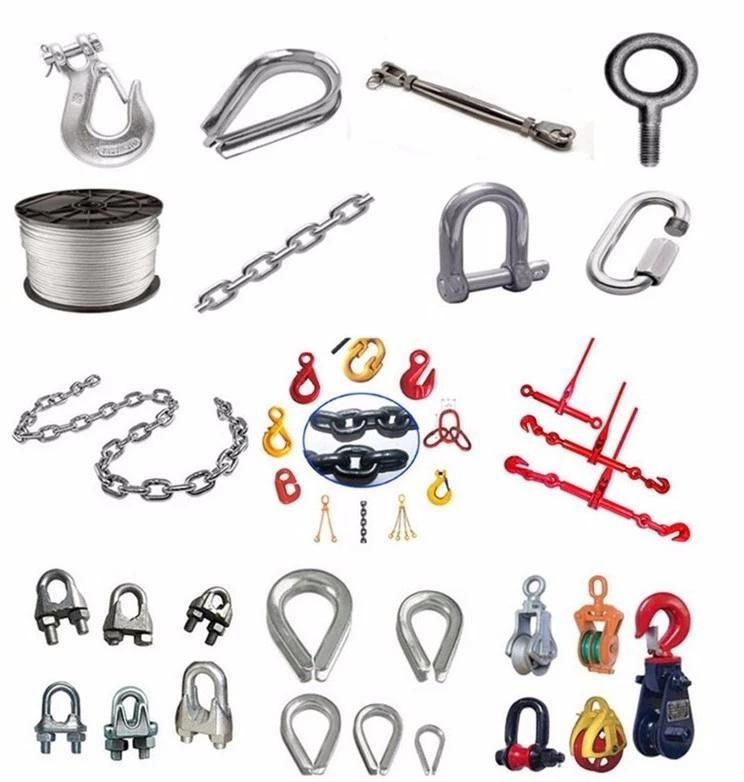

Our most popular products include Chains, Anchor Chains, Hooks, Shackles, Turnbuckles, Load Binders, Eye Bolts & Eye Nuts, Wire Rope, Wire Rope Clips, Wire Rope Thimble, Swivels, Snap Hook, Rings and links, Webblings, Pulley&Block, Sockets, Stainless Steel Products, etc.


NOTE
*The sizes are various.
*Customized service is available.
*The materials can be high quality Carbon Steel, Alloy Steel, Stainless Steel, Plastic, Polyester Fibre, etc.

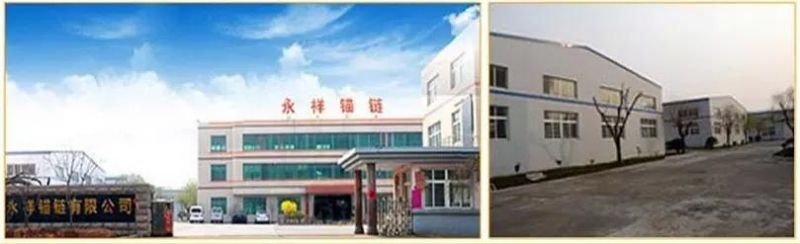

Our Factory


We started as an anchor chain factory, Yongxiang Anchor Chain Co. Ltd, about 20 years ago in Qingdao, China, and gradually developed into a big manufacturer of marine hardware supplies.  At the same time, in order to meet the growing demands from our clients in various business areas, we established our tradingbrand - Powerful Machinery, and expanded our scope to rigging hardware and fasteners, and also set up solid partnership with other factories.

Now we're proud to say that POWERFUL MACHINERY has ranked as the top supplier on marine & rigging hardware in the northern China!

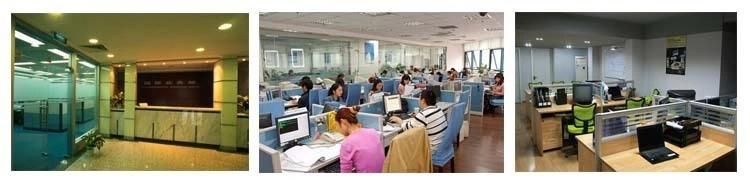

Our Office
