• Model NO.：U10, U12, U16, U21, U25, U30, U50
• Suitable for Cable：15kv-550kv
• Sample：Free
• Leadtime：10-20 Days
• Warranty：1 Year
• Usage：Substation Fittings, Line Fittings
• Transport Package：Ply-Wood Case
• Specification：Customer Request
• Trademark：OEM
• Origin：China
• HS Code：73269090
• Production Capacity：100000PCS,Month

Basic Info.

Model NO. U10/ U12/ U16/ U21/ U25/ U30/ U50 Suitable for Cable 15kv-550kv Sample Free Leadtime 10-20 Days Warranty 1 Year Usage Substation Fittings, Line Fittings Transport Package Ply-Wood Case Specification Customer Request Trademark OEM Origin China HS Code 73269090 Production Capacity 100000PCS/Month

Product Description

Product Descriptions:


Anchor Shackles are used to attach hardware to the tower pad. Back to back anchor shackles are commonly used at the tower attachment point to orient the plane of the tower plate and the balance of the insulator hardware.

a) Materials:   Body--Galvanized steel
                       Hardware--Galvanized steel
                       Cotter Pin--Stainless steel

b) Production: Forging, rolling, turning milling, milling, drilling, hot galvanizing

c) Mechnical Load: 70KN-300KN or as required

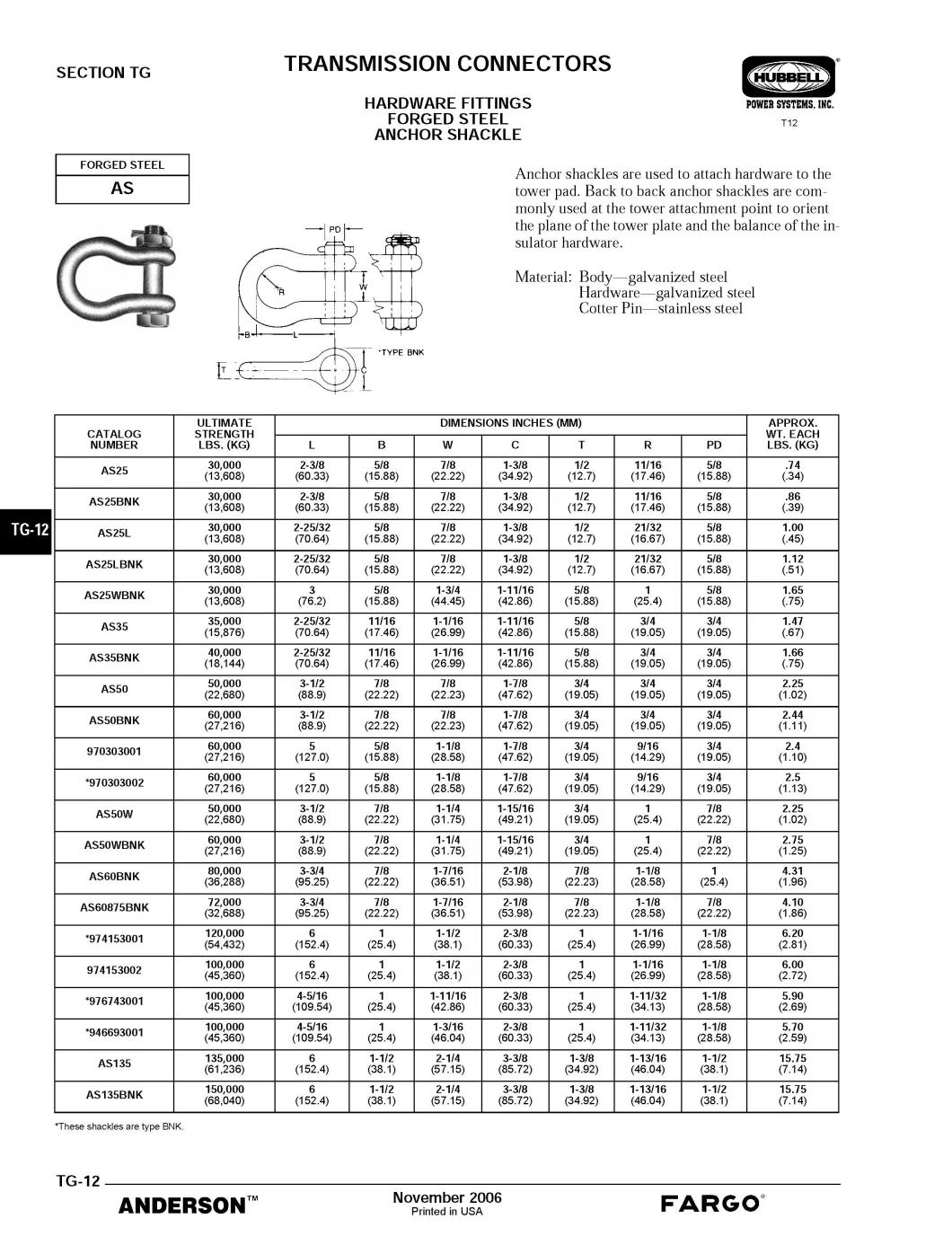

d) Technical Data as below:



Our Products Range:

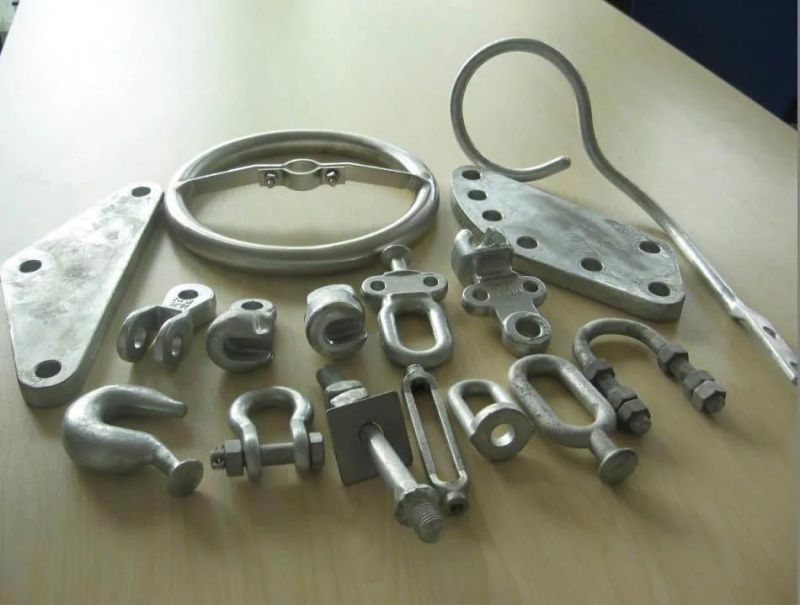

Main Line Fitting Products:
Socket-clevis, Socket-tongue, Ball-eye, Ball-clevis, Hook-ball, Clevis-tongue, Socket-eye
U bolt, Oval Eye, Horizontal Clamp, Corona Ring, Flange&base, Cap&Pin, Railway insulator fitting


Material Range	(1) forgd-steel metal fitting (2) ducitle cast iron metal fitting (3) Aluminum fitting (4) Copper fitting (5) stainless steel fitting (6) Stamping Steel fitting
Fitting Production Process	(1)Drawing (2)Mould making (3)Smelting (4)casting (5)Annealing (6)Hot-DIP galvanized (7)Machining (8)Inspecting
Produce Equipment	Friction Screw Press Series, CNC Lathe, Machinning Center, CNC Milling Machine, Bentch Drilling
Surface Treatment	Heat Treatment, Polishing, Shot Blasting, Painting, Electro-Plating, Chemical Plating

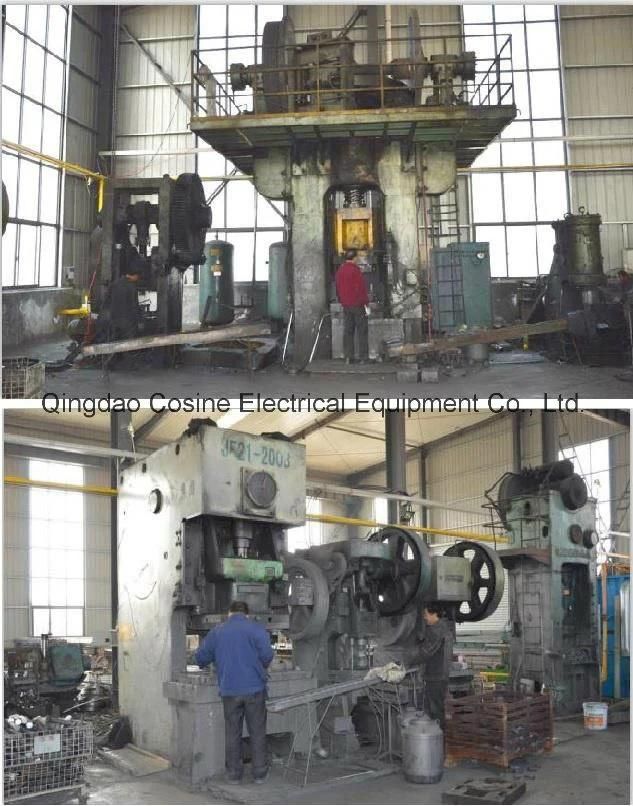

Workshop Overview:

In order to control the quality and improve producing efficiency, we have bought the modern producing line instead of handwork.
Firstly, it can improve the producing capability. What's more, can reduce the employee's workload.



Company Profile:

Beginning from 1998, Qingdao Cosine Electrical Equipment Co., Ltd.has been producing and exporting line fitting over 20 years. In the beginning, the product is ductile cast iron end fitting for ceramic insulator. With the composite insulator developing, we begin to produce the composite insulator fitting from 2003.

Export Market:
--USA, France, Brazil, Argentina, Mexico
--Spain, Poland, South Africa, Turkey, Italy
--Morocco, Vietnam, Hungary, Philippine

we can produce many kinds of body for shackles,  we export shackles to all over the world. we can produce all sizes of shackles and can produce special shackles in accordance with the customers' requirements.

* Free Samples could be provided
* No MOQ limit, Timely delivery, High quality and competitive prices
* OEM is welcomed
* Professional solution and good service on your questions



Looking forward to your early inquiry!
You could leave a message at the bottom of this page. We'll offer the best price!
