Fastener & Fitting

Aluminum Stainless Steel PA Hose Connectors Camlocks

Qingdao Rising Rubber Co., Ltd.
  • Standard:JIS, BSW
  • Material:Aluminium
  • Connection:Female
  • Surface Treatment:Galvanized Sheet
  • Head Type:Round
  • Type:a,B,C,D,E,F,DC,Dp

Base Info

  • Model NO.:camlocks
  • Quality Guarantee:12 Months After Delivery
  • Color:Sliver,Yellow
  • Feature:Oil Resistant,High Pressure,Stainless Steel
  • Transport Package:Carton and Wooden Case
  • Specification:1,2"-8"
  • Origin:Qingdao, China
  • HS Code:7609000000
  • Production Capacity:50000 Pieces Per Month

Description

Basic Info.

Model NO. camlocks Quality Guarantee 12 Months After Delivery Color Sliver,Yellow Feature Oil Resistant,High Pressure,Stainless Steel Transport Package Carton and Wooden Case Specification 1/2"-8" Origin Qingdao, China HS Code 7609000000 Production Capacity 50000 Pieces Per Month

Product Description

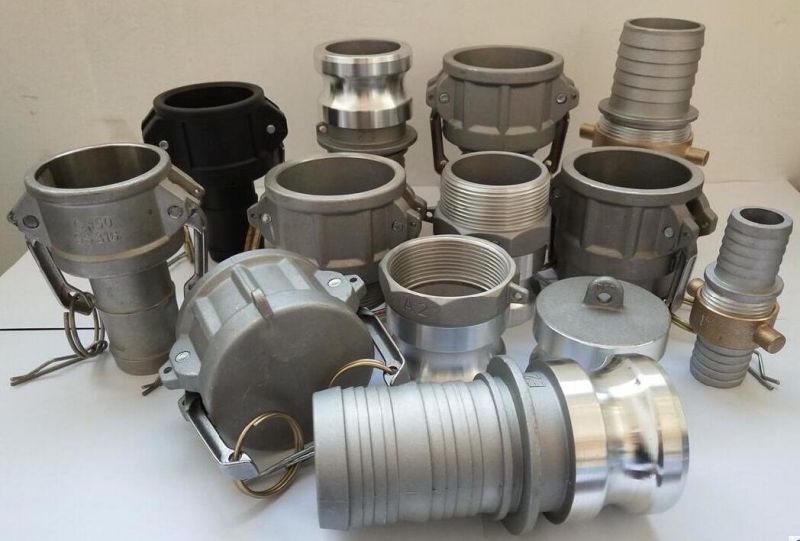

                High Quality Aluminum Stainless Steel camlock

Product detail :



Male Adapter x Male

Stainless Steel camlock hose fittings(Engates Rapidos, Boss coupling) specifications:
Standard of our SS cam and groove coupling:
>Our camlock coupling are made to standard of A - A-59326(previously called MIL-C-27487)or DIN 2828.DIN2817
Casting method of our SS camlock coupling:
>Investment casting
Body material of our SS camlock fitting:
>CF8M casting (SS316)
>CFM casting (SS304)
>Other material are available on request
Specification of our SS camlock coupling:
>Sizes available:from 1/2" to 6"
1/2"    3/4"   1"   1-1/4"   1-1/2"   2"   2-1/2"   3"   4"   5"    6"   8"

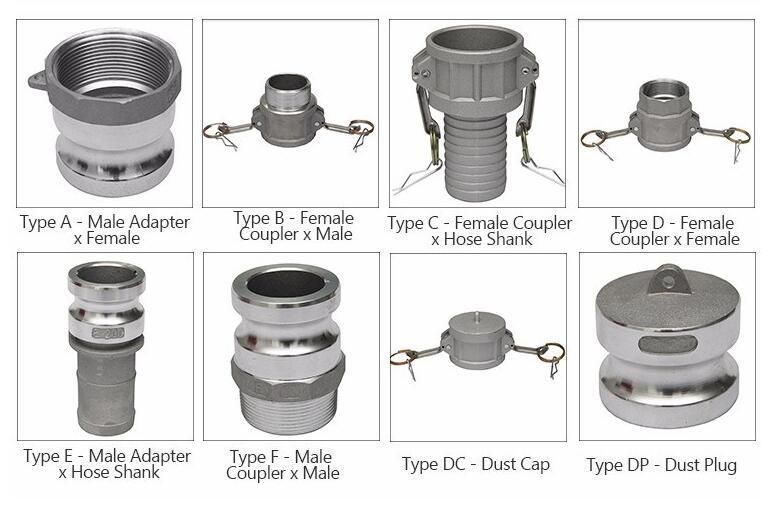

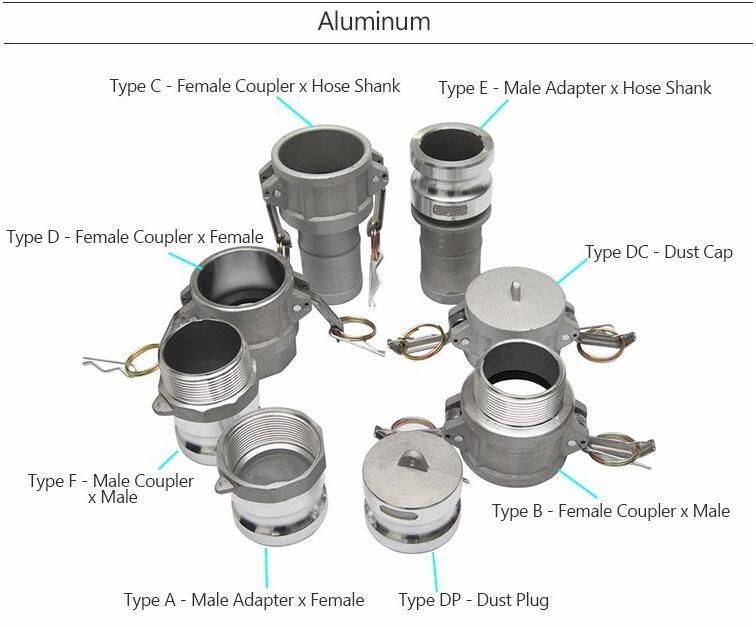

>Types available:A.B.C.D.E.F.DC.DP
Cam levers of our SS camlock fitting:
>stainless steel.
Pins.Rings and Safety clips of our SS kamlock:
>We use steel plated Pins,Rings and Safety clips.
(Note:Safety clips are only available when required by the client,the client have to pay additional if need safely clips)
Sealings of our acoples rapidos kamlock en acero inxidable:
>NBR
>EPDM
>PTFE envelop gasket
Other materials are available on request.
Threads of our racores camlock en acero inxidable:
>NPT
>BSP(We usually make the female thread parallel BSPP.male thread tapered BSPT)

Aluminum Stainless Steel PA Hose Connectors Camlocks
Aluminum Stainless Steel PA Hose Connectors Camlocks




Aluminum Stainless Steel PA Hose Connectors Camlocks

Aluminum Stainless Steel PA Hose Connectors CamlocksAluminum Stainless Steel PA Hose Connectors CamlocksAluminum Stainless Steel PA Hose Connectors CamlocksAluminum Stainless Steel PA Hose Connectors CamlocksAluminum Stainless Steel PA Hose Connectors Camlocks
Aluminum Stainless Steel PA Hose Connectors Camlocks


Packing & Delivery

Carton and wooden case



Aluminum Stainless Steel PA Hose Connectors Camlocks

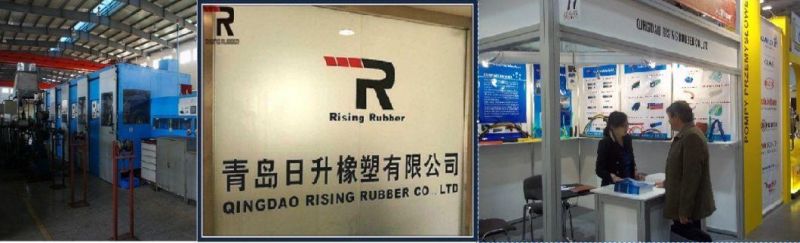

COMPANY INFORMATION

Aluminum Stainless Steel PA Hose Connectors Camlocks


RISING RUBBER, as a professional manufacturer and exporter with experience of 10 years, offers a broad range of Hydraulic Hose, various PVC Hoses, Air Hose, Fuel Hose, Suction & Discharge Hose, Sand Blasting Hose, Fittings and relative products to suit different types of applications.

Designed in compliance with international quality standards (SAE, DIN, ISO), our range of products is an outcome of persistent endeavors to attain maximum client satisfaction.

Our hydraulic hose production lines include HIGH-SPEED and HIGH-TECH bunching machines, braiding machines, and LIQUID NITROGEN COOLING SYSTEM, which promotes our capacity to 150 000 meters per month and quality far ahead of competitors. A comprehensive laboratory offers inspection covering all production process from raw material, semifinished, to finished products and lasting to quality tracibility system after sale.

Today, we have a distinguished client list in the construction, mining & earthmoving industries. With strict quality control system and annual production capacity of 4 million meters, our products are also reaching foreign shores through markets in the Europe, North America, East Asia and other areas.

We believe our success is tied directly to the profitable growth and satisfaction of our customers. So if interested, do not hesitate to contact us.


RELATED PRODUCT

We have full series of SAE and EN standard, including:

Wire braided: SAE R1/DIN EN 1SN, SAE R2/DIN EN 2SN, SAE R16, SAE R17
Wire spiral: SAE R9, R12, R13, DIN EN 4SP, DIN EN 4SH
Textile braided: SAE R3, SAE R6, SAE 5
Thermoplastic: SAE R7, SAE R8


INDUSTRIAL HOSE
Air hose--WP 20 bar/300 PSI, BP 60 bar/ 900 PSI. 50-100M per roll.
Water hose--WP 20 bar/300 PSI, BP 60 bar/ 900 PSI. 50-100M per roll.
Suction hose--Water suction hose, water discharge hose, oil suction hose, oil discharge hose.
Sand blast hose--High abrasion resistant tube.
Welding hose--Oxygen hose, Acetylene hose, Twin hose

PVC HOSE
PVC Steel Reinforced Hose--for water suction and conveying.
PVC Fiber Reinforced Hose--For food grade liquid.
PVC Helix Suction Hose--plastic spiral reinforced.
PVC Garden Hose--for home and agriculture usage.
PVC Layflat Hose--agriculture irrigation and industry watering.

HOSE FITTINGS
HOSE PROTECTOR
SILICONE HOSE
RADIATOR HOSE


If any need or questions, pls do not hesitate to contact me.

It's more than happy to be on your service.




FAQ ( Frequently Asked Question)

1. Is sample available?

Free samples.

2. How long will I get my order?

General production time for 1x20 feet container is 10-15 days, for 1x40 feet container 20-25 days.

3. How will my order be packed?

All hose is packed by 2 plies of PVC film, inner is tranparent, outer is color and thick one. (Color can be ordered as customer like). Special packing like Reel and Pallet also available. Fitting is packed by 3 plies, carton, PVC bag and then pallet.

4. What should I do if I find quality problem in using?

12 months Quality Garentee for all of our products. We offer replacement for any defective caused by non-human reasons.

5. Is it possible to visit your factory?

We warmly welcome you to visit our factory at any of your convenient time.

QINGDAO RISING RUBBER CO.,LTD
Address: Room 718, No. 658 Jinggangshan Road, E&T dvp zone, Qingdao, China



If you have any interests on our product, please contact us.
