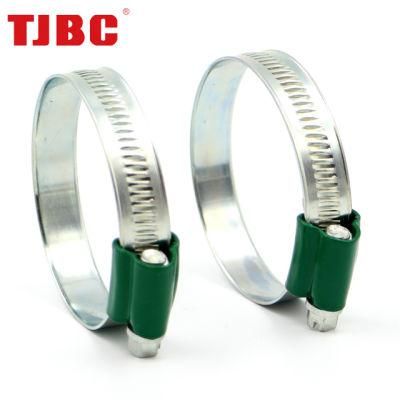

W1 Galvanized Iron British Type Worm Drive Hose Clamp with Color Tube Housing for Automobile Engine, 68--85mm
Tianjin City Kainuo Industrial Company Limited- Standard：DIN, GB
- Material：Zinc Plated Steel
- Connection：Hose Clamp
- Surface Treatment：Galvanized Sheet
- Head Type：Round
- Product Name：British Type Hose Clamp
Base Info
- Model NO.：YS01A126885
- Type：Worm Gear Hose Clamp
- Scope of Application：Auto Parts
- Certification：ISO,TUV,BSCI,IATF
- Transport Package：Plastic Bag Carton
- Specification：68-85mm
- Trademark：TJBC
- Origin：Tianjin
- HS Code：732690
- Production Capacity：10000 PCS,Day
Description
ItemNo/ / mm mm W1 W2 W4 pcs/bag pcs/carton suggested
installtorque 8-14 9.7 YS01A9814 YS01B9814 YS01D9814 100 2000 3.0Nm 11-17 9.7 YS01A91117 YS01B91117 YS01D91117 100 2000 3.0Nm 13-20 9.7 YS01A91320 YS01B91320 YS01D91320 100 2000 3.0Nm 15-24 9.7 YS01A91524 YS01B91524 YS01D91524 100 2000 3.0Nm 18-28 9.7 YS01A91828 YS01B91828 YS01D91828 100 2000 3.0Nm 22-32 9.7 YS01A92232 YS01B92232 YS01D92232 50 1000 3.0Nm 26-38 9.7 YS01A92638 YS01B92638 YS01D92638 50 500 3.0Nm 32-44 9.7 YS01A93244 YS01B93244 YS01D93244 50 500 3.0Nm 38-50 9.7 YS01A93850 YS01B93850 YS01D93850 50 500 3.0Nm 44-56 9.7 YS01A94456 YS01B94456 YS01D94456 25 500 3.0Nm 50-65 9.7 YS01A95065 YS01B95065 YS01D95065 25 250 3.0Nm 58-75 9.7 YS01A95875 YS01B95875 YS01D95875 25 250 3.0Nm 68-85 9.7 YS01A96885 YS01B96885 YS01D96885 10 250 3.0Nm 77-95 9.7 YS01A97795 YS01B97795 YS01D97795 10 250 3.0Nm 15--24 11.7 YS01A121524 YS01B121524 YS01D121524 50 500 4.8Nm 19--28 11.7 YS01A121928 YS01B121928 YS01D121928 50 500 4.8Nm 22--32 11.7 YS01A122638 YS01B122638 YS01D122638 50 500 4.8Nm 26--38 11.7 YS01A122638 YS01B122638 YS01D122638 50 500 4.8Nm 32--44 11.7 YS01A123244 YS01B123244 YS01D123244 50 500 5.2Nm 38--50 11.7 YS01A123850 YS01B123850 YS01D123850 50 500 5.2Nm 44--56 11.7 YS01A124456 YS01B124456 YS01D124456 25 500 5.2Nm 50--65 11.7 YS01A125065 YS01B125065 YS01D125065 25 500 5.2Nm 58--75 11.7 YS01A125875 YS01B125875 YS01D125875 25 200 5.2Nm 68--85 11.7 YS01A126885 YS01B126885 YS01D126885 25 200 5.2Nm 77--95 11.7 YS01A127795 YS01B127795 YS01D127795 10 200 5.2Nm 87--112 11.7 YS01A1287112 YS01B1287112 YS01D1287112 10 200 5.2Nm 104--138 11.7 YS01A1214138 YS01B1214138 YS01D1214138 10 100 5.2Nm 130--165 11.7 YS01A12130165 YS01B12130165 YS01D12130165 - 100 5.2Nm 150--180 11.7 YS01A12150180 YS01B12150180 YS01D12150180 - 100 5.2Nm 175--205 11.7 YS01A12175205 YS01B12175205 YS01D12175205 - 100 5.2Nm 200--231 11.7 YS01A12200231 YS01B12200231 YS01D12200231 - 50 5.2Nm 226--256 11.7 YS01A12226256 YS01B12226256 YS01D12226256 - 50 5.2Nm 251--282 11.7 YS01A12251282 YS01B12251282 YS01D12251282 - 50 5.2Nm 277--307 11.7 YS01A12277307 YS01B12277307 YS01D12277307 - 50 5.2Nm
installtorque
| Material | Band | Housing | Screw |
| W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel |
| W2 | AISI 430SS | AISI 304SS | Zinc plated steel |
| W4 | AISI 304SS | AISI 304SS | AISI 304SS |
