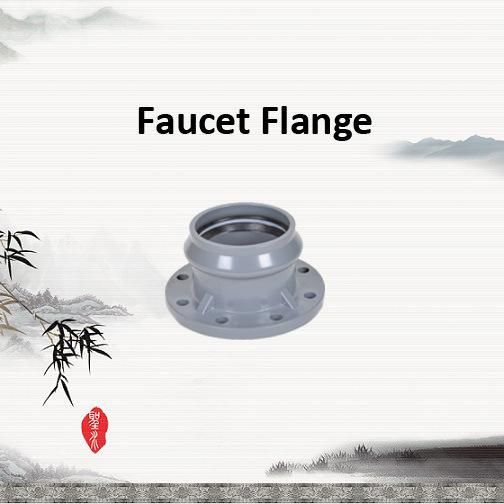

PVC Pn10 Faucet Flange with Rubber Ring Seal

CHANGZHOU XITA PLASTIC CO., LTD.

Type：Welding Flange
Material：UPVC

Base Info

Model NO.：800150100
Structure：Flanges
Connection：Flanged
Sealing Surface：FF
Manufacturing Way：Forging
Color：Grey; Blue; White
Manufacturing Type：Injection
Standard Type：DIN
Material Type：Plastic
Transport Package：Cartons
Specification：63-400MM
Trademark：XITA
Origin：Changhzou
HS Code：3917400000
Production Capacity：50000tons Per Year

Description

Dimension(mm)D0D1D2D3d1THLn6374.50 65.30 165.00 125.00 62.00 76.00 17.30 84.00 4 7588.50 77.50 185.00 145.00 73.50 84.50 18.00 92.30 4 90105.30 92.50 200.00 160.00 88.50 95.00 18.80 103.00 8 110125.70 111.50 225.00 180.00 108.00 122.00 19.50 134.00 8 125142.10 127.00 250.00 210.00 123.00 135.00 21.60 135.00 8 160181.50 162.30 285.00 240.00 158.00 141.00 22.80 150.00 8 200225.50 202.50 345.00 295.00 197.00 152.00 26.50 163.00 8 225250.50 227.50 345.00 295.00 221.00 139.00 30.00 153.50 8 250276.50 252.30 395.00 350.00 247.00 152.00 32.00 167.50 12 315347.50 318.30 445.00 400.00 312.00 198.00 35.00 210.00 12 355388.50 359.00 510.00 460.00 326.00 235.00 38.00 210.00 16 400435.00 404.00 570.00 510.00 568.20 228.00 42.50 247.00 16

SpecificationPVC Faucet Flange63308001502007524800150300901880015040011012800150500125 80015060016078001507002006800150800225 80015090025038001510003152800151100355 8001512004002

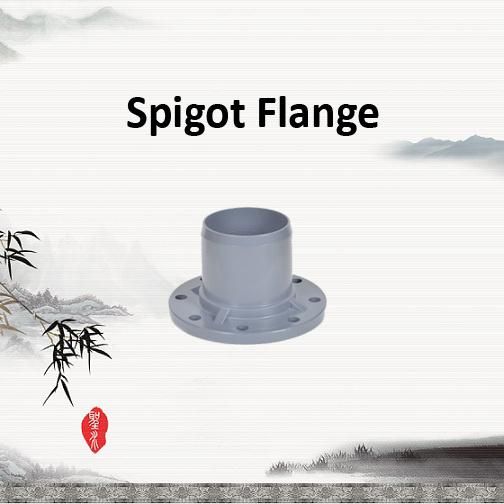

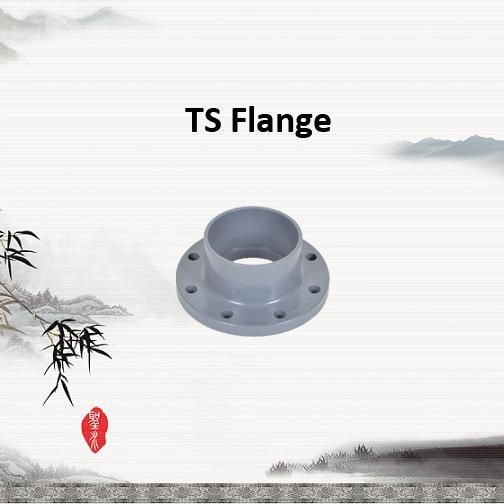

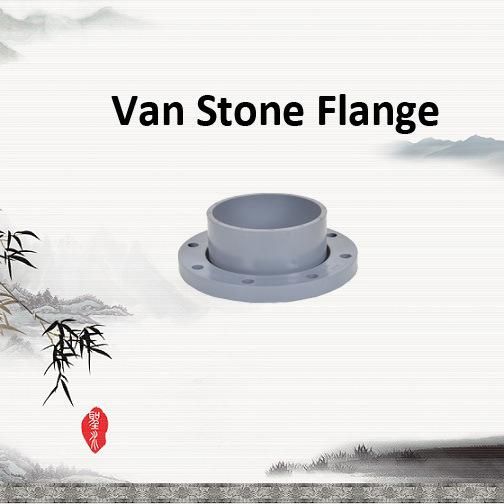

Other Flange

Applicable places for PVC pipe
Water supply engineering
Construction engineering
Well drilling engineering
Salt engineering
Gas supply engineering
Chemical engineering
Agricultural engineering
Mining engineering
Mining plant
Supply
Free way engineering
Golf course engineering
