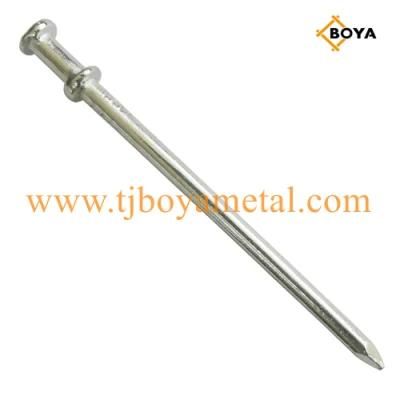

20d Chinese Factory Price for Duplex Nails

Tianjin Boya Metal Products Co., Ltd.

Standard：ANSI, DIN, GB, JIS
Type：Common Nail
Material：Iron
Treatment：Polished,Galvanized,Hot Dipped
Shank：Smooth Shank
Head Type：Two Head

Base Info

Model NO.：3,8′′-6′′
Point：Sharp Point
Transport Package：Shipping by Sea
Specification：2D-60D
Trademark：BOYA
Origin：Tianjin China
HS Code：7317000000
Production Capacity：5000tons,Year

Description

material Q195/Q235surface treatment Bright, E.G, H.D.G, M.G, V.C, C.C, P.C and so onHeaddouble head shank smooth shankpoint diamond point package Carton, Plastic bag, Box, Bucket, Plastic box, Wooden case

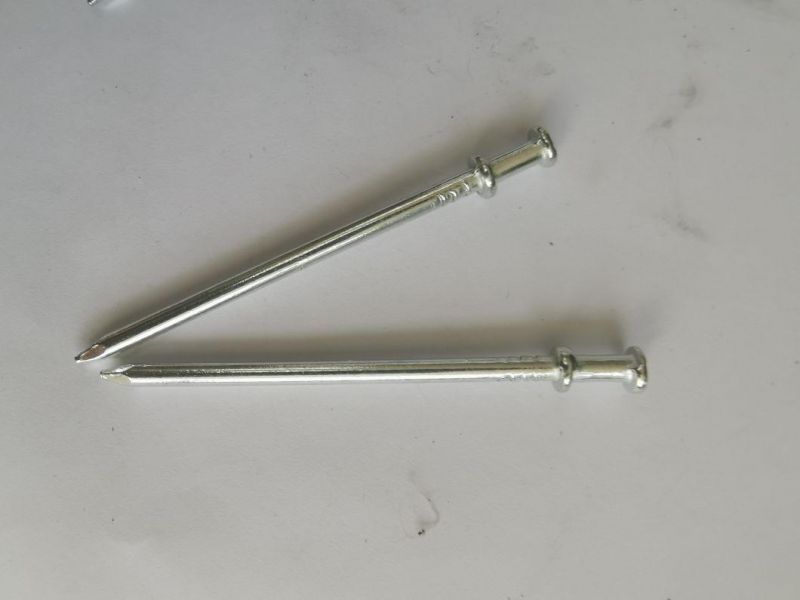

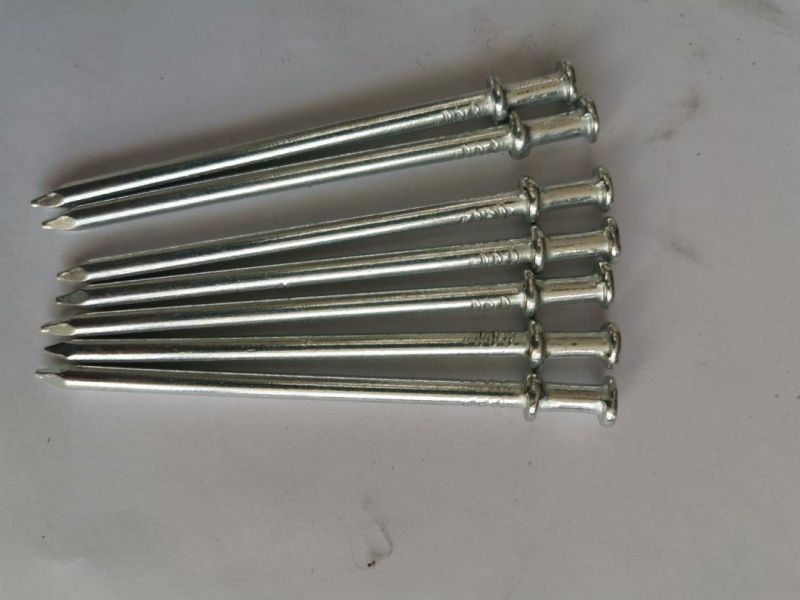

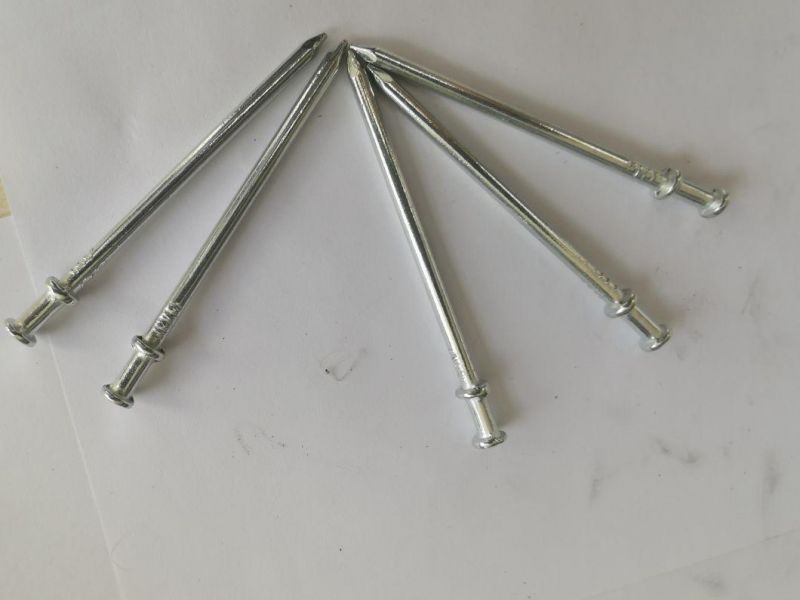

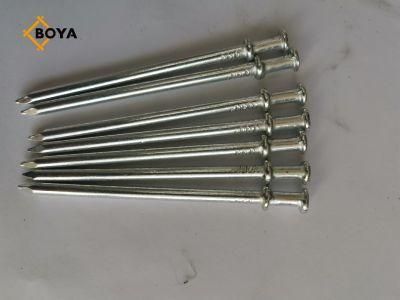

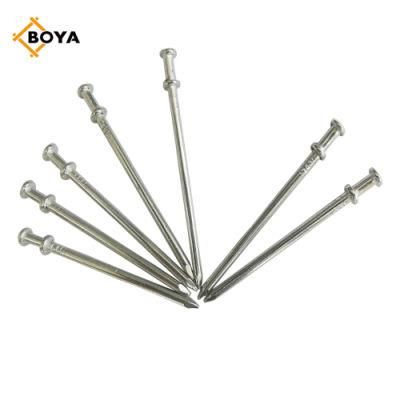

Details Images

Duplex Head Nail Specification:

Size	Gauge No.	Length Overall in.	Length under Lower Head in.	Diam Top Head in.	DiamLower Headin.	Distance betweenHeadin.	Approx.Numberper lb
6d	11 1/2	2 7/64	1 3/4	3/16	17/64	1/4	156
8d	10 1/4	2 5/8	2 1/4	15/64	9/32	''	90
10d	9	3 3/16	2 3/4	1/4	5/16	5/16	59
16d	8	3 1/2	3	9/32	11/32	3/8	45
20d	7	4 1/64	3 1/2	5/16	3/8	''	28
30d	6	4 37/64	4	21/64	7/16	7/16	22

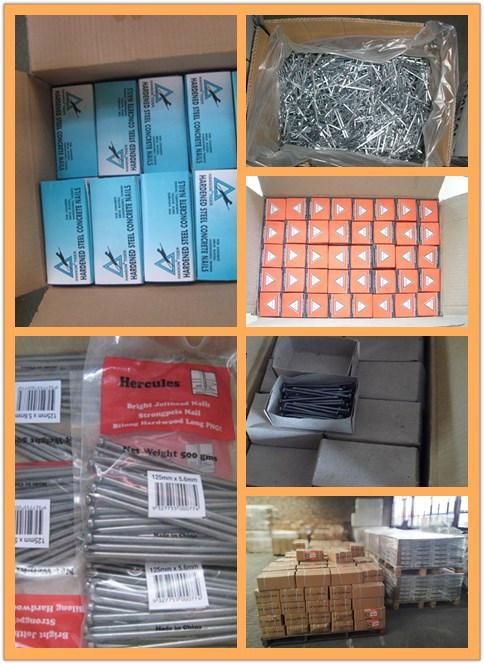

Package Details

1. Bulk packing: 25 kg in a carton
2. Small packing: 1 kg in a box or bag then carton
3. Other packing please contact sales to quote.

20d Chinese Factory Price for Duplex Nails

20d Chinese Factory Price for Duplex Nails

FAQ

1. How to make a inquiry of Duplex Head Nails?
You need to provide material, wire diameter, size and also quality to ask an offer.

2. Could you offer free samples?
Yes, we can offer free samples for you to test the quality, but the shipping fee will on your side.
We will refund the shipping fee if you make an order.

3. How is your payment term?
Generally, our payment term is 30% T/T deposit, 70% balance against B/L copy. Other payment term we can also discuss.

Category

Combination & Joint Fittings

Gasket & Washer

Other Fastener & Fitting

Self-tapping Screws

Wire Thread Insert

Recommended

Stainless Steel Hex Socket Bolts Cheap and High Quality Square Bolt/Wing Bolt/Eye Bolt/Knurled Bolt/Stud Bolt
t(mm)normalmaxminmaxmin≈M1.60.353.02.91.21.00.9//1.1M20.43.83.71.51.51.4//1.9M2.50.455.04.71.51.51.4//2.5M30.56.05.72.02.12.021.20.952.5M40.78.07.642.52.62.521.81.553.4M50.8109.6433.13.022.32.054.1M611211.5744.124.022.52.254.9M81.251615.5755.145.023.53.26.2M101.52019.4866.146.024.44.17.6M121.7
Stainless Steel Hex Bolt 20 Carriage Bolt SS304 Flange Bolt A2 T Bolt M10 Square Head Bolt Ss201 Hex Socket Screw Round Head Hex Socket Bolt
t(mm)normalmaxminmaxmin≈M1.60.353.02.91.21.00.9//1.1M20.43.83.71.51.51.4//1.9M2.50.455.04.71.51.51.4//2.5M30.56.05.72.02.12.021.20.952.5M40.78.07.642.52.62.521.81.553.4M50.8109.6433.13.022.32.054.1M611211.5744.124.022.52.254.9M81.251615.5755.145.023.53.26.2M101.52019.4866.146.024.44.17.6M121.7

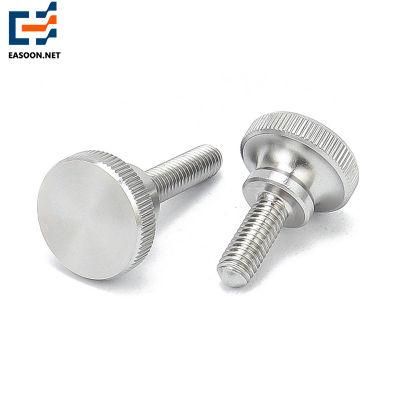

Pan Washer Head Hand Tighten Thumb Screw Steel Hand Tightening Thumb Screw Adjust Thumb Knob Knurl Screw Manual Anti-Loose Locking Screw
MaterialStainless steel: A2-70, A4-70, 304,316, etcCarbon steel: SAE1008, Q195, ST37, etcBrass, Copper, AluminumSurfaceHDG, Zinc plated, Geomet, Dacromet, Black Oxide, Phosphatizing, Powder Coating and Electrophoresis.Grade4.8, 5.6, 6.8, 8.8, 9.8, 10.9, 12.9.StandardISO, DIN, ANSI, JIS, BSW, ASME an

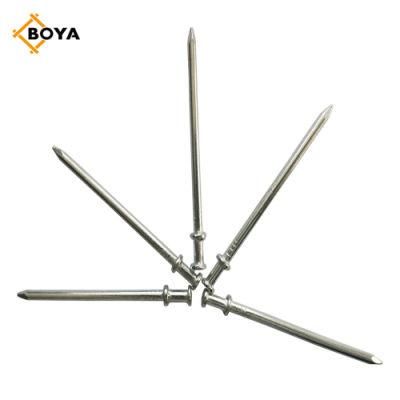

Double Head Nails Manufacturer for Brazil
materialQ195/Q235surface treatmentBright, E.G, H.D.G, M.G, V.C, C.C, P.C and so onHeaddouble headshanksmooth shankpointdiamond pointpackageCarton, Plastic bag, Box, Bucket, Plastic box, Wooden caseDetails ImagesDuplex Head Nail Specification:SizeGauge No.Length Overallin.Length under Lower Headin.Di
Factory Hot Sale Supply Polished Double/ Two/Duplex Head Nail
materialQ195/Q235surface treatmentBright, E.G, H.D.G, M.G, V.C, C.C, P.C and so onHeaddouble headshanksmooth shankpointdiamond pointpackageCarton, Plastic bag, Box, Bucket, Plastic box, Wooden caseDetails ImagesDuplex Head Nail Specification:SizeGauge No.Length Overallin.Length under Lower Headin.Di
Professional Sharp Diamond Point Double Headed Nail with Ce Certificate
materialQ195/Q235surface treatmentBright, E.G, H.D.G, M.G, V.C, C.C, P.C and so onHeaddouble headshanksmooth shankpointdiamond pointpackageCarton, Plastic bag, Box, Bucket, Plastic box, Wooden caseDetails ImagesDuplex Head Nail Specification:SizeGauge No.Length Overallin.Length under Lower Headin.Di

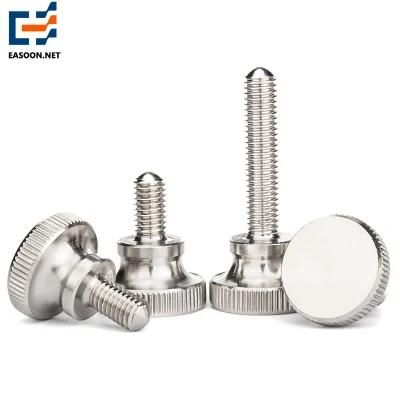

Stainless Knurled Head Thumb Screws Step Shoulder Knurl Knob Hand Tighten Screws Right Hand Thread Round Head Black Knurled Thumb Screws
