• Model NO.：HS129
• Specification：5.08mm pitch
• Trademark：none
• Origin：China
• Production Capacity：100000000PCS,Year

Basic Info.

Model NO. HS129 Specification 5.08mm pitch Trademark none Origin China Production Capacity 100000000PCS/Year

Product Description

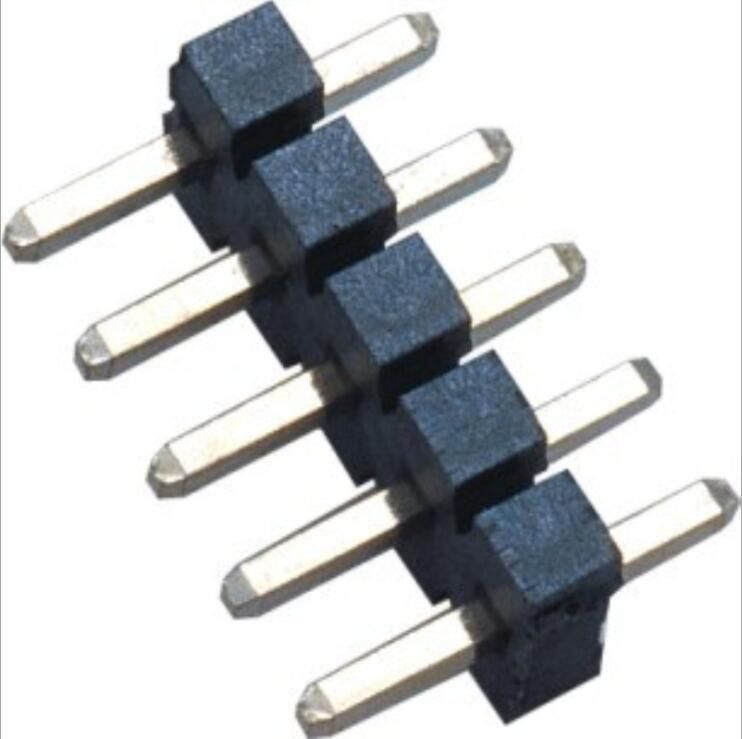

Plastic H=2.5 Connector 5.08mm Pitch Straight Plug Single Row Pin Header
Rated voltage: 100V AC(rms)/DC
Rated current: 5.0A AC(rms)/DC
Contact resistance: 20mΩ (maximum)
Insulation resistance: 1,000MΩ (minimum)
Withstand voltage: AC500V AC r.m.s
Insulation material: High Temperature Plastic (UL94V-0)
Contact material: copper alloy
Contact coating: Tin OVER Ni
Operating temperature: -40°C to +105°C
Production process: cold pressing
Application range: PCB
MOQ;100PCS
lead time:about 5-10 days
export port:ningbo or shanghai port
shippment terms:by sea or by air or by express
samples is free,freight collect.
best price with high quality







   SHIPPING & PAYMENT
--------------------------------------------------------------------
 1. FedEx/DHL/TNT/UPS/EMS/SF for samples, Door-to- Door.

2. By Air or by Sea for Mass production.Customers specifying freight forwarders or negotiable shipping methods.

3.Delivery Time: 3-7 days for samples; 10-30 days for Mass production.
 4.Payment Detail: L/C, T/T, Western union, Paypal, or other methods.
