Preformed Fittings (Suspension Clamp)
Qingdao Powtech Electronics Co., Ltd.- Standard：DIN, ANSI, GB, JIS, BSW
- Material：Aluminium Clad Steel
- Connection：Heavy Duty Clamp
- Surface Treatment：Galvanised
- Application：Straight Pole,Tower
- Color：White
Base Info
- Model NO.：AXC
- Usage：Electrical Appliance
- Transport Package：Wooden Case
- Specification：CE, SGS, ISO
- Trademark：OPTELEC
- Origin：China
- HS Code：7316
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. AXC Usage Electrical Appliance Transport Package Wooden Case Specification CE, SGS, ISO Trademark OPTELEC Origin China HS Code 7316 Production Capacity 10000PCS/MonthProduct Description
Preformed Fittings (Suspension Clamp)Description:
The aluminium suspension clamp is designed to gently, but firmly support ADSS cable. The AQXM suspension clamp features the following : band mount design, hinged keeper, single-bolt clamping, and stackability for multi-cable installations.
Configuration:
| S.No | Description | Qty | Material |
| 1 | Keeper | 1 | Aluminium alloy |
| 2 | Cushion inserts | 1 | Synthetic rubber |
| 3 | Captured bolt & washer | 1 | Stainless Steel |
| 4 | Lock nut | 1 | Stainless Steel |
Data sheet:
| Model | Max span length | RTS | Weight(kg) |
| AQXM200 | 200m | 40KN | 1.1 |

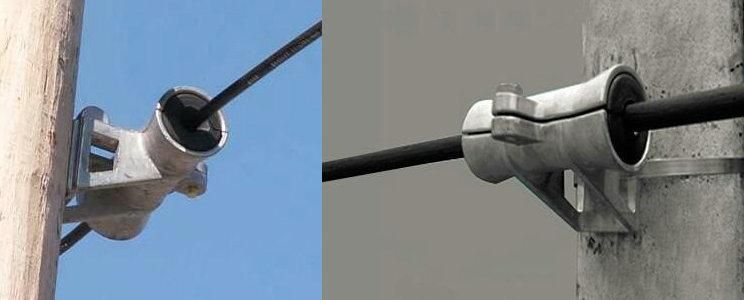

Installation:

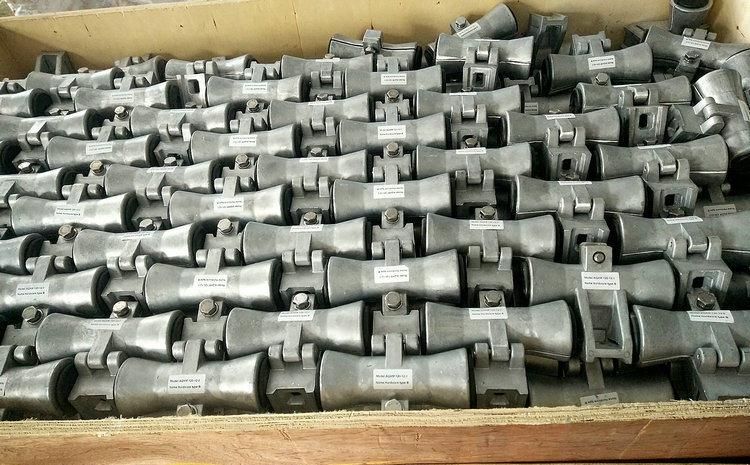

Package:
