• Model NO.：SWT,F
• Hardness：HRC28-32
• Finish：Black Phospating
• Run out：0.005mm
• Thread Precision：ISO 4h
• Transport Package：Carton Box
• Specification：M10-M400
• Trademark：Swift
• Origin：China
• HS Code：7318160000
• Production Capacity：200000,Month

Basic Info.

Model NO. SWT/F Hardness HRC28-32 Finish Black Phospating Run out 0.005mm Thread Precision ISO 4h Transport Package Carton Box Specification M10-M400 Trademark Swift Origin China HS Code 7318160000 Production Capacity 200000/Month

Product Description

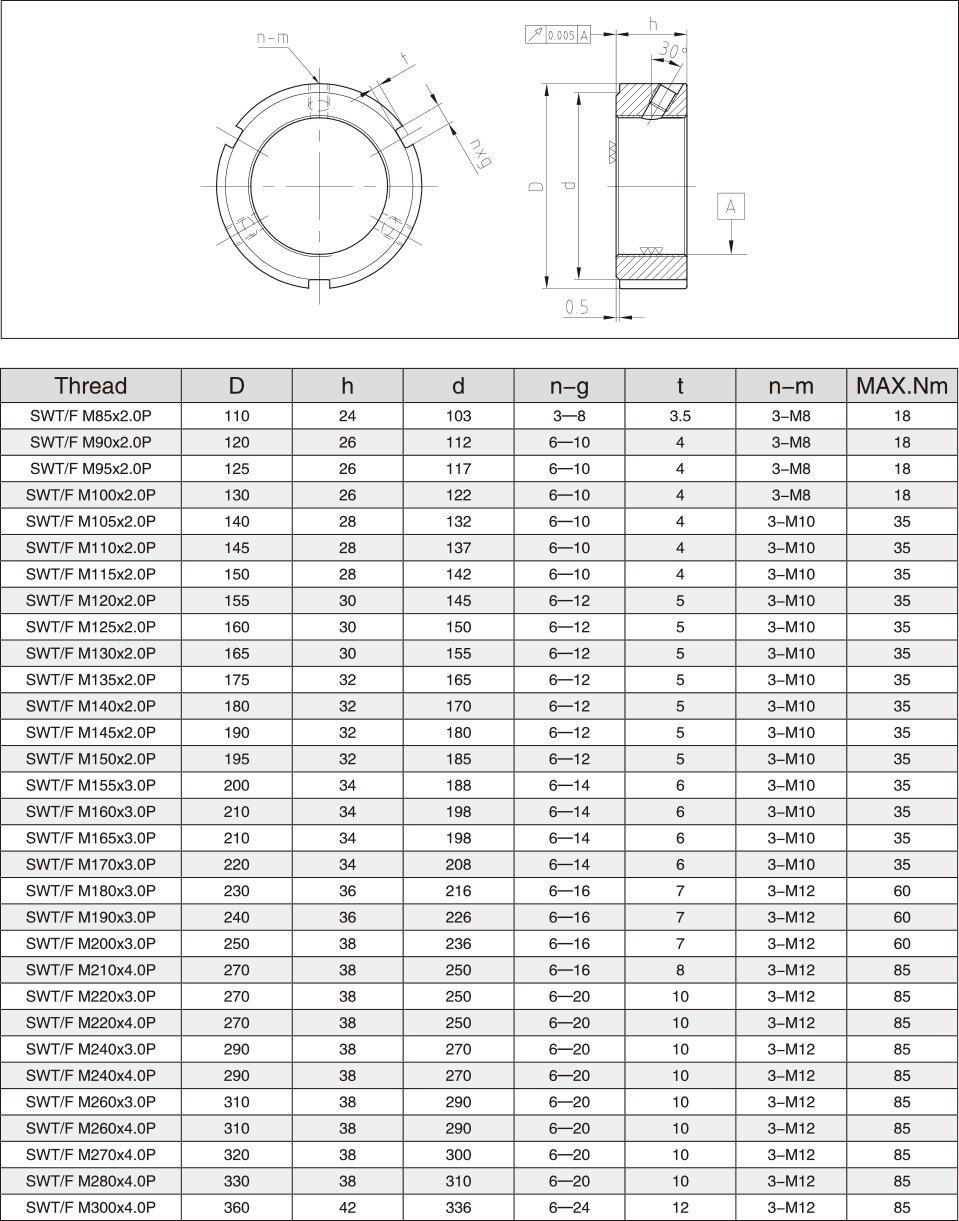

For SWT/F model, its brass locking pin forms an angle of 30° with the thread. It does not bear the axial load applied on the thread. Once the nut is tightened, the thread surface will not release axial load and the nut will not be deformed. Three locking pins with equal spaces can precisely position the nut, keep it prependicular to the shaft. SWT/F model can ensure its precision even after mutiple times of assembly and disassembly.
