• Body Material：316 S.S.; 316L S.S.; 304 S.S.; 304L S.S.
• Application：Vacuum
• Working Temperature：-31ºC to 204ºC
• Size：1,16 in. to 1 1,2 in.
• Seal：Elastomeric; Copper
• Connection Type：NPT; Bsp; ISO; Gfs; Tube Fitting
• Certificate：CE; ABS; ISO9001; ISO 14001; ISO 45001.
• Transport Package：Carton; Wooden Case
• Trademark：Hikelok
• Origin：China
• HS Code：7307290000
• Production Capacity：5000 PCS Per Month

Basic Info.

Body Material 316 S.S.; 316L S.S.; 304 S.S.; 304L S.S. Application Vacuum Working Temperature -31ºC to 204ºC Size 1/16 in. to 1 1/2 in. Seal Elastomeric; Copper Connection Type NPT; Bsp; ISO; Gfs; Tube Fitting Certificate CE; ABS; ISO9001; ISO 14001; ISO 45001. Transport Package Carton; Wooden Case Trademark Hikelok Origin China HS Code 7307290000 Production Capacity 5000 PCS Per Month

Product Description

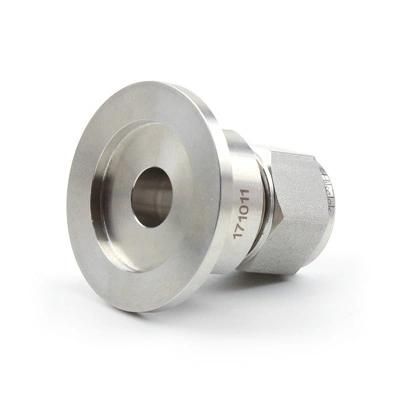

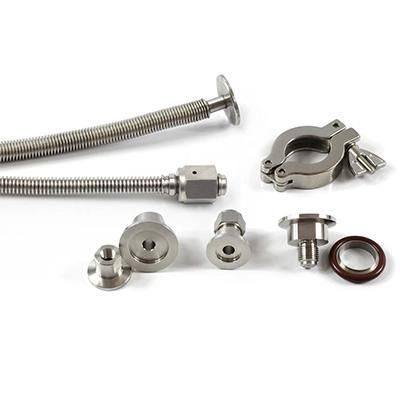

Stainless Steel KF Flange to Tube Fitting Vacuum Adapter Fittings

Features:

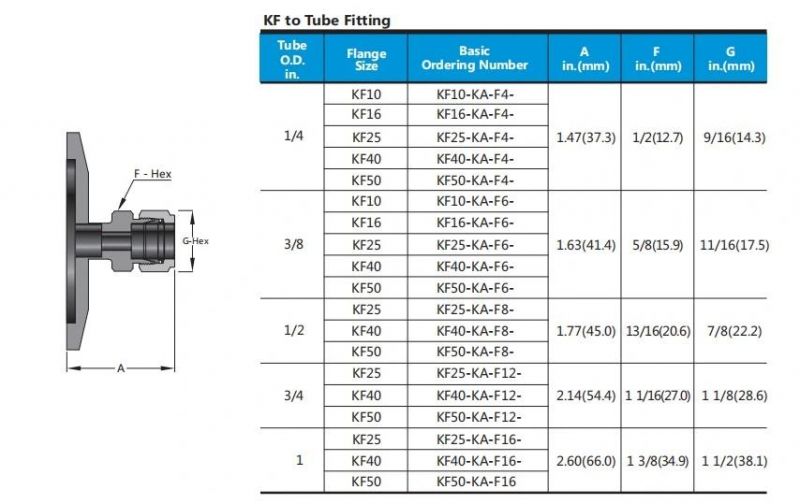

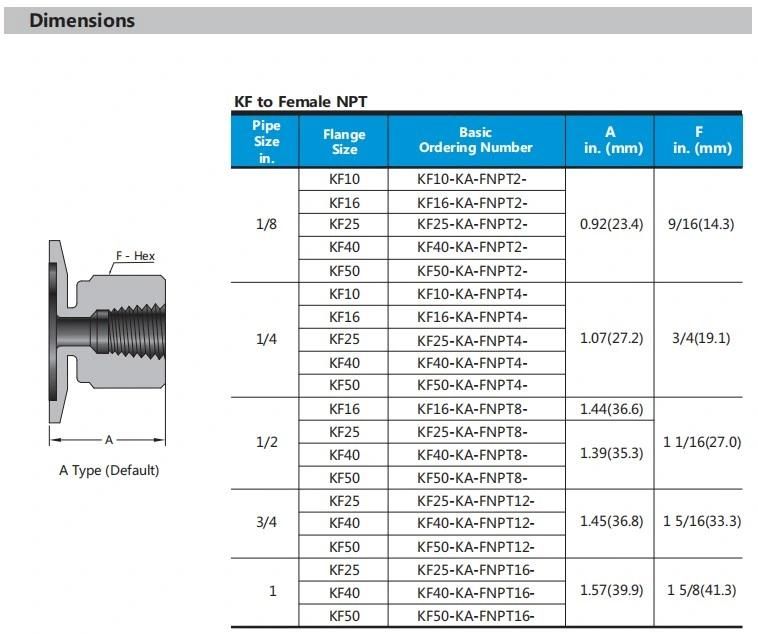

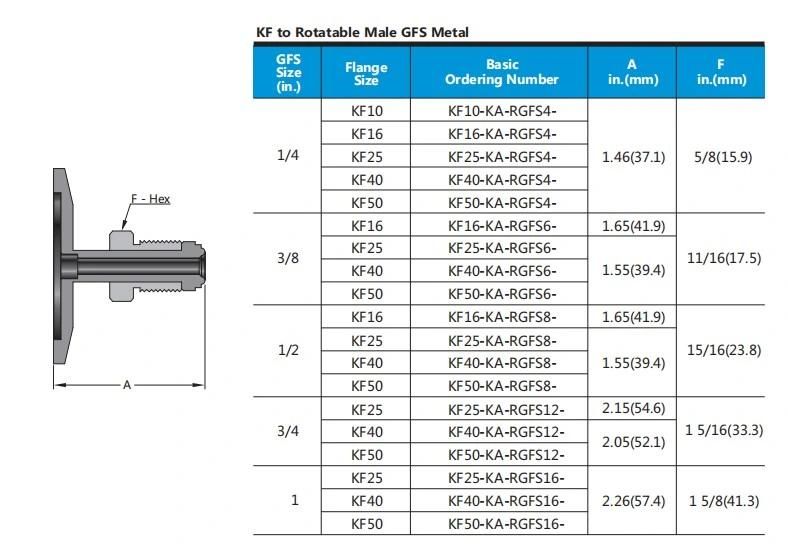

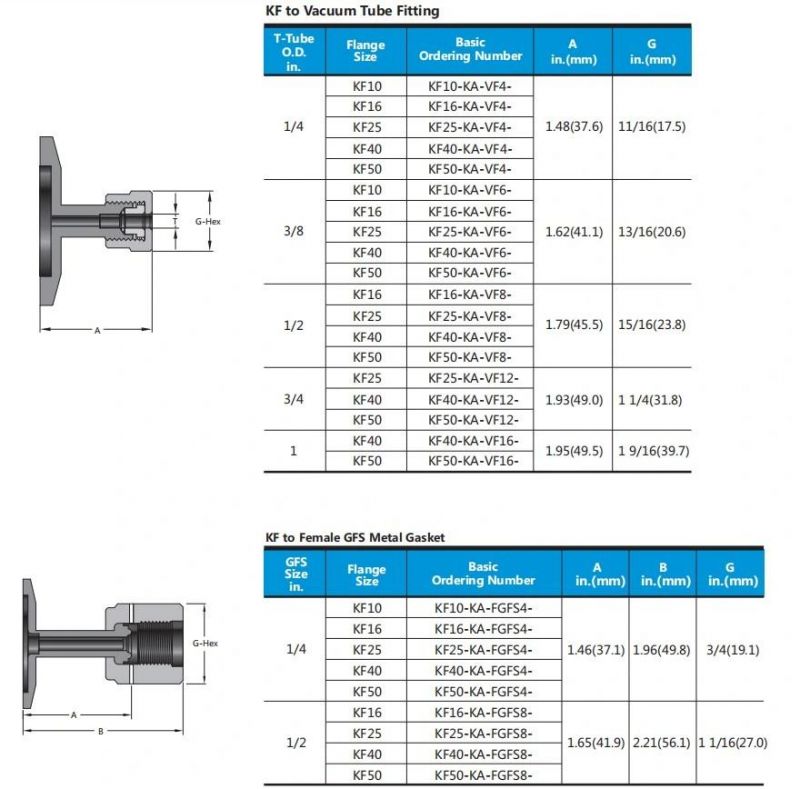

 KF, CF to NPT, BSPT, GFS, CIR-LOK tube fitting
 Copper seal vacuum range: ≥ 10^-12 Torr
 Elastomeric seal vacuum range: ≥ 10^-8 Torr
 Copper seal working temperature from -325ºF to 842°F (-200ºC to 450ºC)
 Elastomeric seal working temperature from -4°F to 302°F (-20ºC to 150ºC)





 Company Introduce:




Introduction of Hikelok® Brand1.Established time: in 2011
2.Experience/Advantage:focused on precision fluid fittings and valves for more than 10 years.We enjoy a good reputation in the foreign business .3.Product's style is similar to well-known brand Swagelok ®and Parker ®.
4.Products introduction:the main products of hikelok include ball valves,needle valves,instrument manifolds,bellows valves,check valves,twin ferrules series tube fittings,instrument pipe fittings,weld fittings and other kinds of instrumentation valves and fittings.5.Body materials: stainless steel,alloy steel, brass,special alloy and carbon steel
6.Standard products:ANSI,ASME,ASTM,API,MSS,ISO,EN,GB,JB,HG ect.
7.Application:widely used in power generation,petroleum,petrochemical,natural gas, semiconductor,laboratory,shipbuilding, steel,chemical industry and other fields8.Certificate:ISO9001 ,2015;ISO14001;ISO45001;ABS;CE


Certifications:

ISO9001 ,2015;ISO14001;ISO45001;ABS;CE


Our Services:
 From quote to delivery, we can provide the detailed support you need:

1. CAD drawing

2. P&ID

3. Component selection

4. Bill of material

5. Professional services such as bending and welding

6. Testing to guarantee the system

7. Professional packaging and delivery

8. Give you solution within 24 hours
