• Model NO.：RJ-TEE
• Standards：Kf Nw Flange Standard
• Stainless Steel：SS304, SS316L
• Pressure：From Atmosphere to ~10-8 Torr or Mbar.
• Temperatures：~0° C and 120–180° C
• Flange Type：Kf, CF, ISO Bored Flange, Blank Flange
• Fittings Type：Kf 90deg Elbow, Kf 45deg Elbow, Kf 180deg Elbow
• Kf Fittings：Kf Elbow, Kf Tee, Cross, Kf Reducer
• ISO Fittings：ISO Elbow, ISO Tee, Cross, ISO Reducer
• CF Fittings：CF Elbow, CF Tee, Cross, CF Reducer
• Transport Package：Carton Box Inside, Wooden Cases Outside
• Specification：KF16-50
• Trademark：RUIJIA
• Origin：Wenzhou, China
• HS Code：7307290000
• Production Capacity：200000,M

Basic Info.

Model NO. RJ-TEE Standards Kf Nw Flange Standard Stainless Steel SS304, SS316L Pressure From Atmosphere to ~10-8 Torr or Mbar. Temperatures ~0° C and 120–180° C Flange Type Kf, CF, ISO Bored Flange, Blank Flange Fittings Type Kf 90deg Elbow, Kf 45deg Elbow, Kf 180deg Elbow Kf Fittings Kf Elbow, Kf Tee, Cross, Kf Reducer ISO Fittings ISO Elbow, ISO Tee, Cross, ISO Reducer CF Fittings CF Elbow, CF Tee, Cross, CF Reducer Transport Package Carton Box Inside, Wooden Cases Outside Specification KF16-50 Trademark RUIJIA Origin Wenzhou, China HS Code 7307290000 Production Capacity 200000/M

Product Description

KF vacuum fitting and vacuum flange
(1) KF vacuum fitting and flange consist of two flanges coupled together by a centering ring with a O-ring and a clamp.
(2) With this kind of connection provides many advantages, such as easy and quick mounting, assembly without any tools, unlimited orientation and easy interchangeability.
(3)The standard sizes for KF vacuum fittings and flanges are KF10, KF16, KF25, KF40, and KF50 with flange sizes NW10, NW16, NW25, NW40, and NW50.

KF vacuum fitting specification

Product Name	KF(NW) Vacuum fitting
Brand	RUIJIA
Size	KF16,KF25,KF40,KF50
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silocone,Buna-N seal
Standard	KF,ISO,CF Standard
Temperature	-200~800ºC
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pam³/sec or less

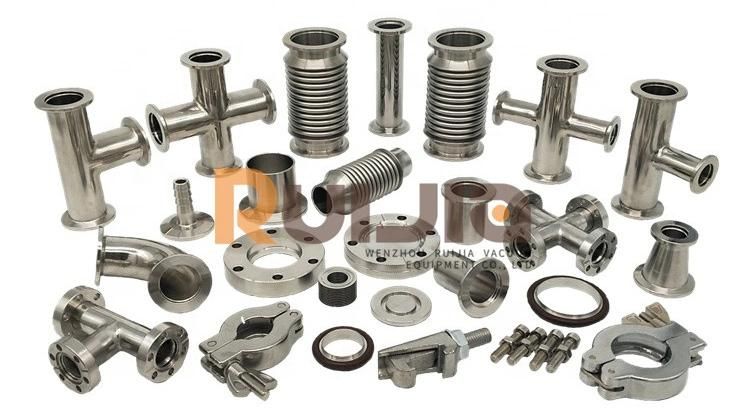

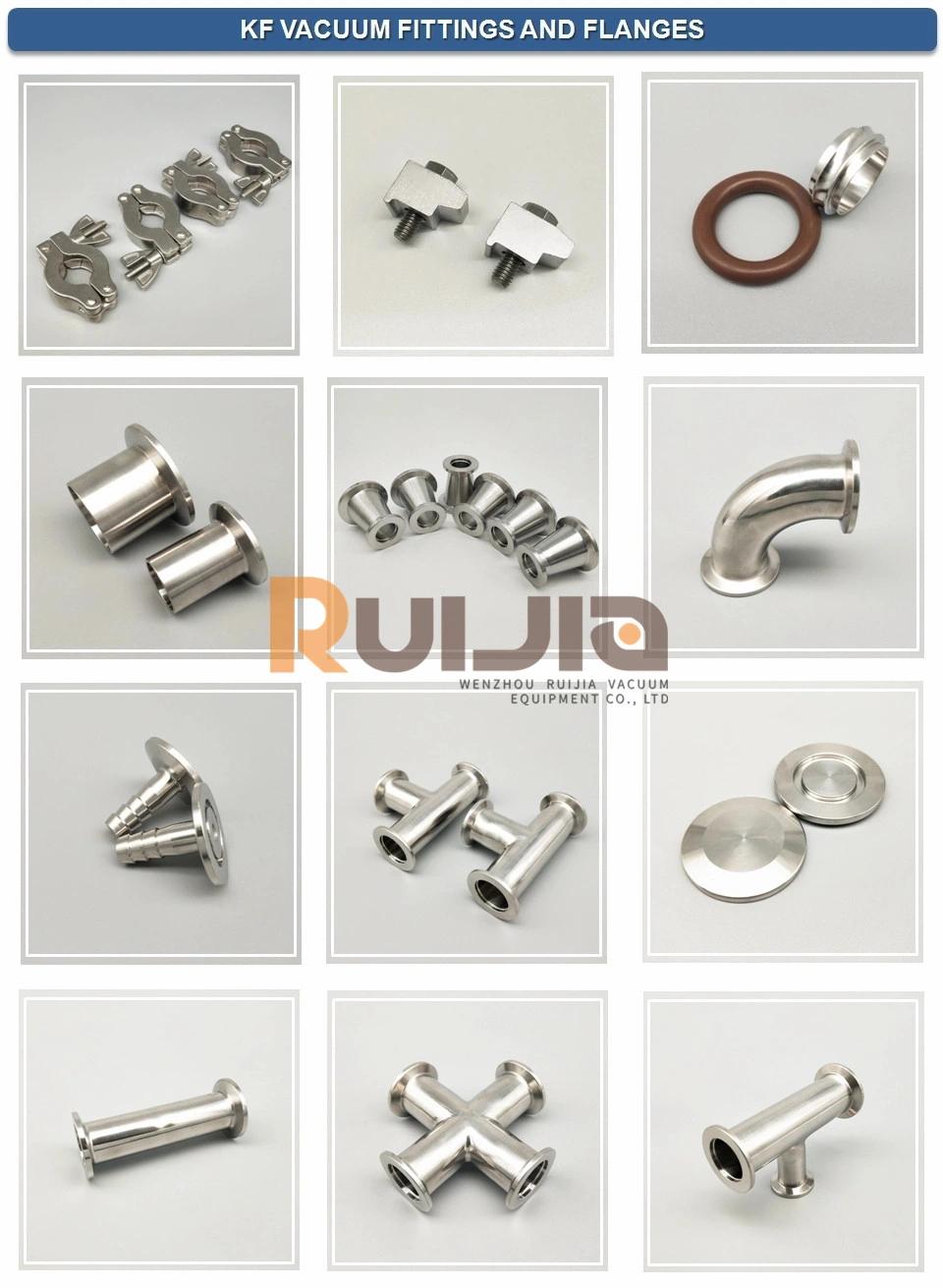

KF Vacuum fitting types

KF VACUUM Fittings, KF ELBOW, KF TEE, KF CROSS, KF REDUCER, KF blank flange,KF bored blank flange, KF socket weld flange, KF half nipple(short), KF half nipple(long) KF Bored flanges are manufactured to the ISO Standard and are compatible with other supplier's product.Application
Semiconductor, LCD, LED, solar energy,space development, accelerator,flat panel display, solar energy, photoelectric communication, biotechnology, 3C electronics and food industries

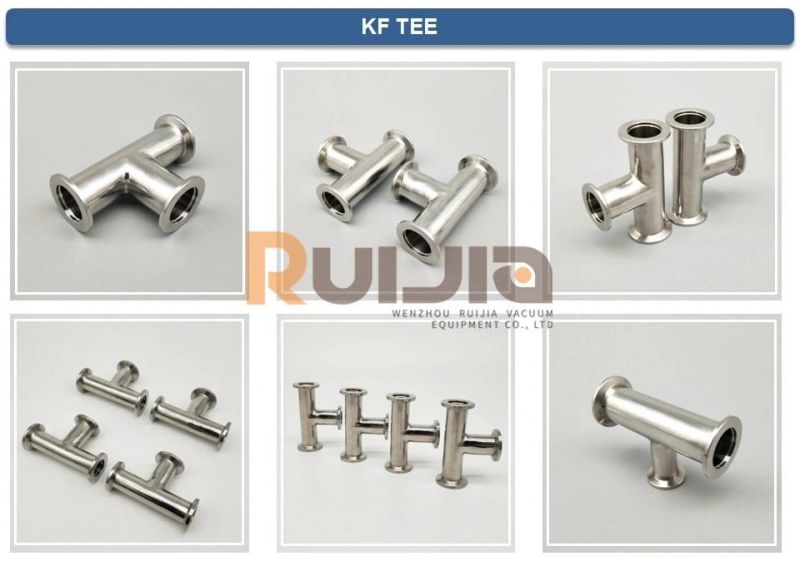

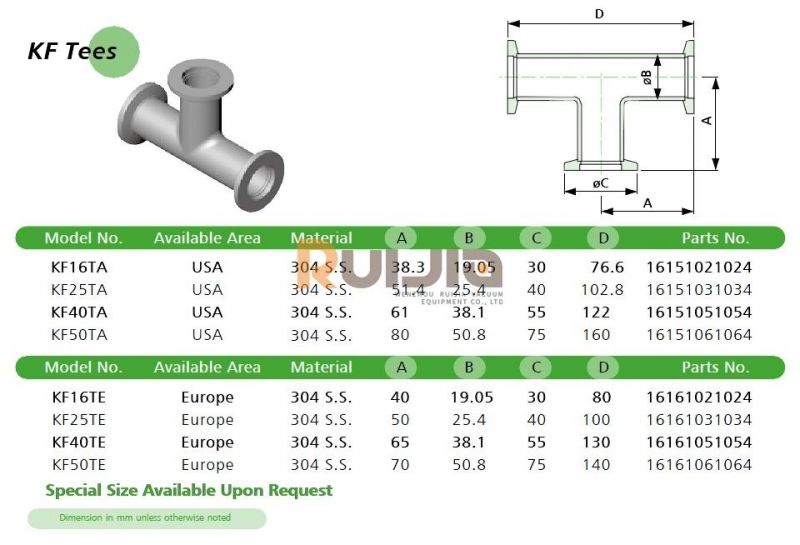

ISO-KF TEE
