• Model NO.：Universal Joint
• Specification：DN40-DN800
• Trademark：SOLID
• Origin：China
• Production Capacity：1000 Tons

Basic Info.

Model NO. Universal Joint Specification DN40-DN800 Trademark SOLID Origin China Production Capacity 1000 Tons

Product Description

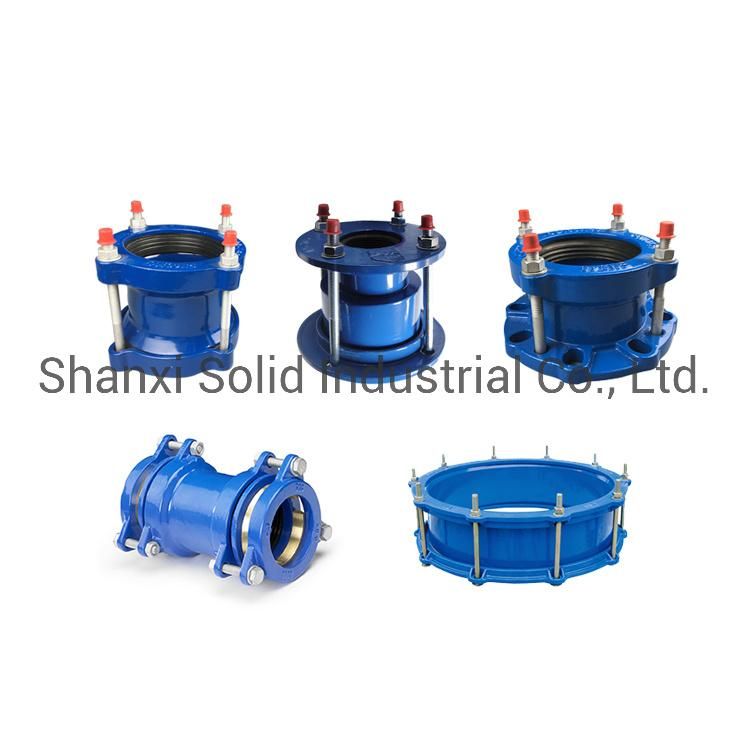

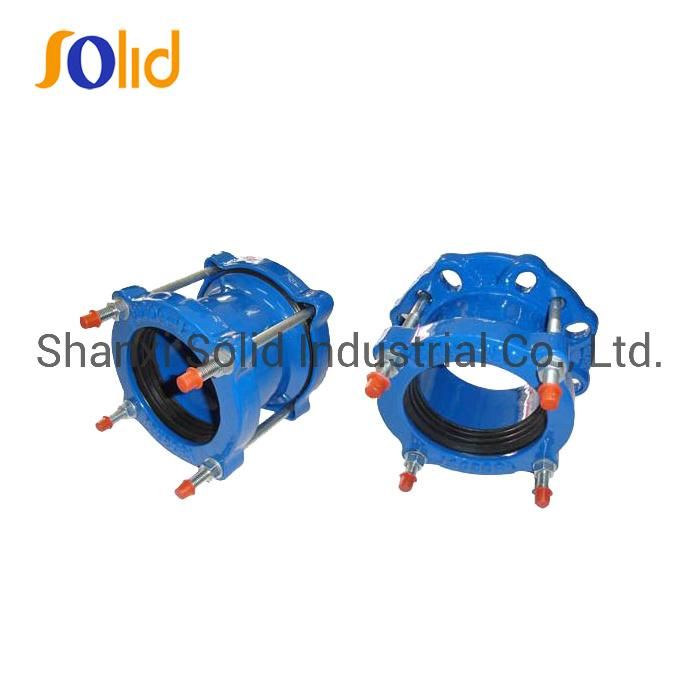

Ductile iron universal joint
1) The Universal Flanged Adaptors and Couplings are designed for pipelines, As a wide tolerance system
2) It will fit most standard pipe materials and therefore dramatically reduces the number of dedicated Flanged Adaptors and couplings which need to be stocked for maintenance purposes.
3) It is suitable for steel, GRP, PVC, PE, Ductile Iron, Cast Ironand Asbestors Cement. When connecting PE pipes, It is important that pipe inserts are fitted to the PE pipes.

1) All the flanged adaptors are assembled by " T " bolts.
2) Bolts, Nuts and Washers are in carbon steel Grade 4.8, 8.8 with zinc plated, dacromet coating or according to customer's request.
3) Body material is Ductile iron GGG500-7.
4) Fusion bonded epoxy powder coating in blue, black or red or according to customer'srequest.
5) Gaskets material: E. P. D. M., NBR or SBR.
6) Accommodate BS, DIN, ANSI flange drillings. Specification Unit Weight Sealing Ranges(mm) inches mm kgs 2" 50 3.6 59~732 1/2" 65 4.50 72~853" 80 4.83 88~1034" 100 5.51 108~1285" 125 7.74 132~1546" 150 8.32 159~1827" 175 11.30 192~2098" 200 9.95 218~23510" 250 14.50 271~28912" 300 18.62 322~34014" 350 26.00 374~39116" 400 28.85 417~43718" 450 33.40 480~50020" 500 50.00 526~54624" 600 54.10 630~650.











FAQ

1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.

4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.

5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.

6. Which price terms could accepted?
A: FOB,CIF all acceptable.
