HDPE Fittings-Flange Stub up to 1600mm with Australian Watermark& Standardmark
Jilin Songjiang Smart Joint Co., Ltd.- Standard：DIN
- Type：Welding Flange
- Material：Plastic
- Structure：Flanges
- Connection：Welding
- Sealing Surface：PE
Base Info
- Model NO.：1600mm
- Manufacturing Way：Injection
- Size：1400
- Transport Package：Pallet
- Specification：ISO 4427, AS4129, AS,NZS 4130
- Trademark：Smart Joint
- Origin：China
- HS Code：3917400000
- Production Capacity：1*40 Container,Month
Description
Basic Info.
Model NO. 1600mm Manufacturing Way Injection Size 1400 Transport Package Pallet Specification ISO 4427, AS4129, AS/NZS 4130 Trademark Smart Joint Origin China HS Code 3917400000 Production Capacity 1*40 Container/MonthProduct Description
Smart Joint developped full lines of PE flange stub from 40mm up to 1600mm with SDR11, SDR17, SDR21 and SDR26.Australian short stub end, South African short stub end, Thailand short stub end, all up to 1600mm, ASTM( USA) in both IPS and DIPS up to 36" in SDR9, SDR11, SDR17.

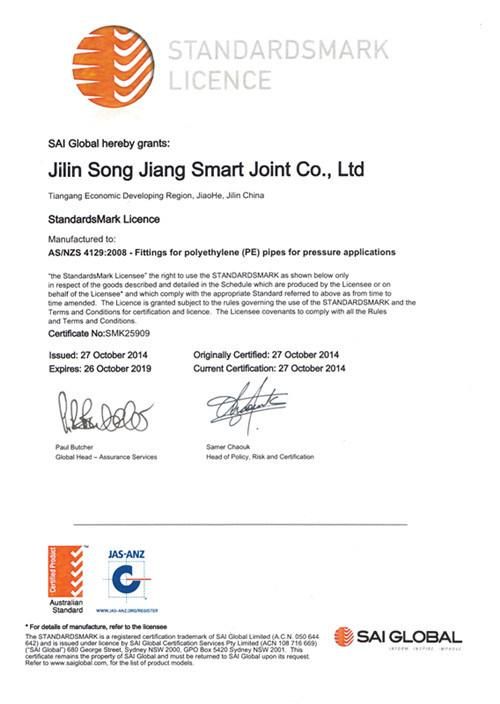

Australian stub end are certified by watermark& standardmark.
PE flange stub is used for PE pipe conneting.
With good sealing performance, easy construction, PE flange stub can protect the flanges well. It is widely adopted in water supply pipe, minning area, in particular suitable for negative pressure coal mine pipe connection.
Investment of unique euqipment for flange stub production enhances the working efficiency and solve the bubble problem during the injection.
| Code | Product Name | Size | SDR | Weight | Packing Size(mm) | pcs/box | B | L | t | A | C |
| BFFL40A | Flange Stub | 40 | 11 | 69 | 420*340*420 | 70 | 80 | 50 | 7 | 78 | 50 |
| BFFL50A | Flange Stub | 50 | 11 | 102 | 420*340*420 | 65 | 94 | 64 | 7 | 86 | 61 |
| BFFL63A | Flange Stub | 63 | 11 | 187 | 420*340*420 | 60 | 93 | 75 | 8 | 102 | 75 |
| BFFL75A | Flange Stub | 75 | 11 | 263 | 420*340*420 | 50 | 103 | 73 | 10 | 122 | 89 |
| BFFL90A | Flange Stub | 90 | 11 | 453 | 420*340*420 | 36 | 125 | 80 | 12 | 138 | 105 |
| BFFL110A | Flange Stub | 110 | 11 | 675 | 420*340*420 | 18 | 140 | 95 | 15 | 158 | 125 |
| BFFL125A | Flange Stub | 125 | 11 | 716 | 420*340*420 | 15 | 135 | 95 | 17 | 158 | 132 |
| BFFL140A | Flange Stub | 140 | 11 | 988 | 420*340*420 | 12 | 130 | 89 | 20 | 188 | 155 |
| BFFL160A | Flange Stub | 160 | 11 | 1599 | 420*340*420 | 10 | 126 | 73 | 21 | 212 | 175 |
| BFFL180A | Flange Stub | 180 | 11 | 1488 | 420*340*420 | 10 | 140 | 115 | 25 | 212 | 180 |
| BFFL200A | Flange Stub | 200 | 11 | 2791 | 420*340*420 | 4 | 174 | 113 | 27 | 268 | 232 |
| BFFL225A | Flange Stub | 225 | 11 | 2988 | 530*440*330 | 4 | 161 | 95 | 31 | 268 | 235 |
| BFFL250A | Flange Stub | 250 | 11 | 4315 | 530*440*330 | 4 | 173 | 103 | 34 | 320 | 285 |
| BFFL280A | Flange Stub | 280 | 11 | 4493 | 530*440*330 | 4 | 173 | 111 | 38 | 320 | 291 |
| BFFL315A | Flange Stub | 315 | 11 | 6231 | 530*440*330 | 2 | 175 | 133 | 43 | 370 | 335 |
| BFFL355A | Flange Stub | 355 | 11 | 8569 | 175 | 98 | 48 | 430 | 373 | ||
| BFFL400A | Flange Stub | 400 | 11 | 11118 | 175 | 137 | 54 | 482 | 427 | ||
| BFFL450A | Flange Stub | 450 | 11 | 17875 | 175 | 63 | 61 | 585 | 514 | ||
| BFFL500A | Flange Stub | 500 | 11 | 17471 | 176 | 78 | 68 | 585 | 530 | ||
| BFFL560A | Flange Stub | 560 | 11 | 25627 | 175 | 60 | 76 | 685 | 615 | ||
| BFFL630A | Flange Stub | 630 | 11 | 23781 | 172 | 63 | 86 | 685 | 642 | ||
| BFFL710A | Flange Stub | 710 | 11 | 35289 | 175 | 45 | 97 | 800 | 737 | ||
| BFFL800A | Flange Stub | 800 | 11 | 44787 | 173 | 32 | 92 | 905 | 840 | ||
| BFFL63B | Flange Stub | 63 | 17 | 153 | 420*340*420 | 60 | 93 | 75 | 8 | 102 | 75 |
| BFFL75B | Flange Stub | 75 | 17 | 211 | 420*340*420 | 50 | 103 | 73 | 10 | 122 | 89 |
| BFFL90B | Flange Stub | 90 | 17 | 362 | 420*340*420 | 36 | 125 | 82 | 10 | 138 | 105 |
| BFFL110B | Flange Stub | 110 | 17 | 522 | 420*340*420 | 18 | 140 | 100 | 10 | 158 | 125 |
| BFFL125B | Flange Stub | 125 | 17 | 483 | 420*340*420 | 15 | 135 | 101 | 11 | 158 | 132 |
| BFFL140B | Flange Stub | 140 | 17 | 746 | 420*340*420 | 12 | 140 | 94 | 15 | 188 | 155 |
| BFFL160B | Flange Stub | 160 | 17 | 1242 | 420*340*420 | 10 | 126 | 79 | 15 | 212 | 175 |
| BFFL180B | Flange Stub | 180 | 17 | 1085 | 420*340*420 | 10 | 140 | 124 | 16 | 212 | 180 |
| BFFL200B | Flange Stub | 200 | 17 | 2160 | 420*340*420 | 4 | 174 | 123 | 17 | 268 | 232 |
| BFFL225B | Flange Stub | 225 | 17 | 2196 | 530*440*330 | 4 | 161 | 104 | 22 | 268 | 235 |
| BFFL250B | Flange Stub | 250 | 17 | 3342 | 530*440*330 | 4 | 173 | 114 | 23 | 320 | 285 |
| BFFL280B | Flange Stub | 280 | 17 | 3219 | 530*440*330 | 4 | 173 | 125 | 24 | 320 | 291 |
| BFFL315B | Flange Stub | 315 | 17 | 4434 | 530*440*330 | 2 | 175 | 141 | 35 | 370 | 335 |
| BFFL355B | Flange Stub | 355 | 17 | 5849 | 175 | 113 | 33 | 430 | 373 | ||
| BFFL400B | Flange Stub | 400 | 17 | 7557 | 175 | 155 | 36 | 482 | 427 | ||
| BFFL450B | Flange Stub | 450 | 17 | 12062 | 175 | 92 | 40 | 585 | 514 | ||
| BFFL500B | Flange Stub | 500 | 17 | 11765 | 176 | 101 | 45 | 585 | 530 | ||
| BFFL560B | Flange Stub | 560 | 17 | 16188 | 175 | 95 | 41 | 685 | 615 | ||
| BFFL630B | Flange Stub | 630 | 17 | 15807 | 172 | 94 | 55 | 685 | 642 | ||
| BFFL710B | Flange Stub | 710 | 17 | 22873 | 175 | 85 | 57 | 800 | 737 | ||
| BFFL800B | Flange Stub | 800 | 17 | 30401 | 173 | 62 | 62 | 905 | 840 | ||
| BFFL900B | Flange Stub | 900 | 17 | 40388 | 175 | 55 | 82 | 1005 | 944 | ||
| BFFL1000B | Flange Stub | 1000 | 17 | 49354 | 170 | 44 | 90 | 1110 | 1047 | ||
| BFFL1200B | Flange Stub | 1200 | 17 | 72870 | 181 | 59 | 92 | 1330 | 1224 |
