• Model NO.：SBL
• Normal Pressure：Class 150-Class 2500
• Structure.：Y Type Strainer,High Precision Filter, Bag Housing
• Port Size：Nps1,2"-24"
• Working Temperature：-50-480ºC
• Drain：Plug,Valve
• Filter Material：SS304, SS316,Sintered Mesh
• Accuracy：>0.5μm
• Working Pressure：0-900#
• Body Material：Steel,Stainless Steel,Cast Iron,etc
• Flange Standard：JIS,ANSI,DIN
• Paint：Custom-Made
• Transport Package：Wooden Case or Carton
• Specification：CE, ROHS, SGS, GMP
• Trademark：Tianjin U-ideal Instrument
• Origin：Tianjin, China
• HS Code：8421219990
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. SBL Normal Pressure Class 150-Class 2500 Structure. Y Type Strainer,High Precision Filter, Bag Housing Port Size Nps1/2"-24" Working Temperature -50-480ºC Drain Plug/Valve Filter Material SS304/ SS316/Sintered Mesh Accuracy >0.5μm Working Pressure 0-900# Body Material Steel,Stainless Steel,Cast Iron,etc Flange Standard JIS,ANSI,DIN Paint Custom-Made Transport Package Wooden Case or Carton Specification CE, ROHS, SGS, GMP Trademark Tianjin U-ideal Instrument Origin Tianjin, China HS Code 8421219990 Production Capacity 50000PCS/Year

Product Description

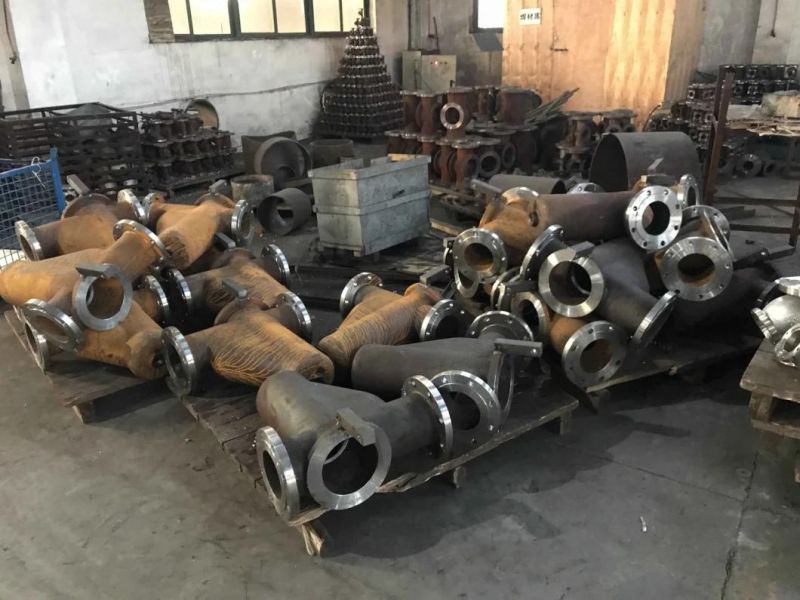

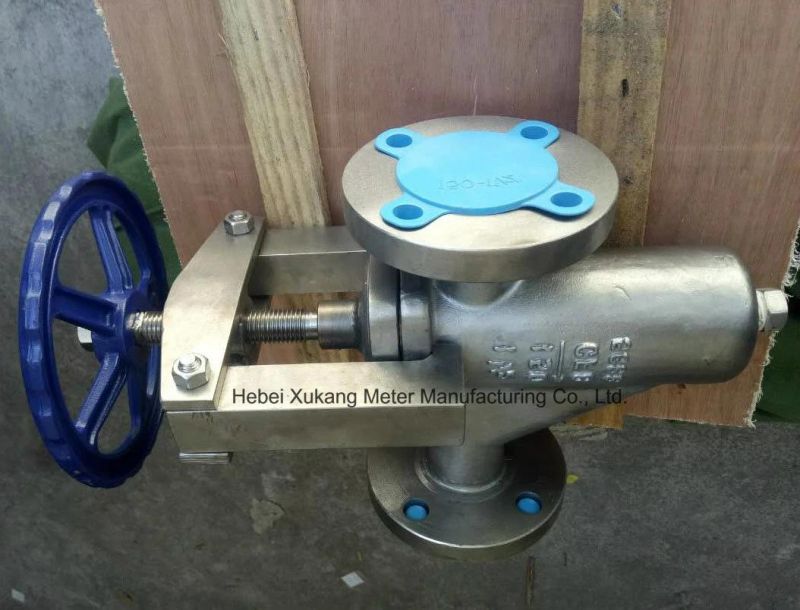

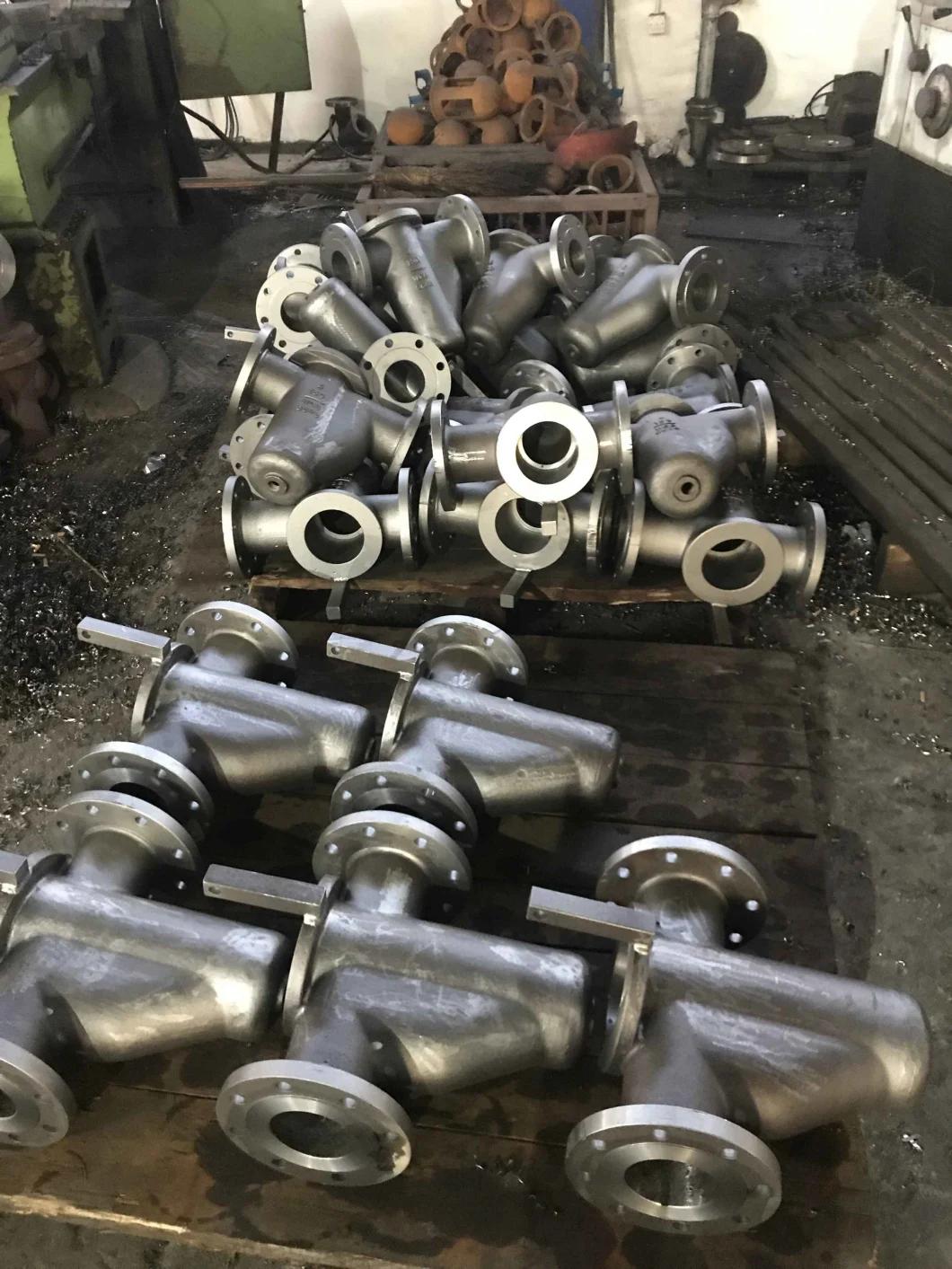

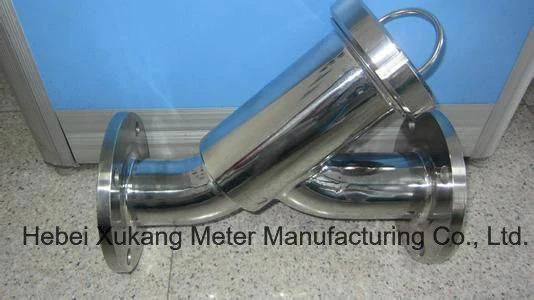

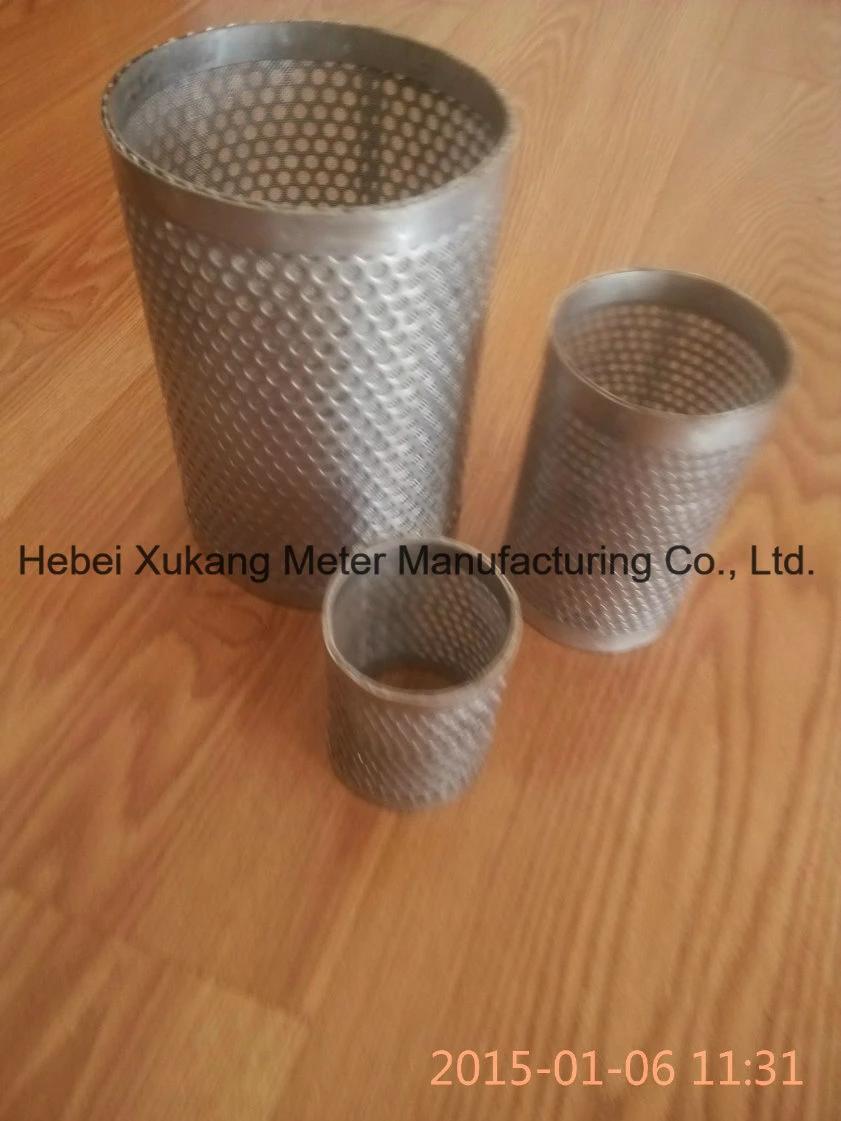

We produce high precision filter housing, bag filter, Y type strainer, Basket strainer, quick open cover strainer, sanitary strainer filter is mainly composed of takeover, director, filter blue, flange, flange cover, and fasteners, etc. When liquid through head into the blue filter, the solid impurity particles will be blocked within the blue filter, and clean fluid through the filter basket, the filter outlet. When need to be cleaned, turning the screw at the bottom and net fluid, remove the cover flange and repack after cleaning. Therefore, the use of maintenance is very convenient.

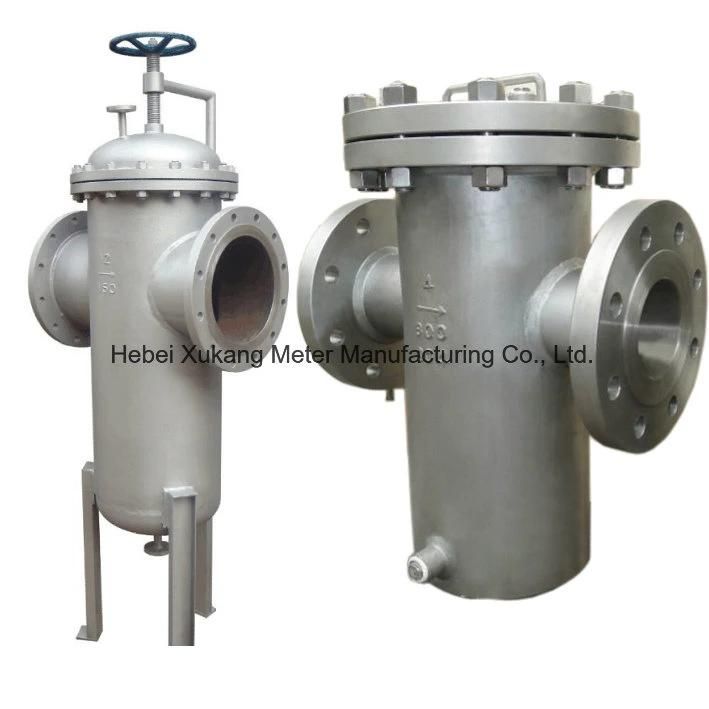

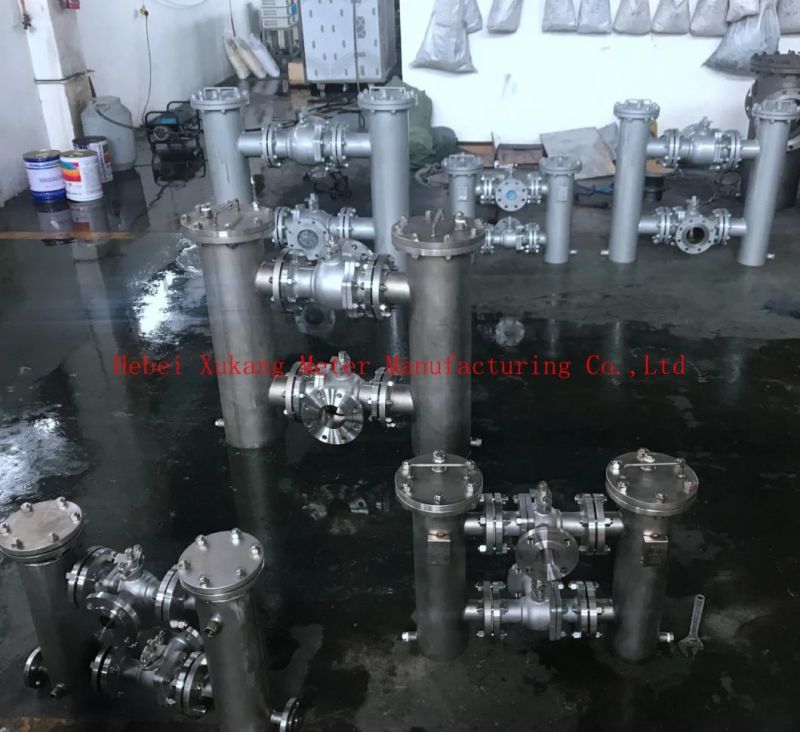

SBL Flanged Straight Through Flat-bottomed Basket Filter

ND	φ	L	H1	H2	H	Discharge Port "B"	(m2) Effective Filtration
25	76	220	160	260	480	R1/2″	0.003619
32	89	220	165	270	495	R1/2″	0.003619
40	108	280	180	300	550	R1/2″	0.005718
50	133	280	180	300	550	R1/2″	0.005718
65	133	330	220	350	650	R1/2″	0.009613
80	159	340	260	400	740	R1/2″	0.01539
100	219	420	310	470	680	R1/2″	0.02464
150	273	500	430	620	1175	R3/4″	0.04866
200	325	560	530	780	1495	R3/4″	0.07858
250	426	660	640	930	1810	R3/4″	0.12005
300	478	750	840	1200	2310	R3/4″	0.16537

SBL Flanged Straight Through End Seal Basket Filter

DN	Do	n-y	φ	L	H1	H2	H3	H	Discharge Port"B"	Effective Filtration
200	290	4-16	325	560	540	230	1070	1875	R3/4″	0.07858
250	375	4-16	426	660	650	270	1220	2170	R3/4″	0.12065
300	420	4-16	480	750	860	320	1420	2670	R3/4″	0.16537
350	460	4-16	500	800	1010	370	1680	3085	R1″	0.2225
400	500	4-16	550	840	1150	400	1850	3445	R1″	0.2916
450	550	4-16	600	960	1310	440	2050	3810	R1″	0.3642
500	640	4-16	700	1080	1440	470	2210	4145	R1″	0.4587

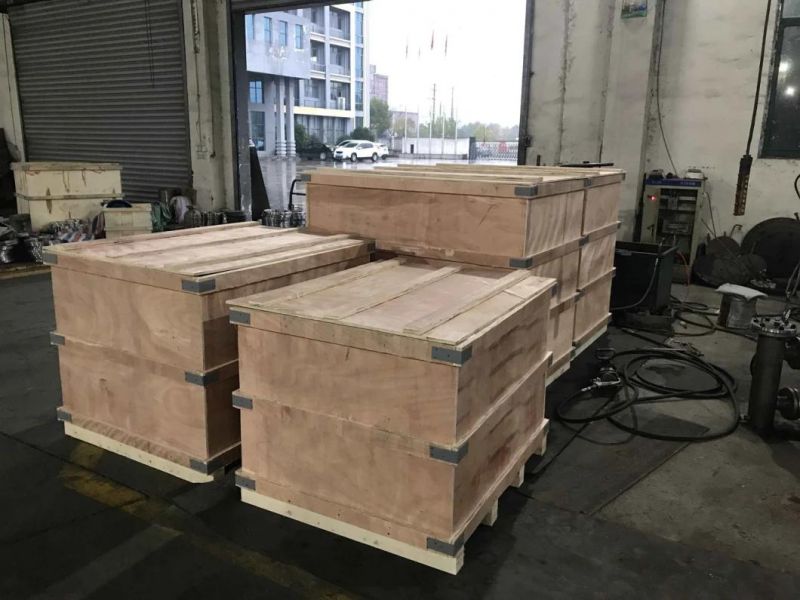

Package
