T-Bolt Spring Loaded Clamps
Yuyao Hengwei Hose Clamp Co., Ltd.- Standard：DIN, ANSI
- Material：Stainless Steel
- Connection：Female
- Surface Treatment：Plated Copper
- Head Type：Round
- Trademark：HWKG
Base Info

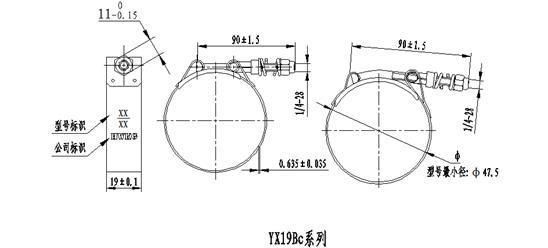

- Model NO.：TX19Bc,
- Origin：Ningbo
Description
carton size cminch Φmm 34 1 15/16"-2 1/4" 50-58 - - 40 2 1/8"-2 7/16" 54-62 - - 46 2 5/16"-2 5/8" 59-67 - - 52 2 1/2"-2 13/16" 64-72 - - 58 2 11/16"-3" 69-77 - - 64 2 7/8"-3 3/16" 73-81 - - 70 3 1/16"-3 3/8" 78-86 - - 76 3 1/4"-3 9/16" 83-91 - - 82 3 7/16"-3 3/4" 88-96 - - 88 3 5/8"-3 15/16" 92-100 - - 94 3 13/16"-4 1/8" 97-105 - - 100 4"-4 5/16" 102-110 - - 108 4 1/4"-4 9/16" 108-116 - - 116 4 1/2"-4 13/16" 114-122 - - 124 4 3/4"-5 1/16" 121-129 - - 132 5"-5 5/16" 127-135 - - 140 5 1/4"-5 9/16" 134-142 - - 148 5 1/2"-5 13/16" 140-148 - - 156 5 3/4"-6 1/16" 146-154 - - 164 6"-6 5/16" 153-161 - - 172 6 1/4"-6 9/16" 159-167 - - 180 6 1/2"-6 13/16" 165-173 - - 188 6 3/4"-7 11/16" 172-180 - - 196 7"-7 5/16" 178-186 - - 204 7 1/4"-7 9/16" 184-192 - - 212 7 1/2"-7 13/16" 191-199 - - 220 7 3/4"-8 1/16" 197-205 - - 228 8"-8 5/16" 204-212 - - 236 8 1/4"-8 9/16" 210-218 - - 244 8 1/2"-8 13/16" 216-224 - - 252 8 3/4"-9 1/16" 223-231 - - 260 9"-9 5/16" 229-237 - - 268 9 1/4"-9 9/16" 235-243 - - 276 9 1/2"-9 13/16" 242-250 - - 284 9 3/4"-10 1/16" 248-256 - - 292 10"-10 5/16" 254-262 - - 300 10 1/4"-10 9/16" 261-269 - - 308 10 1/2"-10 13/16" 267-275 - - 316 10 3/4"-11 1/16" 273-281 - - 324 11"- 11 5/16" 280-288 - - 332 11 1/4"-11 9/16" 286-294 - - 340 11 1/2"-11 13/16" 292-300 - -
