Pn10 Pn16 150lbs Rubber EPDM NBR Flange Gasket
Baoding Hengda Flange Manufacture Co., Ltd.- Type：Flat Gasket
- Material：Rubber
- Combination Washer Structure：A Type
- Combination Washer Packaging：All Inclusive
- Spring Washer Type：Standard
- Transport Package：Nylon Bag
Base Info
- Specification：DN50-DN600
- Trademark：DEYE
- Origin：China
- Production Capacity：100000PCS,Month
Description
Basic Info.
Specification DN50-DN600 Trademark DEYE Origin China Production Capacity 100000PCS/MonthProduct Description

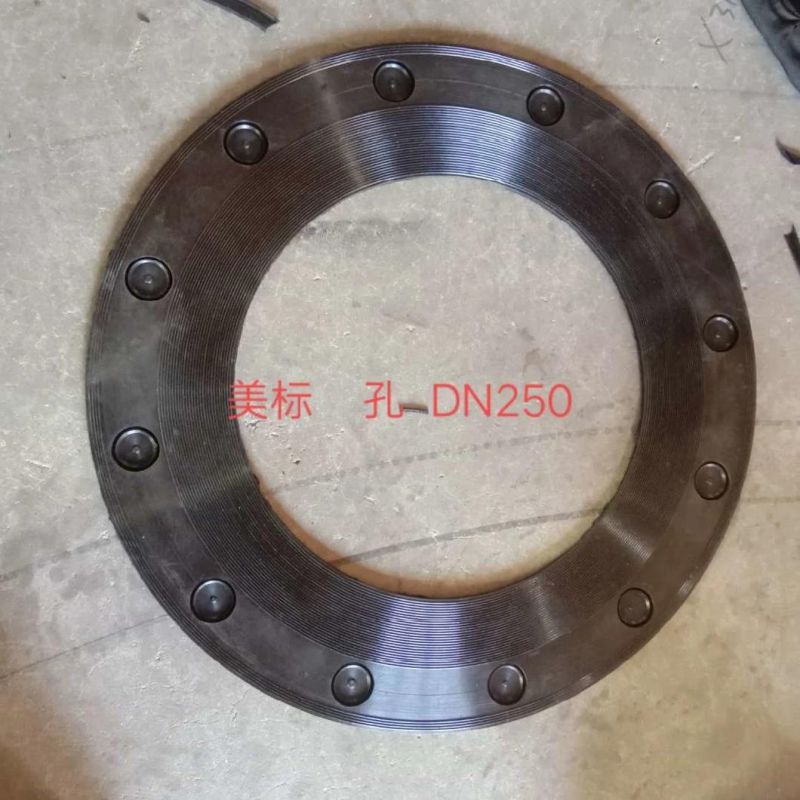

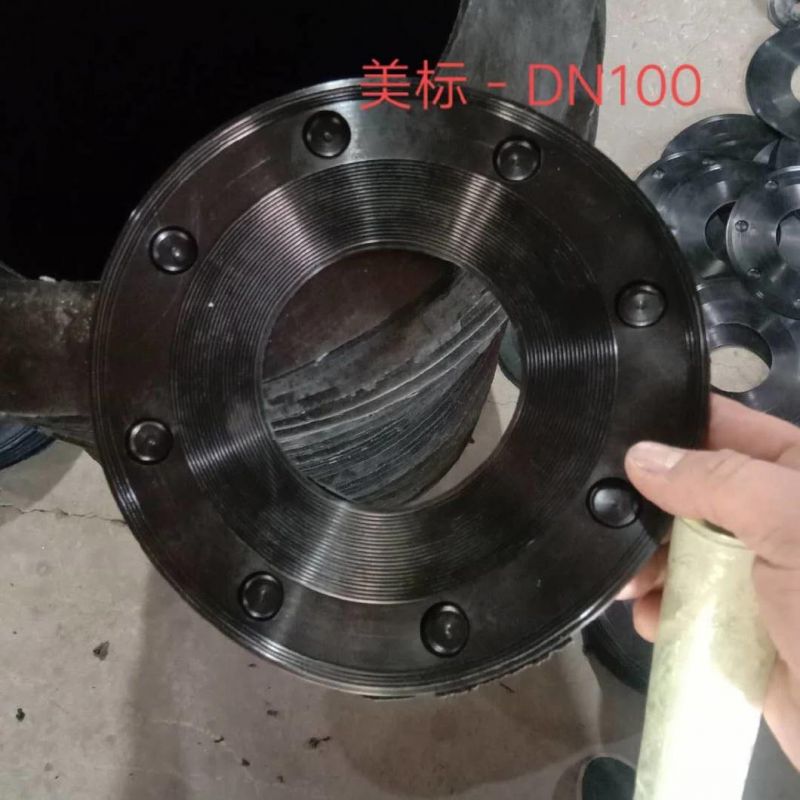

Rubber GasketsRubber Gaskets Rubber Gasket is made from rubber sheet by mechanical or directly molding and vulcanized from raw rubber. In the beginning, Rubber Gaskets is made of nature rubber. However, it has been replaced by variety of high temperature resistance. Mineral oil resistance and corrosion resistance. Rubber Gasket performs flexible, good anti-permeability and easy processing. It exhibits excellent sealing performance even in low surface quality flange. Table 13 lists the specifications of Rubber Gaskets.
| Materials Item | NBR | Noeprene | EPDM | Silicon Rubber | Fluorine Rubber |
| Density ( g/cm3) | 1.4-1.7 | 1.4-1.7 | 1.4-1.6 | 1.4 | 2.0 |
| Short-term Operating temperature(ºC) | 170 | 100 | 150 | 175 | 315 |
| Operating temperature(ºC) | 120 | 120 | 140 | 150 | 200 |
| Airtight | Good-Excellent | Good-Excellent | Good-Excellent | Commonly | Excellent |
