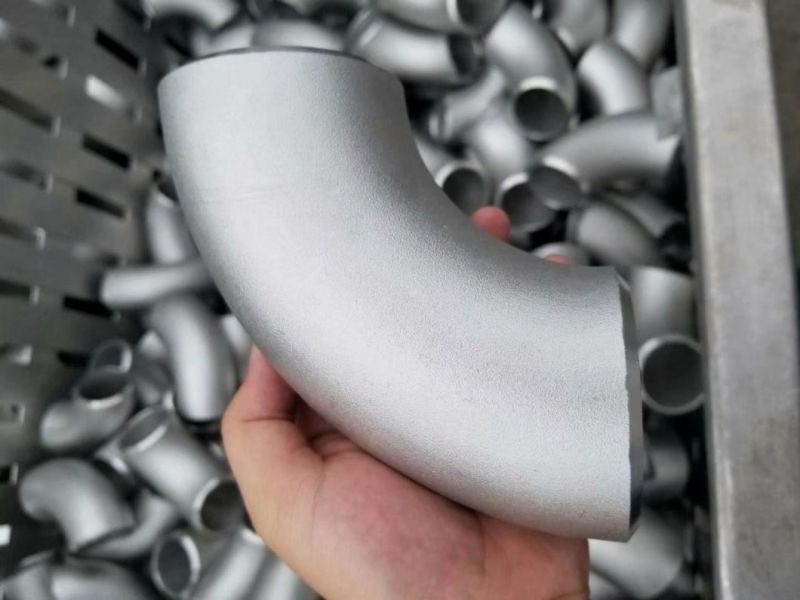

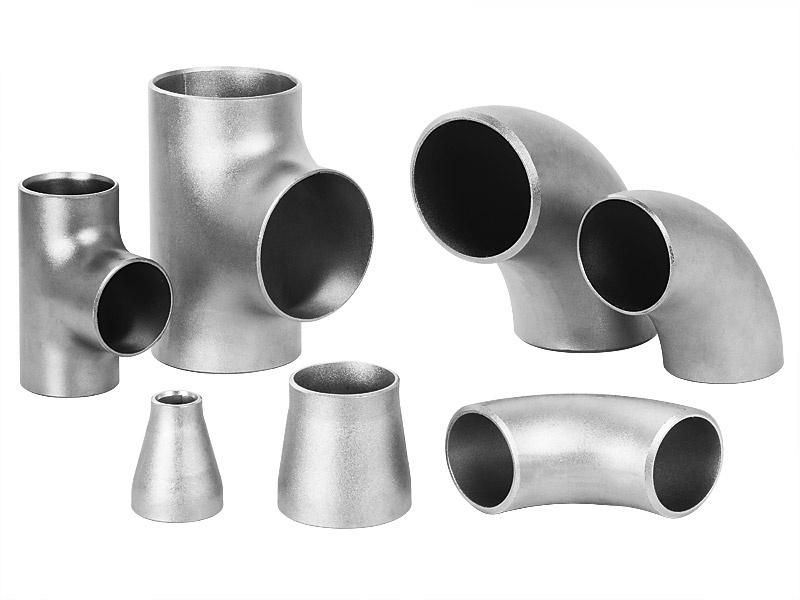

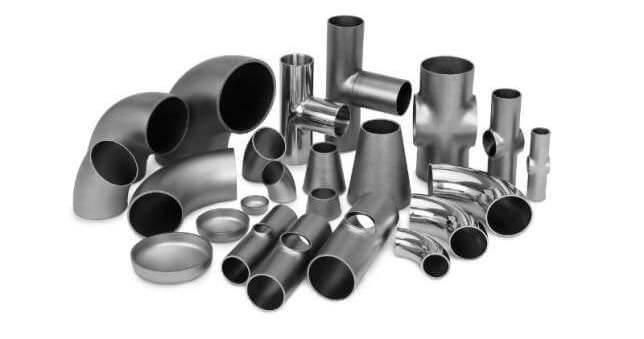

Stainless Steel 4 Inch Sch40 80 Butt Welded ASTM A403 Wp304 316L Elbow Tee Reducer Cap Pipe Fittings
Guangzhou Kingmetal Steel Industry Co., Ltd.- Standard：DIN, ANSI, GB, JIS, BSW
- Material：Stainless Steel
- Connection：Welding
- Surface Treatment：Pickling
- Head Type：Round
- Delivery Time：15-30 Days After Down Payment
Base Info
- Model NO.：EYPF
- Connection Type：Welded,Threaded,Bw,Sw
- Thickness：Sch5s-Schxxs
- Alloy or Not：Non Alloy
- Standard or Not：Standard
- Secondary or Not：Non Secondary
- Price Term：Fob,CIF,CNF
- Payment：L,C,T,T

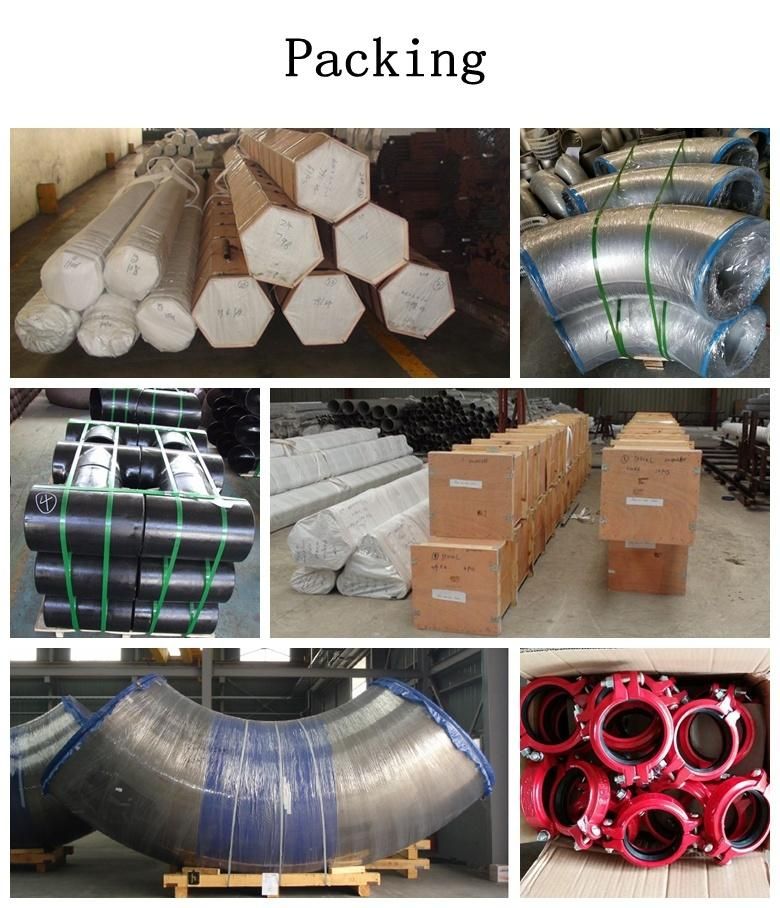

- Transport Package：in Wooden Case or Pallet or as Requested
- Specification：1,2"-72"
- Trademark：Kingmetal
- Origin：China
- HS Code：730793
- Production Capacity：3500000 Pieces Per Month
Description
Basic Info.
Model NO. EYPF Connection Type Welded,Threaded,Bw,Sw Thickness Sch5s-Schxxs Alloy or Not Non Alloy Standard or Not Standard Secondary or Not Non Secondary Price Term Fob,CIF,CNF Payment L/C,T/T Transport Package in Wooden Case or Pallet or as Requested Specification 1/2"-72" Trademark Kingmetal Origin China HS Code 730793 Production Capacity 3500000 Pieces Per MonthProduct Description
Standard:ANIS B16.5, ANSI B16.47,DIN2615,DIN2616,BS4504,En 10253-2, JISB2311, 2312, DIN2605,
DIN2617, ASME/ANSI B16.9, GB/T12459, GB/T13401, SH3408, SH3409, HG/T21635, HG/T21631, MSS SP-43, JIS B2313,etc.
Material:
Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6,etc
Stainless steel(ASTM A403 WP304,304L,316,316L,321,etc
Alloy steel(ASTM A234 WP12,WP11,WP22,WP5,WP9,WP91,etc
Inconel: ASTM B564 UNS N06625, N06600, N08800,N08825,etc.
Applications: Petroleum, chemical, nuclear, power, ship-building, papermaking, food, water, gas, medicine, construction industry etc.
Surface treatment:Mirror polishing, semi-polish, matt finishing, sandblast or pickling, or as requested.
Chemical composition
| Grade | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Ni ≤ | Cr ≤ |
| 201 | 0.12 | 0.75 | 7.00 | 0.045 | 0.045 | 1.00-1.28 | 13.70-15.70 |
| 202 | 0.15 | 1.00 | 2.25 | 0.045 | 0.045 | 4.07-4.17 | 14.00-16.00 |
| 304 | 0.08 | 0.75 | 2.00 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
| 304L | 0.035 | 0.75 | 2.00 | 0.045 | 0.03 | 8.00-13.00 | 18.00-20.00 |
| 309 | 0.15 | 0.75 | 2.00 | 0.045 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 310S | 0.08 | 1.50 | 2.00 | 0.045 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 316 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316L | 0.035 | 0.75 | 2.00 | 0.045 | 0.03 | 10.00-15.00 | 16.00-18.00 |
| 321 | 0.04-0.10 | 0.75 | 2.00 | 0.045 | 0.03 | 9.00-13.00 | 17.00-20.00 |
| 405 | 0.08 | 0.75 | 1.00 | 0.045 | 0.03 | 0.06 | 11.5-13.5 |
| 409 | 0.089 | 1.00 | 1.00 | 0.045 | 0.05 | 0.06 | 10.50-11.75 |
| 410 | 0.15 | 0.75 | 1.00 | 0.045 | 0.03 | 0.06 | 11.5-13.5 |
| 420 | 0.16-0.25 | 1.00 | 1.00 | 0.040 | 0.03 | 0.06 | 12.00-14.00 |
| 430 | 0.12 | 0.75 | 1.00 | 0.045 | 0.03 | 0.06 | 16.00-18.00 |
| 904L | 0.02 | 1.0 | 2.00 | 0.045 | 0.03 | 23.00-28.00 | 19.00-23.00 |
